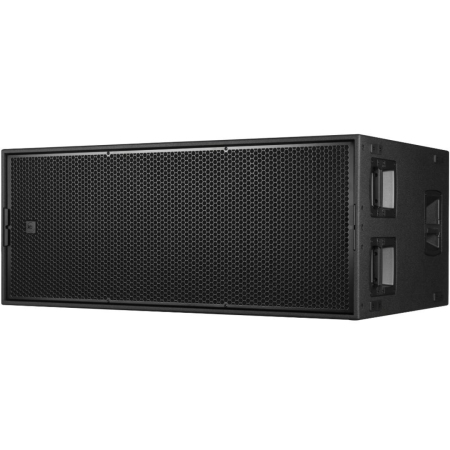

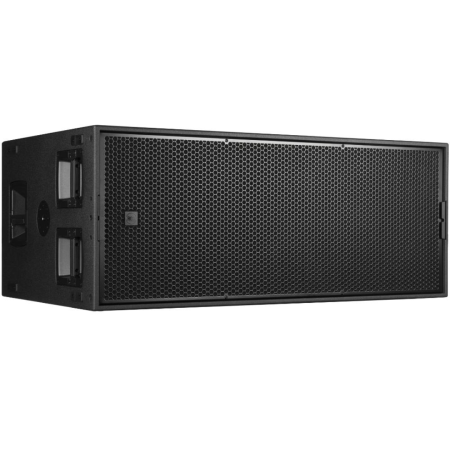

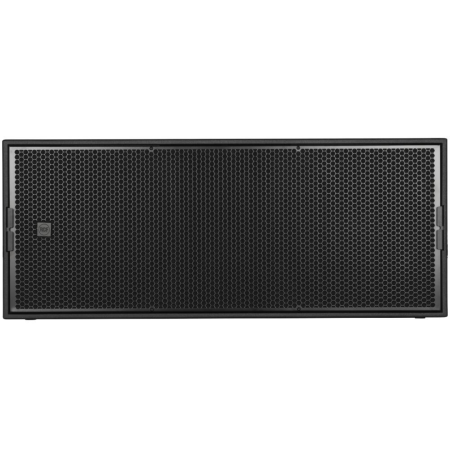

High-output dual 19-inch powered subwoofer for touring systems
RCF SUB 9029AS is a dual 19" active subwoofer that delivers up to 142 dB Max SPL from an 8000 W Class-D amplifier, pairing road-ready durability with fast, precise low-frequency performance for modern tours, rentals, and large-format installs.
RCF SUB 9029AS Competitive Differences
- Massive headroom: up to 142 dB Max SPL with 8000 W Class-D power
- Contactless setup via RDTap — configure even when unpowered
- RDNet networked control with EQ, delay, polarity, and cardioid tools
- ACE (Advanced Crossover Engine) presets for seamless RCF top pairing
- Tour-grade, weather-resistant plywood cabinet with durable Polyurea finish

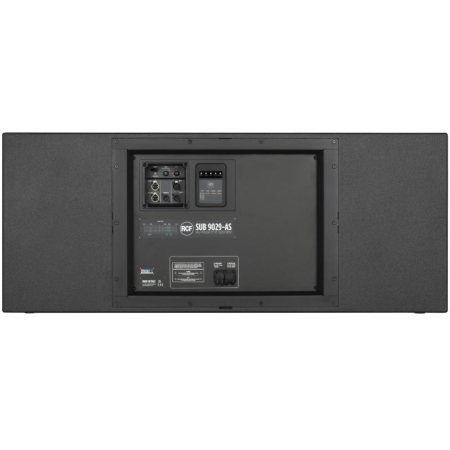

- I/O panel magnetic rain cover included; powerCON TRUE1 TOP AC connectors
- Detachable front cart compatibility for fast load-in/out (cart sold separately)
- High-excursion neodymium 19" transducers with lightweight aluminum core coils
- BMC (Bass Motion Control) for extended low end without phase-shifting HPFs
- M20 pole mounts on top and side; ergonomic rubber-grip handles
- Convection/forced cooling, advanced safety limiter, low-distortion stereo input stage
RCF SUB 9029AS Description
The SUB 9029AS is engineered for arena-level output while preserving clarity and punch. Its dual 19" neodymium woofers and ultra-efficient Class-D amplifier deliver deep, articulate bass with ultra-fast transient response. The cabinet is tour-ready, featuring weather-resistant construction, a rugged Polyurea finish, and a magnetic rain cover that protects the connection panel in challenging conditions.

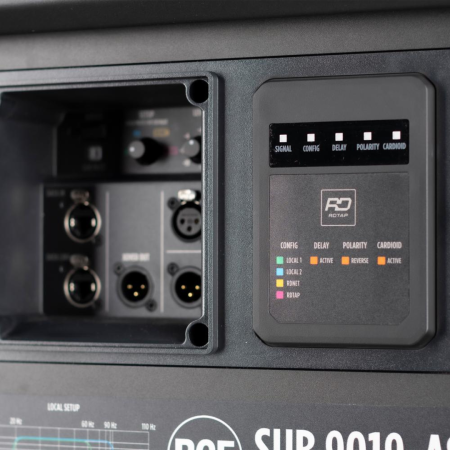

System tuning is streamlined. Use RDTap for contactless, offline configuration—tap your smartphone to the RDTap logo to transfer presets, EQ, delay, and alignment, even when the unit is unpowered. For full-scale deployments, RDNet provides comprehensive monitoring and DSP control across entire systems, including cardioid configurations and time alignment.
RCF’s ACE (Advanced Crossover Engine) aligns time and phase beyond the crossover region for tighter sub-to-top integration with FiRPHASE-enabled loudspeakers. Meanwhile, BMC (Bass Motion Control) maps woofer behavior to limit over-excursion without the phase shift of conventional high-pass filters, extending low-frequency linearity.
Built for speed and safety on the road, the SUB 9029AS supports a detachable front cart (sold separately), features multiple M20 mounts for flexible deployment, and integrates with a modular suspension kit for flown arrays and cardioid stacks.
SUB 9029AS Features
- Up to 142 dB Max SPL
- 8000 W Class-D amplification

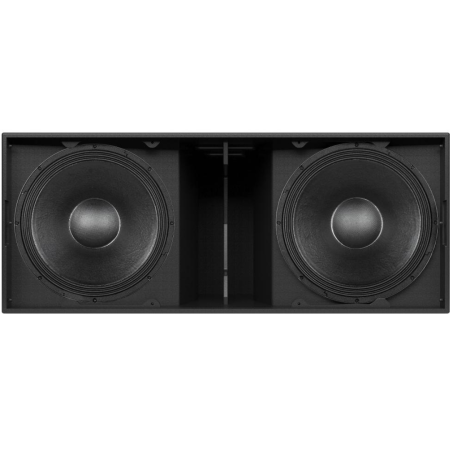

- Dual 19" high-excursion precision transducers (neodymium)
- RDTap contactless configuration (offline/unpowered)
- RDNet networked control and monitoring
- ACE crossover presets for RCF speakers
- BMC, EQ, Delay, Polarity, and Cardioid options
- Advanced stereo input stage with low distortion and safety limiter
- Detachable front cart compatibility (sold separately)
- Weather-resistant, tour-grade plywood cabinet with Polyurea finish
- Magnetic rain cover for I/O panel (included)
- Power connections: powerCON TRUE1 TOP In/Out
- M20 pole mounts on top and side

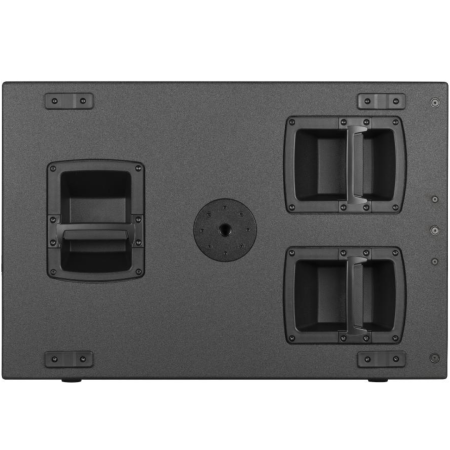

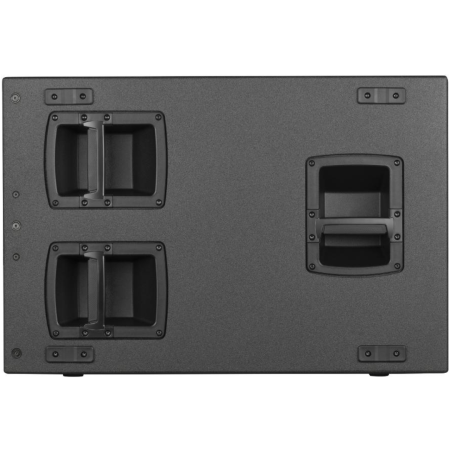

- Ergonomic handles with rubber grips
- Convection/forced cooling
SUB 9029AS Specifications
- Frequency Response: 25 Hz – 200 Hz
- Maximum SPL @1 m: 142 dB
- Transducers: 2 × 19" neodymium woofers, 4.0" voice coils
- Input Signal: Balanced / Unbalanced
- Input Connectors: XLR, RDNet etherCON
- Output Connectors: XLR, RDNet etherCON
- Input Sensitivity: −2 dBu / +4 dBu
- DSP/Controls: MUTE, VOL, PRESETS, RDTAP; RDNet onboard
- Protections: Thermal; Soft Limiter
- Total Power: 8000 W Peak
- Cooling: Convection / Forced
- AC Connections: powerCON TRUE1 TOP In/Out
- Cabinet Material: Plywood; Polyurea finish
- Hardware: 2 × M20 pole-mount accessories
- Handles: 3 per side
- Grille: Steel with cloth backing
- Color: Black
- Dimensions (H × W × D): 20.98 in × 51.57 in × 30.91 in (533 mm × 1310 mm × 785 mm)
- Net Weight: 205.03 lb (93 kg)
- Shipping Dimensions (H × W × D): 22.44 in × 32.68 in × 53.15 in (570 mm × 830 mm × 1350 mm)
- Shipping Weight: 216.05 lb (98 kg)
What's In The Box
- RCF SUB 9029AS
- Magnetic rain cover for I/O panel
RCF SUB 9029-AS
(RCF 13000907)
