Wireless Microphone Antenna Distribution Bundle
RF Venue DFINDISTRO4 is a complete antenna distribution system designed for wireless microphone setups requiring reliable, high-performance RF signal management. Ideal for houses of worship, broadcast, live sound, and AV installations, this all-in-one bundle reduces dropouts, declutters receiver racks, and provides clean, consistent power and signal distribution to up to four wireless mic receivers.
RF Venue DFINDISTRO4 Competitive Differences
- Includes patented cross-polarized Diversity Fin antenna to reduce signal dropouts
- Supplies both RF and DC power to up to 4 receivers
- Includes premium 25' RG8X low-loss coaxial cables
- Cascade port supports a 5th receiver or additional DISTRO4 units
RF Venue DFINDISTRO4 Description
The
RF Venue DFINDISTRO4 bundle is a turnkey RF management solution designed to optimize your wireless microphone system. At the core is the DISTRO4, a full-rack 1RU UHF antenna distribution unit that routes RF signal from a pair of antennas to four wireless receivers while also delivering regulated 12V DC power—eliminating the need for external power supplies for each receiver. Its wide operating bandwidth of 470–952 MHz ensures compatibility with most major wireless brands.
Also included is the DFIN Diversity Fin antenna, a patented cross-polarized LPDA and dipole hybrid that significantly reduces audio dropouts and improves performance by capturing both vertically and horizontally polarized signals. With multiple mounting thread options and a rugged cloth cover, the antenna is equally at home on-stage, in production environments, or permanent installs.
To complete the setup, the kit comes with two 25-foot RG8X coaxial cables, along with BNC jumpers and DC jumpers for connecting up to four channels right out of the box. Whether you're building a new wireless system or upgrading your current rig, this bundle simplifies setup and enhances reliability.
Model Features
- DISTRO4 supports up to 5 receivers with cascade port
- DFIN antenna combines LPDA and dipole designs for improved reception
- Regulated internal power supply (no wall wart)
- Rackmount 1RU metal chassis for durable installs
- Dual polarization reception with Diversity Fin antenna
Model Specifications
- Operating Frequency: 470–952 MHz (DISTRO4), 470–698 MHz (DFIN)
- Max Channels: 4 powered, 1 cascaded
- Power Supply: 2000mA internal (DISTRO4)
- Rack Size: 1 RU
- Cable Length: 25 ft (7.6 m)
- UPC (DISTRO4): 718122341313
- UPC (DFIN): 718122342013
- UPC (RG8X Cable): 718122340316

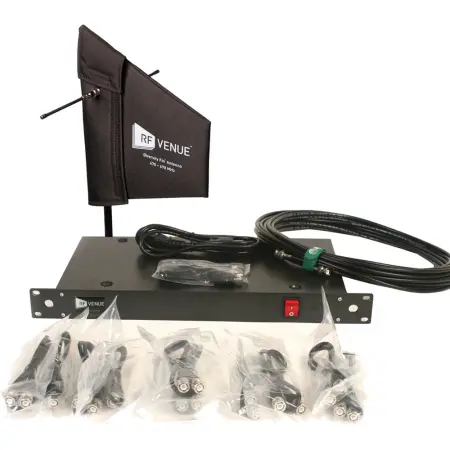

What's In The Box
- DISTRO4 Antenna Distribution System
- Black Diversity Fin Antenna with padded cloth cover
- (10) BNC jumper cables
- (4) DC power jumper cables
- (2) 25 ft RG8X low-loss coaxial cables
- AC power cable
- Mounting hardware (stand or wall bracket, model dependent)
RF Venue 4-Channel Antenna Distributor
(RF Venue DISTRO4, RG8X, Diversity Fin Antenna with Stand)
