Wireless PA audio system for multi-zone coverage
The
RF Venue RF-PA-KIT is a scalable, high-fidelity wireless PA audio extension system designed to eliminate the hassle of long cable runs and network complexities. Ideal for lobbies, patios, green rooms, breakout spaces, and remote zones, this system delivers consistent analog FM stereo sound over the 470 to 506 MHz UHF band—indoors or outdoors. Perfect for mobile DJs, production companies, AV integrators, and municipal events, it offers fast setup, low-maintenance operation, and rugged build quality.
RF Venue RF-PA-KIT Competitive Differences
- Reliable wireless FM transmission on UHF (470–506 MHz) band
- Includes 1RU stereo or dual-mono transmitter and two IP44-rated receivers
- Supports up to 800ms adjustable delay per receiver for perfect sync
- Scalable—add unlimited receivers without extra networking or software
- Quick setup with minimal cabling—no IT or network switches needed
- Audio pass-through allows integration into existing signal chains
- Designed for tough touring and rental environments
RF Venue RF-PA-KIT Description
The
RF Venue RF-PA-KIT is a complete wireless PA extension solution built for real-world applications where long cable runs or complex network-based systems are not practical. With robust analog FM stereo transmission in the 470 to 506 MHz UHF band, this kit delivers full-range sound to secondary zones such as lobbies, green rooms, satellite bars, and patios—indoors or outdoors.
Each receiver includes an onboard delay of up to 800ms, enabling precise timing between zones and eliminating echo or phase issues. The IP44-rated rugged housing of the receivers ensures durability in field use, making them ideal for touring or temporary outdoor events. You can scale the system by simply adding more receivers—no need for extra network configuration or software.
The transmitter features stereo or dual mono outputs in a single rack unit (1RU) format, keeping your rig compact and manageable. With front-panel controls and a true plug-and-play setup, it requires no software, apps, or network setup. Audio pass-through functionality ensures continuous signal flow, even if the transmitter is powered off.
RF-PA-KIT Features
- Wireless PA audio extension for remote audio zones
- Analog FM stereo transmission in the 470–506 MHz UHF band
- 1RU transmitter supports stereo or dual mono operation
- Two rugged, IP44-rated receivers included
- Onboard delay per receiver: up to 800ms
- Unlimited receiver scalability without network infrastructure
- Audio pass-through on transmitter for seamless integration
- Front-panel controls—no software or apps needed
- Fast deployment and minimal cabling required
RF-PA-KIT Specifications
- Transmission Method: Analog FM
- Frequency Range: 470 to 506 MHz
- Receiver Delay: Up to 800ms (adjustable)
- Transmitter Format: 1RU rackmount
- Operation Mode: Stereo or dual mono
- Receiver Rating: IP44 (weather-resistant)
- Power: AC powered
- Compatibility: Indoor and outdoor use
- Dimensions (Transmitter): Standard 19" rackmount, 1RU height
- Weight (Transmitter): Approx. 5 lbs (2.3 kg)
What's In The Box

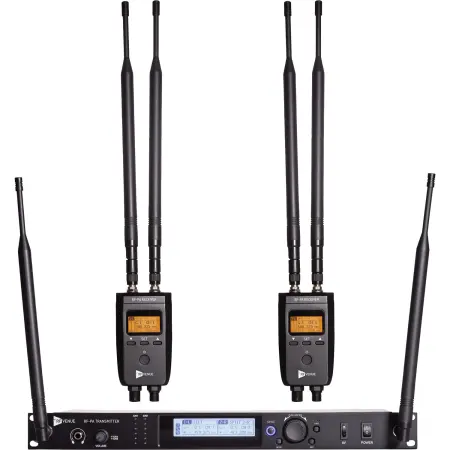

- 1 x RF Venue 1RU stereo/dual mono transmitter
- 2 x IP44-rated wireless receivers
- Power cables and mounting hardware
- User manual
RF-Venue RF-PA-KIT
(RF Venue PA Kit Wireless Transmitter and Receivers)
