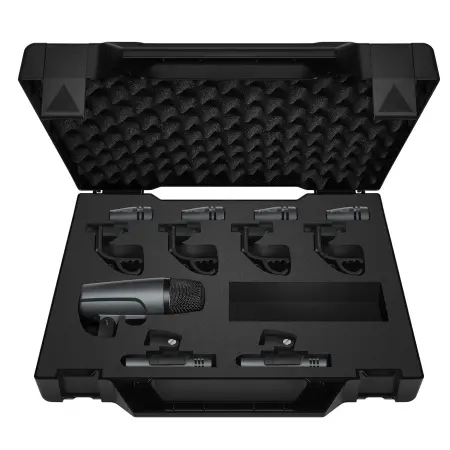

E 600 SERIES DRUM CASE

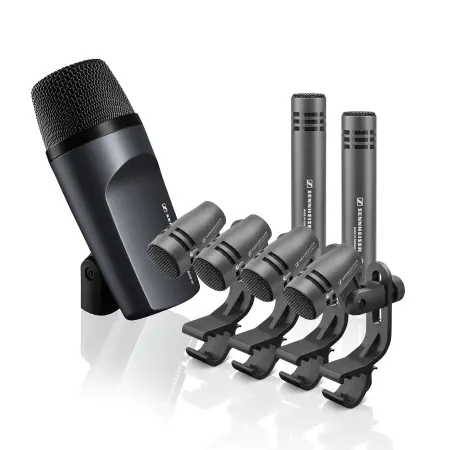

All you need for a powerful drum performance in a heavy duty case for optimal protection: 1x e 602-II, 4x e 604, 2x e 614.
All you need for a powerful drum performance in a heavy duty case for optimal protection. Includes 1x e 602-II, cardioid instrument microphone for bass drums, 4x e 604, cardioid microphone for snare and tom-tom, and 2x e 614, super-cardioid, permanently polarized condenser microphone for cymbal and overhead.
e 614: for demanding instrument recordings, and performances that produce extended frequencies, high SPL handling and transient response. For woodwind, strings, and home recording
e 604: for toms, snares, and percussion, clips-on quickly and easily wherever you choose. Tough, reinforced housing, and clamp
602-II: for bass drums, bass guitar cabs and tubas. Solid, lightweight, and easy to position. For studios, clubs, rehearsal rooms, smaller gigs, or for home recording.
What's in the Box
2x e 614, super-cardioid, permanently polarized condenser microphone for cymbal and overhead
1x e 602-II, cardioid instrument microphone for bass drums
4x e 604, cardioid microphone for snare and tom-tom
---

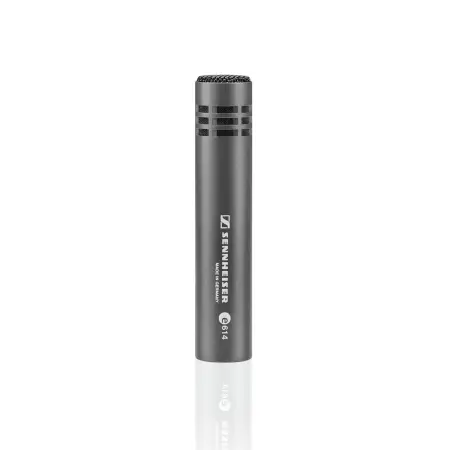

e 614
Dimensions
Ø 20mm, L = 100mm
Connector
XLR-3
Frequency response
40 - 20000 Hz
Max. sound pressure level
139 dB/SPL
Transducer principle
pre-polarised condenser microphone
Weight
93 g
Pick-up pattern
super-cardioid
Sensitivity in free field, no load (1kHz)
3 mV/Pa = - 50dB (0 dB = 1 V/Pa)
Nominal impedance
50 Ω
Min. terminating impedance
1000 Ω
Phantom powering
12 – 52 V / 3 mA
Equivalent noise level
24 dB(A)
Equivalent noise level weighted as per CCIR
35 dB
---

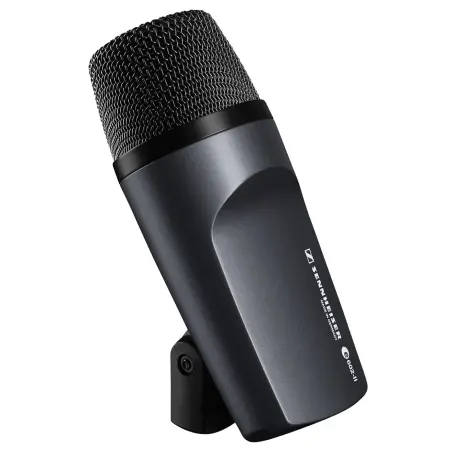

602 ii
Dimensions
Ø 60 x 153 mm
Connector
XLR-3
Transducer principle (Microphone)
dynamic
Frequency response
20 - 16000 Hz
Weight
318 g
Pick-up pattern
cardioid
Sensitivity in free field, no load (1kHz)
0,25 mV/Pa; (50 Hz) 0,9 mV/Pa
Nominal impedance
350 Ω
Min. terminating impedance
1000 Ω
---

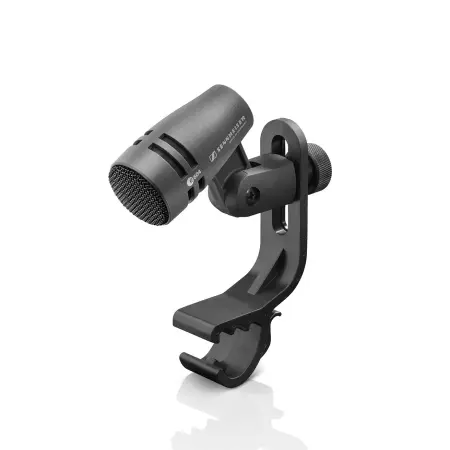

e 604
Dimensions
Ø 33 x 59 mm
Connector
XLR-3
Frequency response (Microphone)
40 - 18000 Hz
Transducer principle (Microphone)
dynamic
Weight
60 g
Pick-up pattern
cardioid
Sensitivity in free field, no load (1kHz)
1,8 mV/Pa
Nominal impedance
350 Ω
Min. terminating impedance
1000 Ω
Weight w/o cable
60 g
