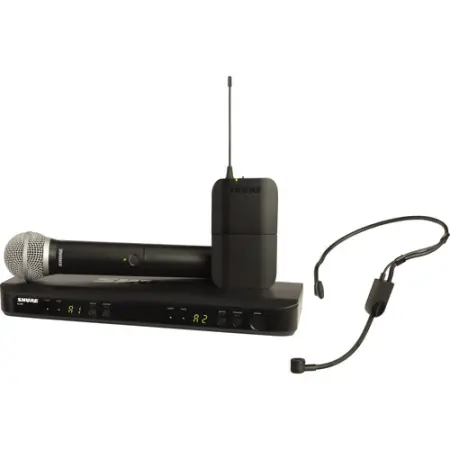

Shure BLX1288/P31-H11
$599.00
The Wireless Combo System with PG58 and PGA31 combines simple setup and an intuitive interface for performance you can trust in. The comfortable headset offers maximum freedom of movement when performing or presenting. The PG58 is the most accessible wireless Shure vocal microphone for elevating sound quality.
In The Box
1 - WA371 Swivel Adapter
1 - PS24 Power Supply
1 - 31B1856 Thread Adapter
1 - windscreen
1 - clothing clip
Wireless Freedom for Two
The Shure BLX1288/CVL wireless system equips two people for wireless freedom, while offering rock-solid build quality and easy setup and operation. And thanks to Shure's cutting-edge QuickScan technology, frequency-selection hassles are a thing of the past, helping you get your show up and running that much faster. This system includes two microphones — the PGA31 headworn microphone and the BLX2/PG58 handheld mic with built-in transmitter — as well as a BLX1 bodypack transmitter for the headset mic, and the BLX88 dual-channel receiver. When you need to perform with the freedom that only wireless allows, Shure's BLX wireless systems are a smart, affordable choice. Enjoy legendary Shure sound and performance — take the stage confidently with the Shure BLX1288/CVL wireless system.
Convenient and easy to use
Providing up to 14 hours of use with two AA batteries, Shure's BLX Series transmitters let you perform with confidence that the show will go on. And when it comes to frequency selection, the live sound gurus swear by the fast, convenient frequency matching afforded by the Shure BLX's group and channel selection buttons.
Ready to rock, right out of the box
If you're ready to go wireless, Shure's BLX wireless systems are a smart, affordable choice. Take the stage confidently, backed up by Shure's legendary microphones, decades of wireless design experience, and tour-tested build quality. Available in a broad selection of bodypack and handheld configurations, BLX vocal, guitar, headset, and presenter systems are ready to rock, right out of the box.
Versatile and expandable
Shure's BLX wireless platform supports up to 12 simultaneous wireless channels (dependent on the local wireless traffic conditions), giving you room to grow as you need to add channels in the future.
SPECIFICATIONS:
Wireless Technology
Analog UHF
Number of RF Channel Frequencies
123
Included Transmitters
1 x Bodypack
1 x Handheld
Diversity
Antenna Diversity
RF Frequency Band
H11:
572 to 596 MHz
RF Bandwidth
24 MHz
RF Channel Scanning
Auto-Scan
Max Operating Range
300' / 91.4 m (Line of Sight)
Max Transmitters per Band
12
Dynamic Range
100 dBA
Receiver
Receiver Type
Tabletop
Antenna
2 x Internal, Fixed
Number of Audio Channels
2
Audio I/O
2 x XLR 3-Pin Male Balanced Output
2 x 1/4" TS Female Unbalanced Output
Audio Output Level
XLR Outputs:
-27 dBV (Mic Level)
1/4" Outputs:
-13 dBV (Instrument Level)
Frequency Response
50 Hz to 15 kHz (Dependent on Mic)
Impedance
XLR Outputs:
200 Ohms (Balanced)
1/4" Outputs:
50 Ohms (Unbalanced)
Approximate RF Sensitivity
-105 dBm
Power Requirements
AC/DC Power Adapter
AC/DC Power Adapter
12 to 15 VDC at 160 mA, Center-Positive (Included)
Display & Indicators
1 x Multi-Segment LED (Channel, Group)
2 x LED (AF Level, Sync)
Housing
ABS
Dimensions
15.3 x 1.6 x 4.6" / 388 x 40 x 116 mm
Weight
15.1 oz / 429 g
Transmitter
Transmitter Type
Bodypack
RF Output Power
10 mW
Audio I/O
1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
Muting
Off/On Switch
Auto-Level Control
No
Gain Range
-16 to +10 dB
Sync Method
Manual
Antenna
1 x Flexible Whip, Fixed (Beltpack)
Power Requirements
Battery
Battery Type
2 x AA (Included)
Approx. Battery Life
14 Hours (Alkaline)
Display & Indicators
1 x Multi-Segment LED (Channel, Group)
1 x LED (Battery Status, Power)
Housing
ABS
Dimensions
2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
Weight
2.6 oz / 75 g (without Batteries)
Microphone
Microphone Type
Headset
Sound Field
Mono
Capsule
Electret Condenser
Polar Pattern
Cardioid
Frequency Range
60 Hz to 20 kHz
SNR
66 dB
Equivalent Noise Level
28 dB
Maximum SPL
145 dB SPL
Dynamic Range
117 dB
Output Connectors
1 x TA4/Mini XLR 4-Pin Female (Lockable)
Cable Length
4.27' / 1.3 m
Operating Voltage
5 V
Weight
1.59 oz / 45 g
Transmitter 2
Transmitter Type
Handheld
RF Output Power
10 mW
Audio I/O
None
Muting
Off/On Switch
Auto-Level Control
No
Gain Range
-20 to -10 dB
Sync Method
Manual
Antenna
1 x Internal (Handheld)
Power Requirements
Battery
Battery Type
2 x AA (Included)
Approx. Battery Life
14 Hours (Alkaline)
Display & Indicators
1 x Multi-Segment LED (Channel, Group)
1 x LED (Battery Status, Power)
Housing
ABS
Dimensions
2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
Weight
7.7 oz / 218 g (without Batteries)
Microphone 2
Microphone Type
Handheld Capsule
Sound Field
Mono
Capsule
Dynamic
Polar Pattern
Cardioid
Frequency Range
50 Hz to 16 kHz
