Operates in the G50 frequency band 470 to 534 MHz

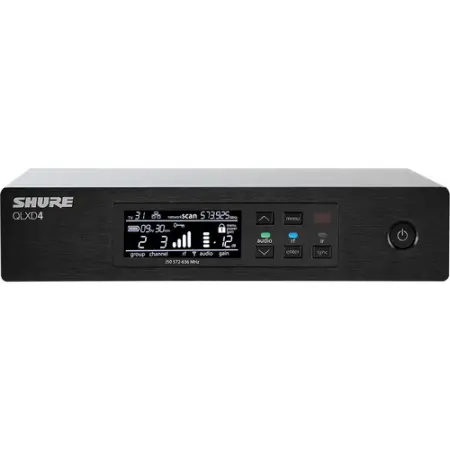

With transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD4 Digital Wireless Receiver combines professional features with streamlined setup and operation.
Automatic scanning quickly finds open frequencies, and one-touch IR sync quickly deploys them to transmitters.
Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench® software integration for remote control of receiver settings from a PC or Mac. Remote monitoring and control from iOS devices also is available via the ShurePlusâ„¢ Channels Mobile App.
Features:
64 MHz tuning bandwidth (region dependent)
More than 60 preset compatible channels per frequency band (region dependent)
Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
Digital predictive switching diversity ensures solid RF connection
AES 256-bit encryption for secure wireless transmission
Up to 60 dB of adjustable audio gain
High-contrast LCD menu and controls with lockout feature
Audio and RF LED meters with peak indicator
Detachable ½ wave antennas
Mic / line switchable XLR output
¼" Instrument output
Durable aluminum construction with brushed finish
Working Range 328' / 100 m
Note: Actual Range Depends on RF Signal Absorption, Reflection, and Interference
RF
Tuning Step Size: 25 kHz, Varies by Region
Image Rejection
>70 dB, Typical
RF Sensitivity
−97 dBm at 10-5 BER
Latency
<2.9 ms
Audio Frequency Response
QLXD1: 20 Hz to 20 kHz (±1 dB)
QLXD2: Dependent on Microphone Type
Audio Dynamic Range
System Gain @ +10: >120 dB, A-Weighted, Typical
Total Harmonic Distortion (THD) −12 dBFS Input, System Gain @ +10: <0.1%
Polarity
System Audio: Positive Pressure on Microphone Diaphragm Produces Positive Voltage on Pin 2 (with Respect to Pin 3 of XLR Output) and the Tip of the 1/4" / 6.35 mm Output
Operating Temperature Range 0 to 122°F / -18 to 50°C
Note: Battery Characteristics May Limit This Range
Storage Temperature Range -20 to 165°F / -29 to 74°C
Note: Battery Characteristics May Limit This Range
Housing Steel
RF Input Spurious Rejection: >80 dB, Typical
Connector Type: BNC
Impedance: 50 Ohms
Audio Output Gain Adjustment Range: -18 to +42 dB in 1 dB Steps
Configuration: 1/4" / 6.35 mm, Impedance Balanced (Tip=Audio, Ring=No Audio, Sleeve=Ground)
XLR: Balanced (1=Ground, 2=Audio +, 3=Audio −)
Impedance 1/4" / 6.35 mm, 100 Ohms (50 Ohms Unbalanced)
XLR: 100 Ohms
Full Scale Output: 1/4" / 6.35 mm, +12 dBV
XLR: LINE Setting= +18 dBV, MIC Setting= −12 dBV, Mic/Line Switch: 30 dB Pad
Phantom Power Protection: 1/4" / 6.35 mm, Yes
XLR: Yes
Networking Network Interface: Single Port Ethernet 10/100 Mbps
Network Addressing Capability: DHCP or Manual IP Address
Maximum Ethernet Cable Length: 328' / 100 m
Power Requirement 12 VDC @ 0.4 A, Supplied by External Power Supply (Tip Positive)
Dimensions (H x W x D) 1.63 x 7.75 x 5.94" / 41 x 197 x 151 mm
Weight 1.71 lb / 777 g
