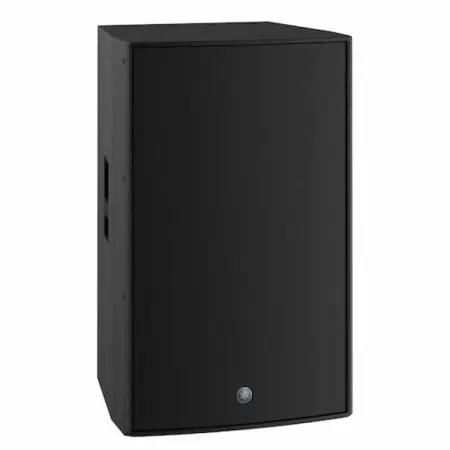

Yamaha DZR315 15" 3-Way Bi-Amped Powered Loudspeaker
The DZR315 is 3-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction—the DZR315 delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications.
Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency bass sound reproduction— the DZR delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design.
Features:
3-way powered loudspeaker with a 2" HF, an 8" MF and a 15" LF
Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
High power 2000W Class-D amplifier module
96kHz DSP and FIR filter for true high-resolution sound with super low latency
Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
D-Contour and highly reliable protection circuits
Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
Specifications:
Frequency Range (-10 dB) 31 Hz – 20 kHz
Coverage Angle H 75° x V 50°
Power Rating 2000W (LF: 1000W, MF/HF: 1000W)
Maximum SPL 143 dB SPL
LF Driver 15" Cone, 3" Voice coil, Neodymium magnet
MF Driver 8" Cone, 1.5" Voice coil, Ferrite magnet
HF Driver 2" Voice coil, 1" Throat compression driver, Titanium diaphragm, Neodymium magnet
Dimensions (H x W x D) 35.3" (897 mm) x 21.6" (550 mm) x 20.5" (520 mm)
Weight 91.7 lbs (41.6 kg)
