Pioneer DJM700 K

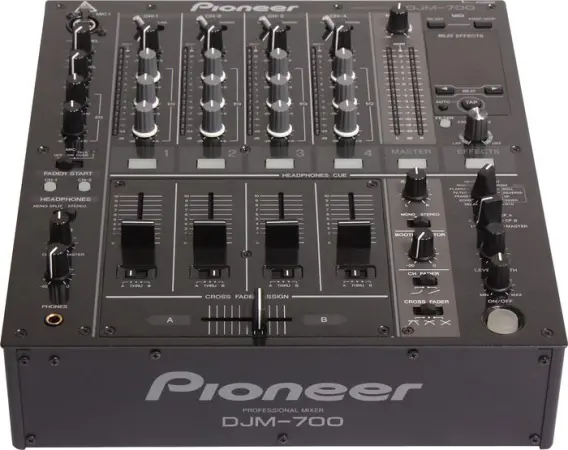

Pioneer DJM700 K (Pioneer DJM-700K)

The Pioneer DJM-700 4-channel digital mixer from Pioneer will reignite jaded turntablists' enthusiasm and make it easier to entertain the crowd while producing the purest sounding mixes. The solid construction chassis and dual shield structure of the DJM-700 helps eliminate worry over vibration and digital noise creeping in. Output-wise, it has a 96khz/24-bit digital sampling system with a 32-bit/96kHz DSP with ideal filtering that doesn't deteriorate any of the sound quality. Speaking of filters, the DJM-700 DJ mixer has a unique effect frequency filter that limits the frequency bands subjected to effects to help showcase your particular mixing style.

As far as effects, some of the more notable additions to this Pioneer mixer include Beat Effect, which automatically detects the BPM of the tune to perfectly align any of the various effects such as flanger, phaser, or crush, with the beat; Roll Sampler, which provides 4 realtime sampling patterns—roll, reverse roll, pitch up roll, and pitch down roll; and Beat Select Buttons—2 buttons that help maintain synchronization between beat effects and audio by letting the user quickly select the effect timing.

The Pioneer DJM-700 has fully assignable MIDI functions for those who like to add DJ effectors and MIDI software applications to their nightly routine, with up to 49 assignable keys. Adding to the variety of performance options, the I/O terminals allow for traditional or digital turntables or both.

When quality and performance is key, trust Pioneer.

Pioneer DJM-700 4-Channel Digital DJ mixer with Effects Features:
4-channel
10 input/12 output
High rigidity chassis minimizes noise from vibration
Dual shield structure eliminates digital noise entry
World's first frequency effects filter
Manual filter
Sound Link/EFX Link function controls other Pioneer equipment via a link cable
BPM synchronize function, to synchronize the BPMs of all attached equipment
Fully assignable MIDI functions
96kHz/24-bit sampling rate
32-bit/96kHz digital sound processor
MIDI effects like Beat Effect, Roll Sampler, and Beat Select Buttons can be synced with tempo
Each channel of the mixer can be assigned to the crossfader
Built-in 3-band EQ on each channel enables level control within a —26dB to +6dB range for high, mid, and low bands, respectively.
Users can change the crossfader/channel fader curve
Mixer automatically lowers track volume when it senses a vocal input on the microphone
Peak level meter located on the top right of the mixer shows input levels from each channel
By simply sliding the crossfader or channel fader, player is automatically started

Pioneer DJM-700 4-Channel Digital DJ mixer with Effects Specifications:

I/O:
Input Terminal: CD/Line x 5 (RCA), Phono x 3 (RCA), MIC x 2 (XLR, 1/4" phone)
Output Terminal: Master Out x 2 (RCA, XLR), Booth Out (RCA), Headphone Monitor Out (top panel 1/4" phone), Rec Out (RCA), Digital Out (coaxial)
Other Terminal: Send (1/4" phone), Return (1/4" phone), MIDI Out (5P DIN), Control Out x 2 (3.5 mini jacks)

Other Specs:
Sampling Rate: 96kHz
A/D, D/A Converter: 24-bit
Frequency Response: 20Hz - 20kHz
Total Harmonic Distortion: 0.005 % or less
Signal-to-Noise Ratio: 104 dB (LINE)
Head Room:19 dB
Power Requirements: AC 120V (60 Hz)
Power Consumption: 34W
Dimensions: 12.6"(W) x 4.25"(H) x 14.9"(D)
Weight: 14.6 lb.
