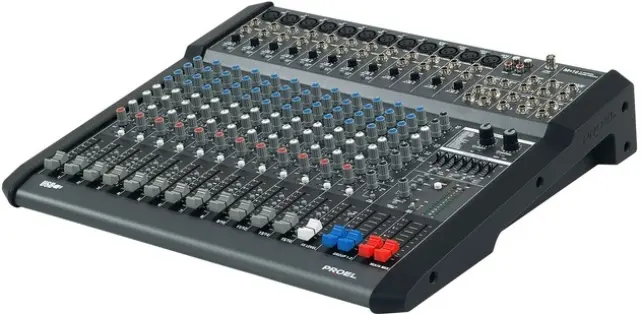

Proel M16USB (Proel M-16 USB)
Our M16USB is a mixer that any club or band needs to achieve the perfect sound and to get to the end of the night with the best result and least problems. Its 16 channels, including 12 microphone pre-amplifiers, will accommodate the amplification of all the elements of a medium size band, with maximum control on every channel. Its 4 output buses allow you to control several groups of instruments or to control several amplification systems. Thanks to the INSERT function on every MONO channel and on the main MIX, you can employ your favourite outboard processors to get the best out of each instrument, while the 7-band stereo graphic equalizer can compensate the frequency response of the main system or the monitors. The M16USB features a USB interface for PC connection, and comes with a rugged transportation bag and adapters for standard 19"rack mounting.
| System type | 16 inputs mixer with digital effects & USB |
| Power Supply | 100V - 240V AC, 50 - 60 Hz |
| Phantom power | + 48 V all mono input |
| Input Connectors | Mic Input Balanced XLR-F - Combo Line Input Balanced TRS Jack USB |
| Inputs | 12 MIC - 8 Line - 4 stereo line - USB |
| Input Sensitivity | Mic Input from 0 to -60 dB Line Input from +20 to -40 dB |
| Input Impedance | Mic Input 2 Kohm Line Input 10 Kohm |
| Output Connectors | Balanced TRS Jack and / or XLR-M - USB |
| Outputs | C\ROOM - MAIN MIX - GROUP 1-2 - AUX 1, 2 & 3 - PHONES - USB |
| Output Levels | MAIN MIX nom. out level +4 dBu - all other outputs 0 dBu - Maximum level all outputs +22 dBu |
| Headphones output impedance | min. impedance 32 ohm - max. out level (2x) 193 mW |
| Distortion (THD+N) | at +4dB, 1kHz < 0,008 % |
| Mono Input channel equalization | Lo Cut 75 Hz, 18 dB/oct. HIGH (shelving) ±15 dB @ 12KHz MID (peaking) ±15 dB from 100 Hz to 8 kHz LOW (shelving) ±15 dB @ 80Hz |
| Stereo Input Channel Equalization | HIGH (shelving) ±15 dB @ 12KHz HI-MID (peaking) ±15 dB @ 3 KHz LO-MID (peaking) ±15 dB @ 500 Hz LOW (shelving) ±15 dB @ 80Hz |
| Incorporated effects | HALL, ROOM, VOCAL and PLATE reverbs, MONO, STEREO and TAP DELAY, CHORUS and FLANGER, REV + DELAY, REV + CHORUS and REV + FLANGER 16 step PRESET selector 16 step VARIATION selector PEAK LED MUTE and TAP DELAY switch with LED indicator and footswitch |
| Frequency response | 20 Hz to 60 kHz: +0 dB/-1 dB |
| Noise | unweighted < -93 dBu |
| Weight | 6.5 kg (6.5 kg) |
| Dimensions (W x H x D) | 48.5 x 9 x 43.5 cm |
| Notes | Carrying bag and 19" rack adapters included 7-band stereo assignable graphic equalizer |
