Proel M500 USB
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

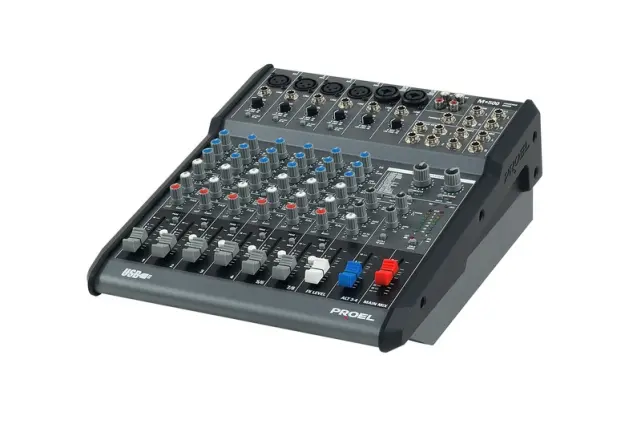

Proel M500USB (Proel M-500 USB)
If you are still fond of your passive loudspeakers and you need a very compact mixer which can supply very high power, our M500USB is what you are looking for. Featuring the same sophisticated mixer section and the same 24-bit effect of the M8USB, this active mixer is equipped with a powerful 250W-per-channel amplifier featuring NEUTRIK SPEAKON connectors for the power outputs. Perfect operation is guaranteed by a thorough protection system and by a variable-speed fan for optimum cooling of the output stages. The M500USB also features an interface for PC connection, adapters for rack mount and includes a sturdy bag for transportation.
| System type | 8 inputs powered mixer with digital effects & USB |
| Power Supply | 230VAC 50/60Hz or 117VAC 50/60Hz |
| Phantom power | + 48 V all mono input |
| Output Power (THD<1% 1kHz) Stereo 4+4ohm | 250 W + 250 W RMS |
| Input Connectors | Mic Input Balanced XLR-F - Combo Line Input Balanced TRS Jack USB |
| Inputs | 6 MIC - 4 Line - 2 stereo line - USB |
| Input Sensitivity | Mic Input from 0 to -60 dB Line Input from +20 to -40 dB |
| Input Impedance | Mic Input 2 Kohm Line Input 10 Kohm |
| Output Connectors | Balanced TRS Jack and / or XLR-M - USB |
| Outputs | C\ROOM - MAIN MIX - ALT 3-4 - AUX 1 & 2 - PHONES - USB |
| Amplifier Output | 2 x SPEAKON |
| Output Levels | MAIN MIX nom. out level +4 dBu - all other outputs 0 dBu - Maximum level all outputs +22 dBu |
| Headphones output impedance | min. impedance 32 ohm - max. out level (2x) 193 mW |
| Distortion (THD+N) | at +4dB, 1kHz < 0,008 % |
| Mono Input channel equalization | Lo Cut 75 Hz, 18 dB/oct. HIGH (shelving) ±15 dB @ 12KHz MID (peaking) ±15 dB @ 2.5KHz LOW (shelving) ±15 dB @ 80Hz |
| Stereo Input Channel Equalization | HIGH (shelving) ±15 dB @ 12KHz MID (peaking) ±15 dB @ 2.5KHz LOW (shelving) ±15 dB @ 80Hz |
| Incorporated effects | HALL, ROOM, VOCAL and PLATE reverbs, MONO, STEREO and TAP DELAY, CHORUS and FLANGER, REV + DELAY, REV + CHORUS and REV + FLANGER 16 step PRESET selector 16 step VARIATION selector PEAK LED MUTE and TAP DELAY switch with LED indicator and footswitch |
| Damping Factor | >300 @ 4 ohm |
| Maximum Power Consumption | 400VA |
| Frequency response | 20 Hz to 30 kHz: +0 dB/-1 dB |
| Noise | unweighted < -93 dBu |
| Protections | DC voltage, short circuit, thermal, soft start |
| Cooling | variabile speed DC fan |
| Weight | 5.7 kg (5.7 kg) |
| Dimensions (W x H x D) | 28 x 12.5 x 35.2 cm |
| Notes | Carrying bag and 19" rack adapters included |
