Shure PGX1 / PG30TQG

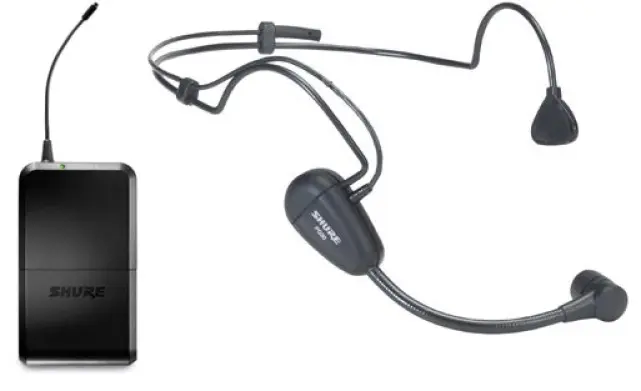

Shure PGX1 & Shure PG30TQG Headset and body pack transmitter

Shure PGX-1
Bodypack Transmitter
The Shure PGX1 is a low-profile, durable wireless bodypack for use with PGX Wireless systems. Interchangeable microphones or instrument cables are available for headworn, lavalier, instrument (clip-on), or guitar/bass uses.

Low-profile bodypack with belt clip
Adjustable gain
Power, mute, and battery status LED
Up to 8 hours of continuous use from 2 AA batteries
300 ft (100 m) operating range

Weight
81 grams (3 oz.) without batteries

Battery Life
> 8 hours (alkaline)

Shure PG30TQG Cardioid Condenser Headset Mic Features:
Comfortable wire frame for secure fit
Smooth, natural frequency response comparable to quality handheld microphones
Reliable at temperature and humidity extremes

Shure PG30TQG Cardioid Condenser Headset Mic Specifications:
Type: Condenser, electret bias
Frequency Response: 60Hz to 18,000Hz *
Polar Pattern: Cardioid (unidirectional)
Output Impedance: 1200ohms @1kHz*
Output Level; -52dBV/Pa (2.5 mV) *
Signal to Noise Ratio: 61dB, 1kHz at 1 Pa*
Maximum SPL: 125dB
Dynamic Range (max. SPL to A-weighted noise level): 92dB *
Output Noise: 33dB (typical, A-Weighted) *
Recommended Operating Voltage: +5VDC, 10V max (pin 2 to pin 1)
Polarity: Positive sound pressure on diaphragm produces positive voltage on pins 3 and 4 relative to pin 1 (ground) on the mini TA4F connector.
Cable: 50 in" (1.27 m) two-conductor shielded
Connector: Mini TA4F
Net Weight: 1.82 oz (51.6 g)
