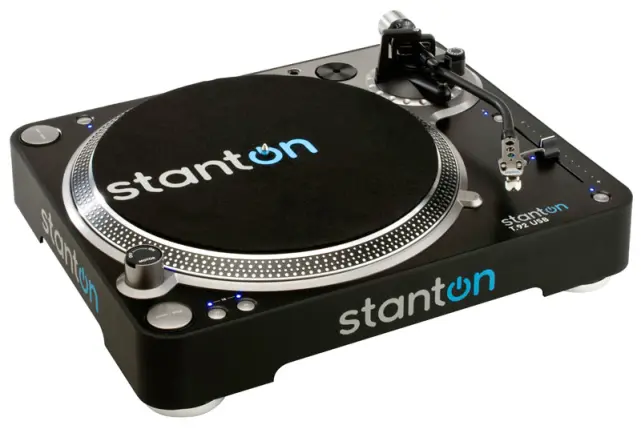

Stanton T.92 USB (Stanton T.92-USB)
The T.92 USB is a direct-drive professional turntable with built-in USB
connectivity. The USB port and supplied software make it easier than ever to
digitalize vinyl recordings. With features such as key lock and a pitch range of
±%12, the T.92 USB effortlessly fits in with a regular DJ setup.
Features:
- Professional Quality Turntable Featuring High-Torque Direct-Drive Motor
- Sturdy Construction for the Ultimate in Durability
- USB and S/PDIF Outputs for Easily Transferring Music from Vinyl Records
to your Mac or PC
- Pitch Control Fader with DSP Key Lock (change tempo without affecting
pitch) Selectable Range (+/-8%, 12%)
- Includes Cakewalk Pyro Audio Creator LE Software for Transferring and
Editing Music Files
- Includes Audiophile-quality Stanton 500.v3 Cartridge Pre-mounted on
Headshell
- S-Shaped Tone Arm for Lower Distortion and Superior Fidelity
- 3 Playback Speeds (33, 45, and 78 RPM) and Quartz Lock
- RCA Stereo Outputs (Phono / Line Switchable)
- 2 Start/Stop Switches for Mix or Battle Setup
- Accessories include RCA Cables, Slip Mat, USB Cable, and Dust Cover
- Dimensions [WxHxD]: 53 cm x 44 cm x 20 cm
- Frequency Response 30 Hz to 20 kHz +1/- 2 dB/ RIAA filter
- THD+N < 0.03% at 1 kHz
- S/N Ratio: Line <-65 dB
- Digital Output (SPDIF) 0.5Vp-p (Load 75 ohms)
- Type 3-speed full manual
- Motor 8 pole, 3 phase, brushless DC motor
- Speeds 33 1/3 and 45rpm and 78 rpm
- Wow and Flutter Less than 0.15% WRMS (JIS WTD) with 33 1/3 rpm
- Pitch Controls +/- 8%, +/-12%
- Starting Torque More than 1.6 kgf.cm
- Starting Time Less than 1 sec with 33 1/3 rpm
- Braking Time Less than 1 sec with 33 1/3 rpm
- Braking System Electronic Brake
- Time for Speed Change Less than 1 sec with 33 1/3 rpm
- Less than 1 sec from 45 to 33 1/3 rpm
- Less than 1 sec from 33 1/3 to 78 rpm
- Audio Output Phono/Line output
- USB Functiion A/D,D/A 16BIT 44.1KHz or 48KHz USB SELECTABLE
- Computer interface: USB 1.1 compliant, WINDOWS XP or Mac OSX
Tone Arm Section Measurement
- Tone arm type Static balanced S-Shape tonearm for lower distortion and
reduced record-ware
- Effective Arm Length 230.5mm
- Tracking Force Range 0-3g
- Applicable Cartridge Weight 3-4g
