Yorkville LS1004
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

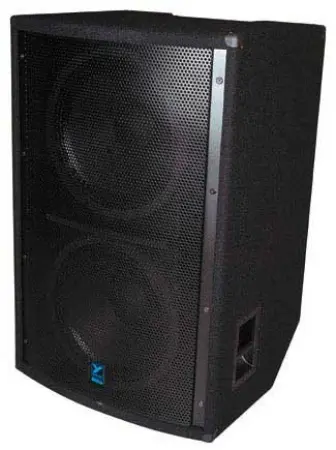

Yorkville LS1004 (Yorkville LS-1004)
Elite Series Dual 18" Subwoofer,1400 Watts @ 4 Ohms, Black Ozite Carpet Finish
LS1004
The LS1004 has a bass reflex design and is suitable for touring or fixed
installations. The cabinets are constructed of 15mm 11-ply Baltic Birch with
heavy internal bracing for reduced resonance and better durability. All
enclosures are covered in a black carpet covering and incorporate metal corner
protectors, rugged curved anti-resonant metal grilles, and 1/4" or Speakonâ„¢
input connectors. Additionally, the Speakonâ„¢ connectors feature a configuration
switch which allows instant reversal of Speakonâ„¢ jack pinouts for easy single
wire hook-up using optional four wire Speakonâ„¢ cables.
Yorkville’s élite series loudspeaker systems are the result of years of
research, pushing the limits of modern state-of-the-art sound reinforcement
technology. Engineered for the serious pro audio user, élite systems are among
the most advanced, most versatile and most efficient high powered portable P.A.
boxes available. The majority of the élite range feature seamless driver
interaction through sophisticated high-slope passive networks and ingenious
component protection schemes. Rugged jackplates are inset and include a
combination of both Speakonâ„¢ and 1/4" phone jack inputs.
Features:
5600 Watt 2x18-inch Subwoofer (2800 Watts Program)
Max SPL 139dB Peak (136dB Continuous)
Bass Reflex Cabinet Design
45Hz – 180Hz Frequency Response
2 x Speakonâ„¢ and 2 x 1/4-inch Parallel Inputs
Solid 5/8-inch (15mm) Birch Plywood Construction
Made in Canada
Specifications:
System Type Bass Reflex Subwoofer
Active or Passive Passive
Program Power (Watts) 2800 Watts (5400 Peak / 1400 Continuous)
Nominal Impedance (Ohms) 4
Sensitivity (dB @1Watt/1m) 102
Max SPL (dB) 139dB Peak (136dB Continuous)
Frequency Response (Hz +/- 3db) 40 - 300
Driver Configuration 2x18-inch Ceramic Magnet 4-inch Voicecoil
Inputs - 1/4" Jacks 2
Inputs - Speakon 4-pin 2
Other Controls / Features Speakonâ„¢ connectors feature a configuration switch
which allows instant reversal of Speakonâ„¢ jack pinouts for easy single wire
hook-up using optional four wire Speakonâ„¢ cables.
Corners Black Steel
Wheels 2 Rear Tilt
Bar Handles 2 Top, 2 Side
Enclosure Materials 15mm (5/8inch) 11-ply Russian Birch
Grille Heavy gauge perforated metal
Covering / Finish Black Ozite (Carpet)
Dimensions (DWH xbackW, inches) 23.5 x 28.3 x 43.5
Dimensions (DWH xbackW, cm) 59.7 x 71.9 x 110.5
Weight (lbs/kg) 163 / 74
