Acclaim Aqua Driver 400 | 400W Power/Data Driver f...
$1,299.00

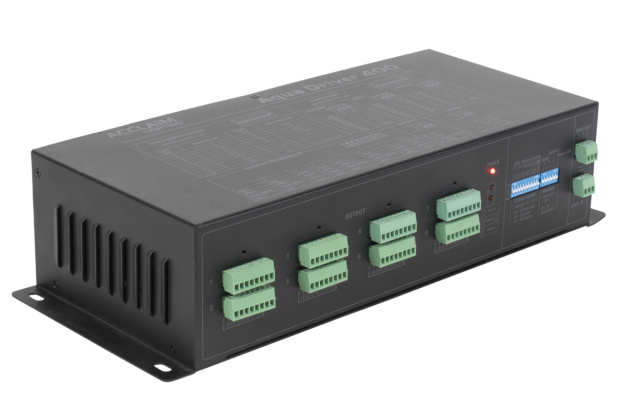

The Aqua Driver 400 is a constant current dimming driver for 24VDC LED products. It can take an AC input from 100-277vAC and dims each channel via DMX. It can control up to 400W of multi-color or single color LED products, and manual colors can be set in instances where external control is not desired.
Features
Input/Output - Connect DMX to directly control Acclaim Aqua Series products
Easy to configure - Adjust settings and address via the onboard menu
Power up - Up to 150W of power total, with 350mA or 700mA options depending on the Aqua Series product connected
Specifications
Power Input: 100-277VAC
Control Input: DMX-512, hardwire terminal block connection
Output: 350mA (EO & SO) and 700mA (HO) constant current, 4 control channels max per port

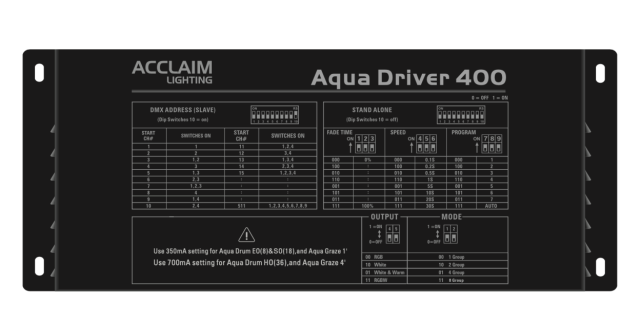

Optional Control: Manual color selection via dip switch
Mounting: 4 x 0.35" (6mm) mounting holes
Finish: Black
Material: Aluminum
Ambient Operating Temperature: 0º F to 158º F (-20º C to 70º C)
IP Rating: IP20, dry location
IK Rating: IK06, protection against 1 joule impact

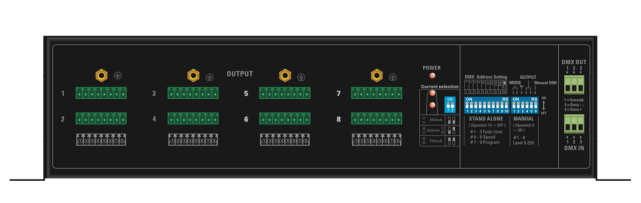

Fixture Connectors: Removable multi-pin terminal blocks
Warranty: 5 Years, limited
Weight: 4.4 lbs (1.99 kg)
Dimensions: W: 14.52" L: 5.9" H: 3.38" / W: 369mm L: 150mm H: 86mm
| Brand | Acclaim |
| Name | Acclaim Aqua Driver 400 |
| Build Material | Aluminum |
| Dimensions | W: 14.52" L: 5.9" H: 3.38" inches |
| Weight | 4.4 lbs kg |
| Connectivity Protocols | DMX-512 |
| IP Rating | IP20 |
| Power Rating | 400W W |
| Voltage Range | 100-277VAC VAC |
| Warranty Length | 5 Years, limited years |
