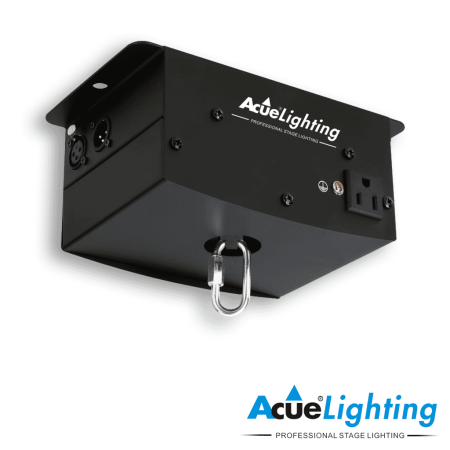

Acue Lighting MBMLDMX

DMX Mirror Ball Motor

The Acue Lighting MBMLDMX is a large heavy duty DMX mirror ball motor built for controlling oversized mirror balls in clubs, stages, event spaces, and mobile entertainment setups. Designed for reliability and flexible control, it offers adjustable rotation speed, direction control, and integrated power for pinspots in one compact unit.

Acue Lighting MBMLDMX Competitive Differences

• Supports mirror balls up to 80 inches with DMX speed and direction control
• Includes two 3-prong Edison sockets to power pinspots directly from the unit

Acue Lighting MBMLDMX Description

The Acue Lighting MBMLDMX is designed for lighting professionals and venues that need dependable mirror ball control with DMX integration. With 2 DMX channels, it gives you direct command over pinspot power as well as motor speed and direction, making it easy to create dynamic movement effects for dance floors and special events.

This motor is built for large-format applications and can be used with mirror balls up to 80 inches. Its heavy duty construction makes it a practical choice for permanent installations and demanding event production environments where consistent performance matters.

For added convenience, the unit includes two built-in 3-prong Edison sockets for powering compatible pinspots, helping simplify cable management and installation. XLR input and output connections allow easy integration into DMX systems, while primary and secondary linking supports synchronized operation of up to 4 units for coordinated visual effects.

The MBMLDMX also features circuit breaker protection, eliminating the need for fuse replacement, along with a 1/4-inch socket for on/off control with the optional UC IR controller. This combination of protection, control flexibility, and professional connectivity makes it a smart solution for mirror ball effects in a wide range of venues.

MBMLDMX Features

• Large heavy duty DMX mirror ball motor
• Supports mirror balls up to 80 inches
• Includes two 3-prong Edison sockets for powering pinspots
• 2 DMX channels for pinspot on/off and motor control
• Adjustable motor speed and direction control
• Circuit breaker protection with no fuse replacement required
• XLR input and output connections
• Primary/secondary linking for up to 4 units
• Synchronized motor rotation and universal speed control across linked units
• 1/4-inch socket for on/off control with optional UC IR controller

MBMLDMX Specifications

• DMX Channels: 2
• Channel 1: Pinspot On/Off
• Channel 2: Motor speed and direction control
• Maximum Mirror Ball Size: Up to 80 in
• Power Draw at Max 1 rpm: 10.5W / 0.101A
• Power Draw at Min 0.5 rpm: 10.2W / 0.100A
• Dimensions: 8 x 4.8 x 5.75 in (203 x 122 x 146 mm)
• Weight: 4 lb (2 kg)

Acue Large Motor w/ DMX (Acue Lighting MBMLDMX)
