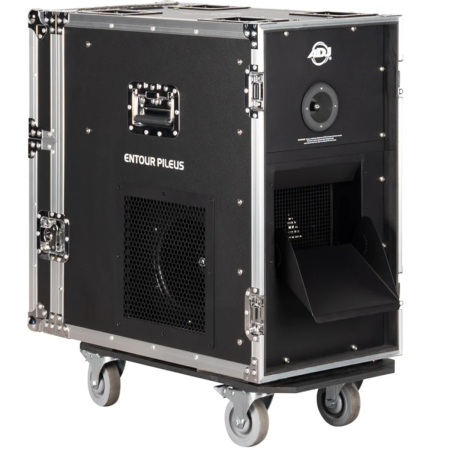

ADJ Entour Pileus

Hybrid Fog and Faze Machine

The ADJ Entour Pileus is a high-output atmospheric effects machine designed to create either dense fog bursts or a fine, haze-like faze effect using water-based fluid. Its powerful output, variable-speed fan, dual fluid tanks, and road-ready housing make it suitable for concerts, touring productions, theaters, large venues, and event installations.

ADJ Entour Pileus Competitive Differences

• Produces both thick fog and fine faze-style atmospheric effects from one machine
• Delivers up to 60,000 cubic feet of output per minute for large production spaces
• Dual 5.6-liter tanks provide extended fluid capacity or fast switching between compatible fluids
• Adjustable fog output and fan speed provide precise control over effect density and dispersion
• Integrated road case with heavy-duty locking casters supports touring and mobile production use
• Automatic self-cleaning cycle helps maintain the fluid system between uses

ADJ Entour Pileus Description

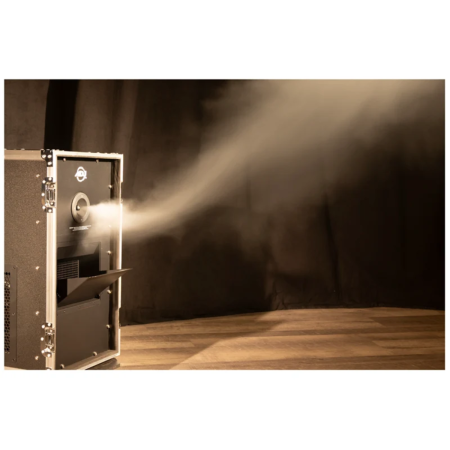

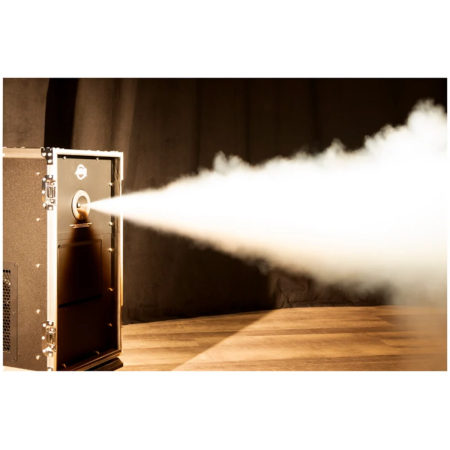

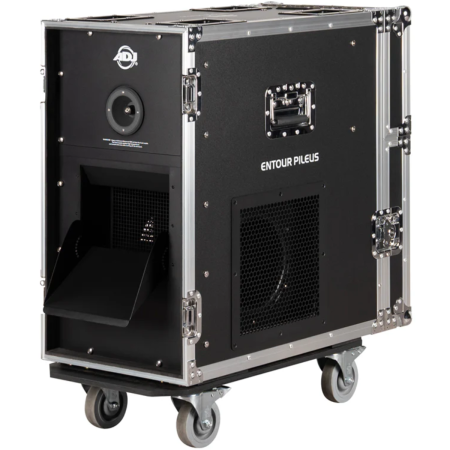

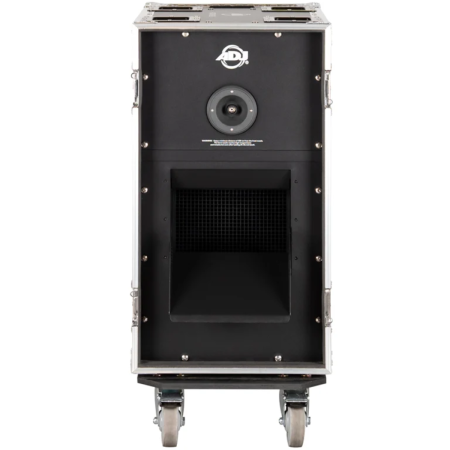

The ADJ Entour Pileus combines the functions of a high-output fog machine and a faze machine in a single production-ready system. It can generate powerful plumes of thick fog for dramatic effects or distribute a thinner atmospheric mist that enhances beams, washes, lasers, and other stage lighting.

A 1650W heater element and output capacity of up to 60,000 cubic feet per minute allow the unit to cover large stages and venues. Fog output and fan speed are independently adjustable from 5% to 100%, giving operators control over the volume, density, and spread of the effect. The machine can provide output bursts lasting up to 35 seconds, while its continuous mode automatically manages output for longer operating periods.

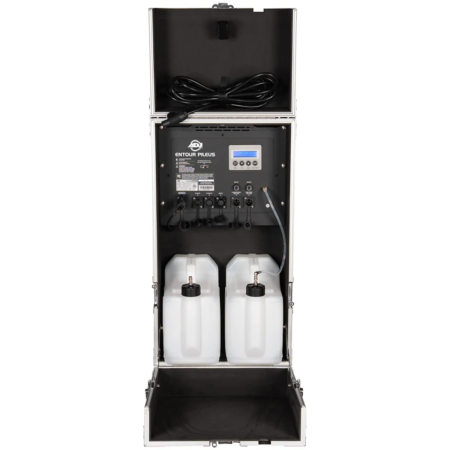

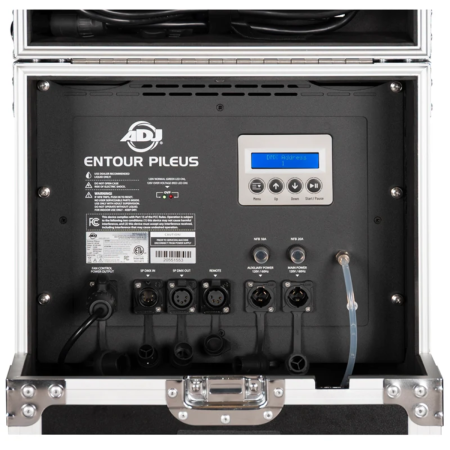

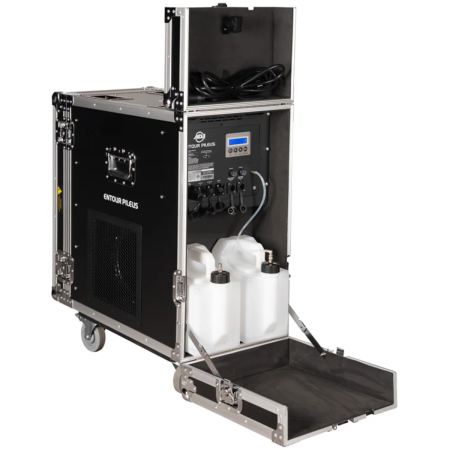

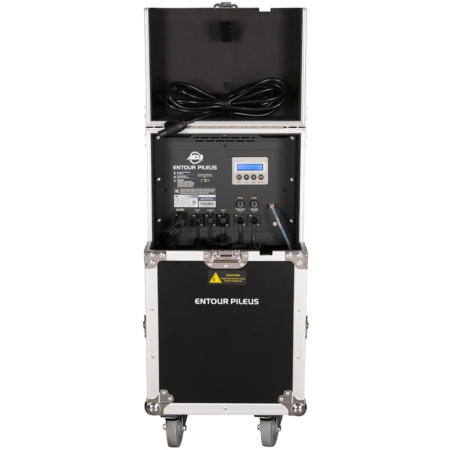

Dual 5.6-liter fluid tanks allow users to carry additional fluid or quickly switch between compatible fog and faze fluids. An onboard timer, four-button LCD control panel, three DMX channel modes, and 5-pin DMX connections support standalone operation and integration into professional lighting systems.

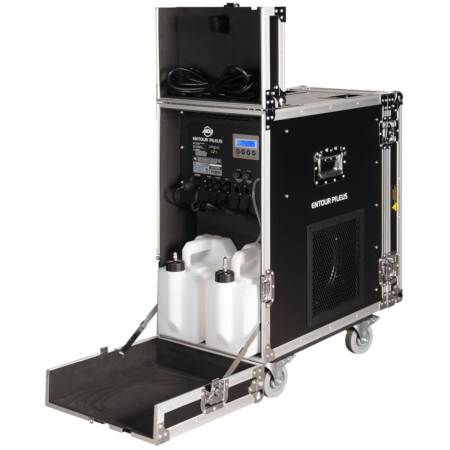

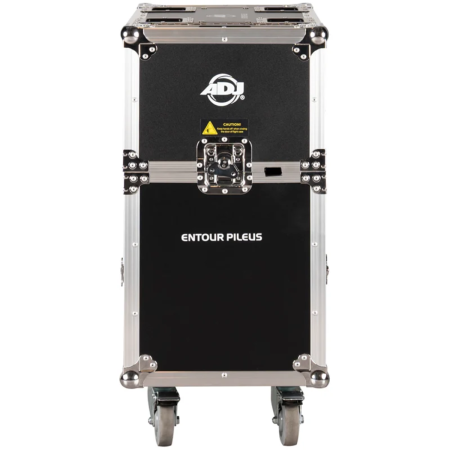

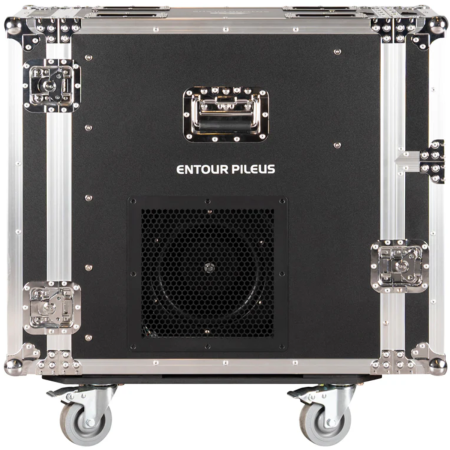

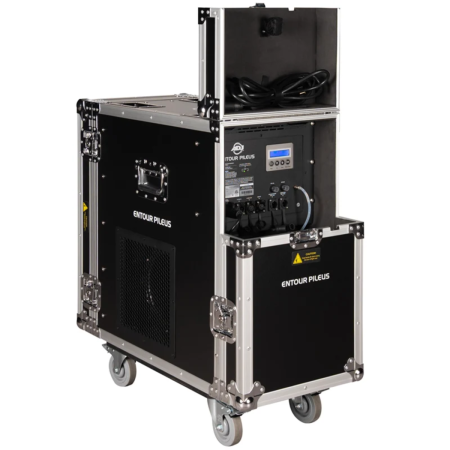

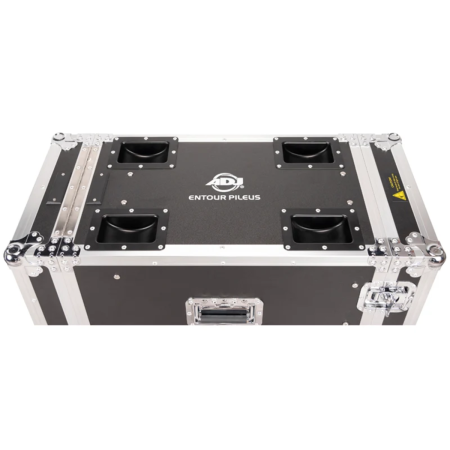

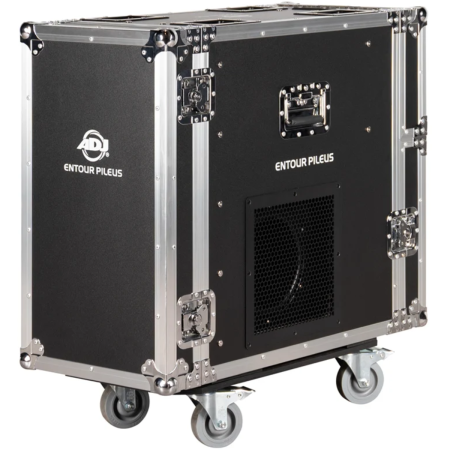

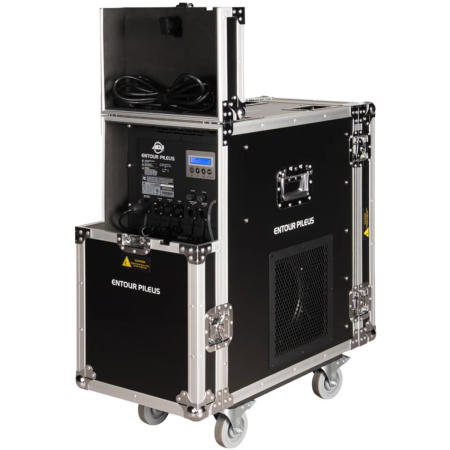

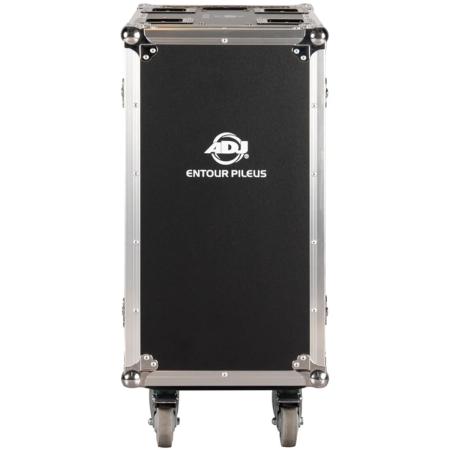

Built into a rugged road case with heavy-duty locking casters, the Entour Pileus is designed for demanding mobile applications. Over-voltage protection, fan cooling, a locking power connection, and a 30-second self-cleaning cycle provide additional reliability for touring companies, production facilities, theaters, concert venues, and large event spaces.

Entour Pileus Features

• Creates thick fog or thin faze-style output
• Uses standard water-based atmospheric effect fluid
• 1650W heater element
• Maximum output of 60,000 cubic feet per minute
• Fog output adjustable from 5% to 100%
• Fan speed adjustable from 5% to 100%
• Maximum output duration of 35 seconds with continuous mode disabled
• Continuous mode automatically adjusts output for longer bursts
• Dual 5.6-liter fluid tanks
• Onboard timer control
• Four-button LCD control display
• 1-, 2-, and 4-channel DMX operating modes
• 5-pin DMX input and output connections
• 4-pin XLR remote-controller connections
• 30-second automatic self-cleaning cycle
• Over-voltage protection
• Locking power input connection
• Fan-cooled operation
• Rugged road-case housing
• Heavy-duty locking casters

Entour Pileus Specifications

• Heater Element: 1650W
• Maximum Power Consumption: 2150W
• Maximum Fog Output: 60,000 cu ft/min
• Fog Output Adjustment: 5% to 100%
• Fan Speed Adjustment: 5% to 100%
• Fluid Consumption: 38ml/min minimum; 180ml/min maximum
• Maximum Output Duration: 35 seconds with continuous mode disabled
• Warm-Up Time: 16.5 minutes
• Self-Cleaning Cycle: 30 seconds
• Fluid Capacity: Two 5.6L tanks
• DMX Channel Modes: 1, 2, or 4 channels
• DMX Connections: 5-pin input and output
• Power Input: 120V, 60Hz
• Maximum Ambient Temperature: 104°F (40°C)
• Dimensions: 33.1 x 16.1 x 32.6 in (841 x 408 x 829 mm), including casters
• Weight: 139 lb (63 kg)
• UPC: 810087374303

American DJ ENT280 (American DJ Entour Pileus)
