Rackmount Digital Mixer

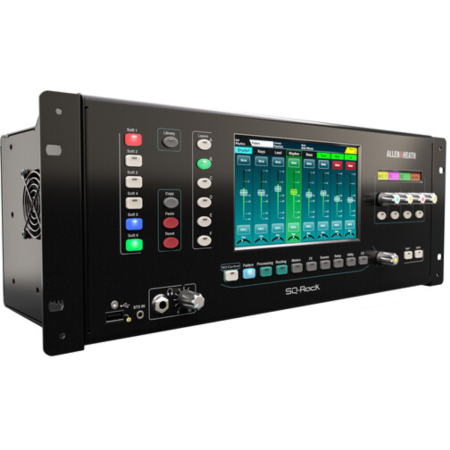

Allen & Heath AH-SQ-RACK is a compact 4 RU rackmount digital mixer built for live sound, corporate A/V, houses of worship, studios, touring rigs, and in-ear monitoring systems. With 48 input channels, 36 buses, 96kHz XCVI FPGA processing, 16 mic preamps, touchscreen control, onboard FX, app control, and flexible expansion, it delivers powerful SQ-series mixing without a traditional fader surface.
Allen & Heath AH-SQ-RACK Competitive Differences
- 48-channel, 36-bus digital mixer in a compact 4 RU rackmount enclosure
- 96kHz XCVI FPGA processing delivers high-resolution audio with latency under 0.7 ms
- 16 built-in microphone preamps plus additional stereo line inputs and talkback input
- 12 stereo mixes plus LR make it especially useful for in-ear monitor systems
- 8 stereo FX engines with dedicated stereo returns provide built-in processing for live mixes
- 32 x 32 96kHz USB audio interface supports multitrack recording, playback, and virtual soundcheck

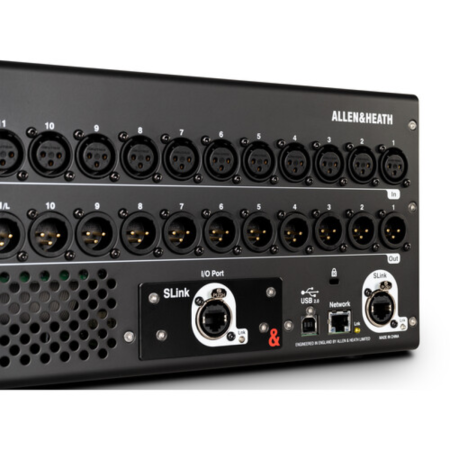

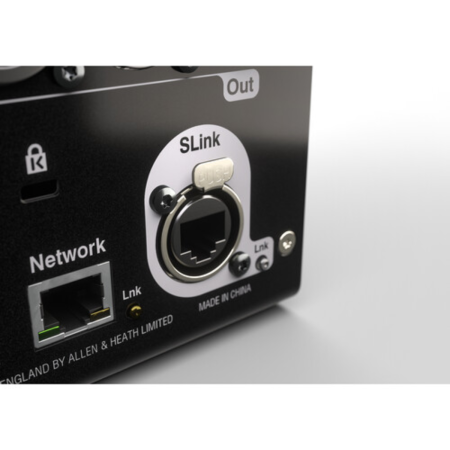

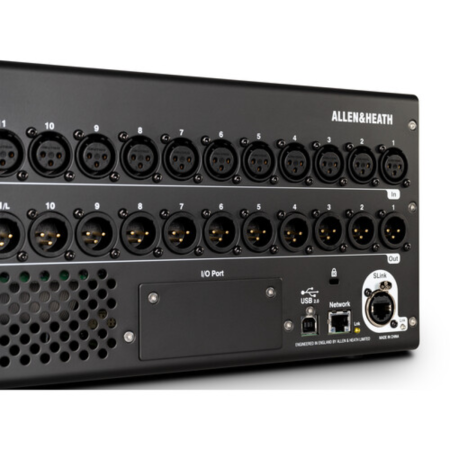

- SLink port and 64 x 64 I/O card slot support remote audio, expansion, and networking options

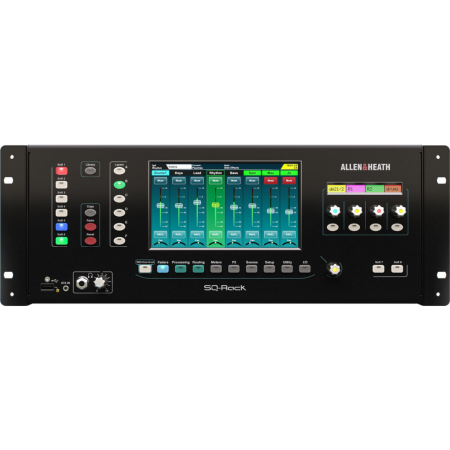

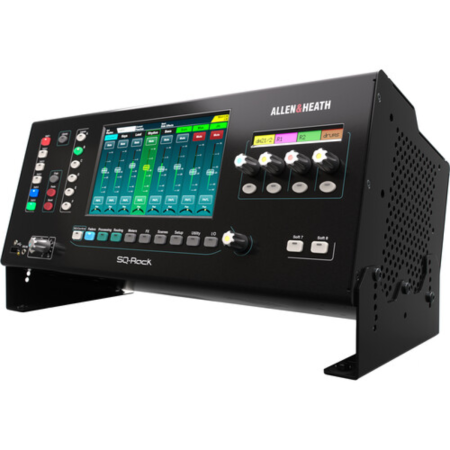

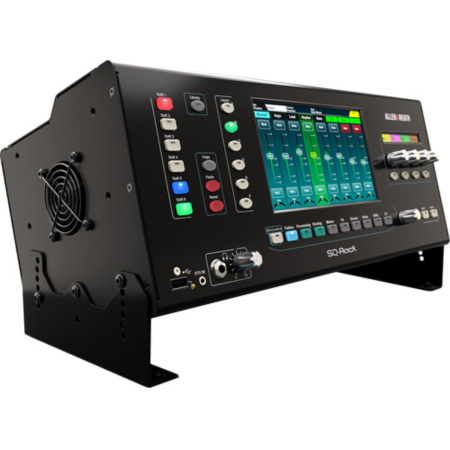

- 7-inch capacitive touchscreen, 8 assignable SoftKeys, 4 soft rotaries, and SQ apps provide flexible faderless control
Allen & Heath AH-SQ-RACK Description
The Allen & Heath AH-SQ-RACK brings the power of SQ digital mixing into a compact rackmount format for users who need professional mixing in a space-saving enclosure. Its 48-channel, 36-bus architecture is well suited for live sound reinforcement, installed audio, corporate events, houses of worship, studio workflows, touring bands, and IEM monitor racks.
At the center of the mixer is Allen & Heath’s 96kHz XCVI FPGA engine, designed for high-resolution audio, ultra-low latency, sample-accurate mix coherency, and the processing power needed for high channel counts and multiple mix buses. Each input includes essential processing such as high-pass filter, gate, 4-band parametric EQ with RTA, and compressor, while mixes include parametric EQ, 28-band graphic EQ, and compression.

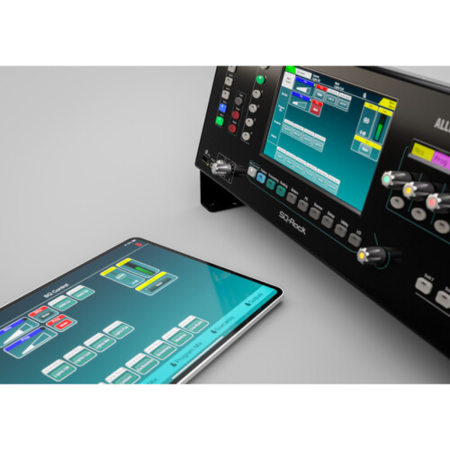

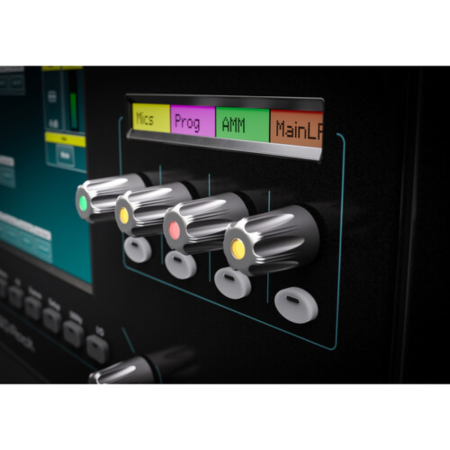

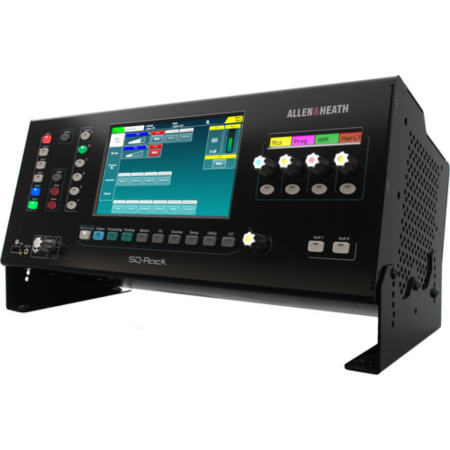

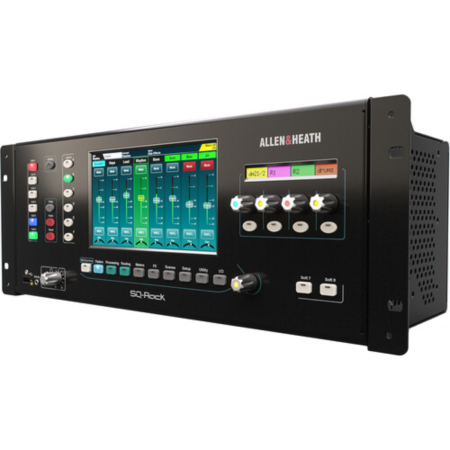

Even without physical faders, the SQ-Rack provides hands-on control through its 7-inch capacitive touchscreen, faders screen, 8 assignable SoftKeys, and 4 assignable soft rotaries with LCD displays. SQ-MixPad, SQ-Control, and SQ4You apps extend control for engineers, installers, musicians, and less technical users who need simplified access to specific functions.

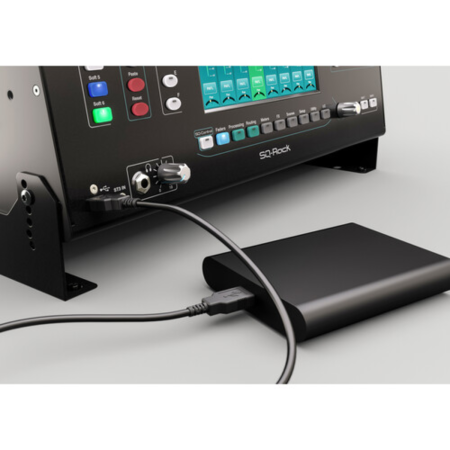

The Allen & Heath AH-SQ-RACK is also built for recording and system integration. SQ-Drive allows direct recording to USB storage, while the 32 x 32 96kHz USB audio interface supports DAW recording, playback, and virtual soundcheck. With SLink remote audio, a 64 x 64 I/O card slot for optional audio networking cards, AES output, and flexible analog I/O, it can operate as a standalone mixer or integrate into larger professional systems.
AH-SQ-RACK Features
- 48-channel, 36-bus rackmount digital mixer
- Compact 4 RU rackmount enclosure
- 96kHz XCVI FPGA processing engine
- Ultra-low latency under 0.7 ms
- 16 built-in microphone preamps
- 1 XLR talkback input
- 3 stereo line inputs
- 12 stereo mixes plus LR
- 3 stereo matrix outputs, splittable to 6 mono
- 8 stereo FX engines with dedicated stereo returns
- RackExtra FX library access
- DEEP processing ready for compressor and preamp emulations
- 7-inch capacitive touchscreen
- 8 assignable SoftKeys
- 4 assignable soft rotaries with LCD displays
- Auto Mic Mixing for conferences, panels, and multi-mic applications
- SQ-Drive direct recording to USB storage
- 32 x 32 96kHz USB audio interface
- SLink port for remote audio and expansion

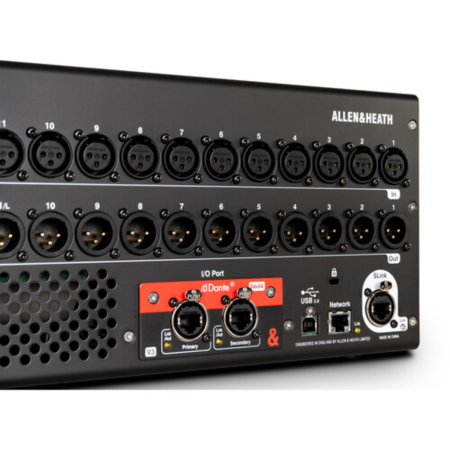

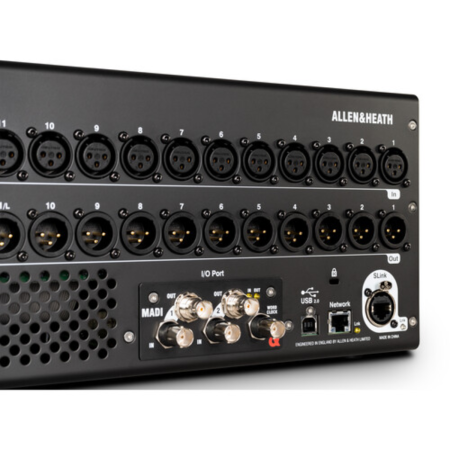

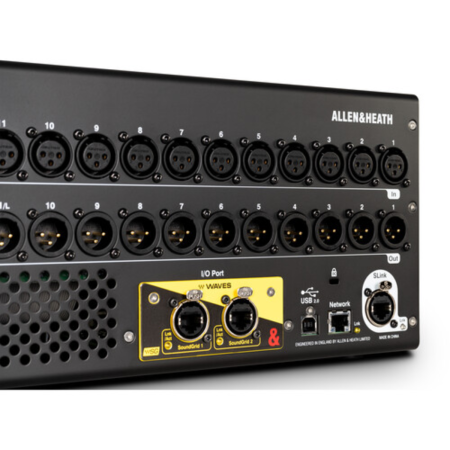

- 64 x 64 I/O port for optional audio networking cards
- AES output
- SQ-MixPad app support
- SQ-Control app support
- SQ4You personal monitoring app support
AH-SQ-RACK Specifications
- Product Type: Rackmount digital mixer
- Rack Size: 4 RU
- Max I/O Capacity: 48 inputs / 14 outputs
- Input Channels: 48
- Mix Buses: 36
- Analog Input Channels: 20 total, 16 mono / 4 stereo
- Mic Preamps: 16
- Analog Outputs: 14
- Mix Routing: 12 stereo mixes + LR, 3 stereo matrix, 8 stereo FX returns
- Processing Engine: 96kHz XCVI FPGA
- Sample Rate: 96kHz
- Bit Depth: 96-bit
- Latency: Less than 0.7 ms
- Display: LCD touchscreen
- Faders: No physical faders
- Input Processing: High-pass filter, gate, 4-band parametric EQ, compressor
- Mix Processing: Parametric EQ, 28-band graphic EQ, compressor
- Automatic Mic Mixing: Yes

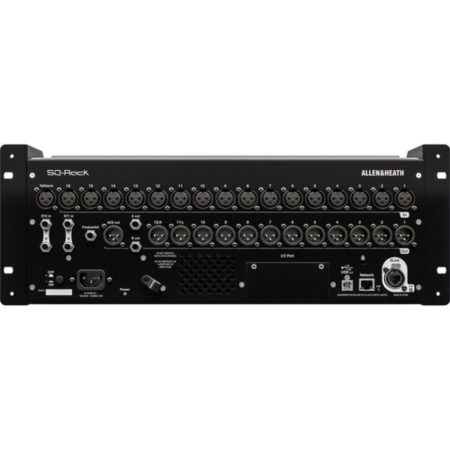

- Analog Inputs: 16 x XLR 3-pin balanced mic/line inputs, 1 x XLR talkback input, 4 x 1/4 in line inputs, 1 x 1/4 in footswitch input
- Analog Outputs: 10 x XLR 3-pin mono outputs, 2 x XLR stereo outputs
- Digital I/O: 1 x XLR AES3 output
- USB I/O: 1 x USB-B host connection, 1 x USB-A external memory/recording port
- USB Audio Interface: 32 x 32
- Expansion Ports: 1 x I/O card slot
- Remote Audio / Expansion: SLink port
- Maximum Multitrack Recording: 48 tracks
- Media Support: USB drive
- OS Compatibility: Windows / macOS
- Rack Mountable: Yes
- Package Weight: 17.455 lb
- Box Dimensions: 22.1 x 13.8 x 10.1 in
Allen & Heath AH-SQ-RACK
(Allen & Heath AHSQRACK)
