Versatile Audio Matrix Processor for Sound Management
The

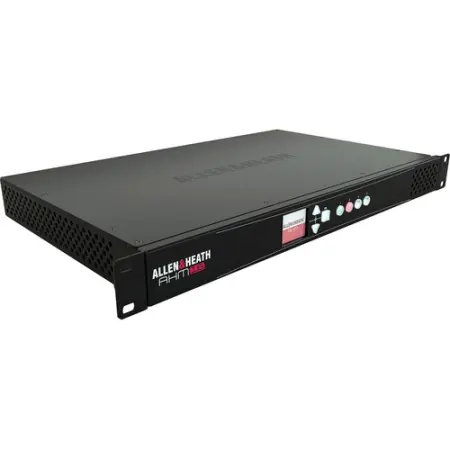

Allen & Heath AHM-16 is a powerful 16x16 audio matrix processor designed for professional sound distribution, paging, conferencing, and speaker processing. Ideal for corporate, hospitality, education, event venues, retail spaces, theaters, cruise ships, and sports facilities, it provides advanced control and seamless integration with a wide range of audio expansion options and third-party control systems.
Allen & Heath AHM-16 Competitive Differences
- 16x16 processing matrix with flexible audio distribution
- 8x8 local analog I/O for seamless connectivity
- I/O Port for audio networking with up to 128x128 channels
- Optional Dante 96 kHz card with AES67 and DDM support
- SLink 128x128 option card for expanded audio routing
- 16 configurable processing outputs for mono/stereo zones or speaker processing
- 96 kHz FPGA core with ultralow latency
- Integrated automatic mic mixer, ambient noise compensation, and priority ducking
- Comprehensive speaker processing including crossover filters, delay, limiter, and PEQ

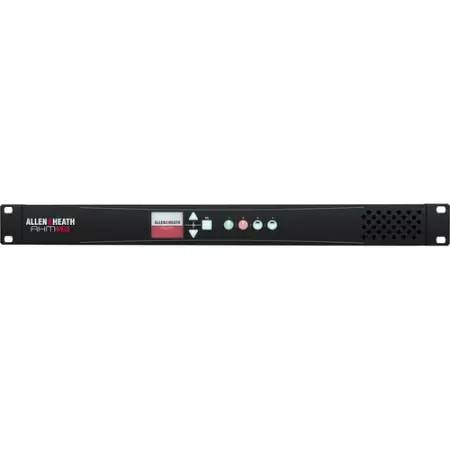

- Front-panel screen with navigation and 4 SoftKeys for easy control
- Supports Allen & Heath IP1, IP6, and IP8 remote controllers
- 2x2 local GPIO plus networkable GPIO interface
- Compatible with third-party control systems including Crestron, AMX, and Extron
- Event scheduler and built-in stereo playback for automation and flexibility
Allen & Heath AHM-16 Description
The
Allen & Heath AHM-16 is built for professional installations requiring flexible and reliable audio management. Its 16x16 processing matrix allows for precise sound routing, while the 8x8 local analog I/O ensures seamless integration with various audio sources and outputs. The system is highly scalable, supporting an extensive range of remote audio expanders, controllers, and software applications.
With the optional Dante 96 kHz card, the AHM-16 is AES67 and DDM ready, making it ideal for advanced networking applications. The SLink 128x128 option card further expands its capabilities, allowing audio professionals to build extensive audio networks with ultralow latency performance.
Sound management tools such as an automatic microphone mixer, ambient noise compensation (ANC), priority ducking, and comprehensive speaker processing ensure superior sound clarity in dynamic environments. The front-panel display, navigation controls, and customizable SoftKeys provide an intuitive user experience, while integration with Crestron, AMX, and Extron systems offers effortless third-party control.
AHM-16 Features
- 16x16 audio processing matrix
- 8x8 local analog I/O (8x Mic/Line Inputs, 8x Line Outputs)
- Expandable up to 128x128 via I/O Port
- Optional Dante 96 kHz card (AES67 and DDM ready)
- Optional SLink 128x128 audio expansion card
- 96 kHz FPGA core with ultralow latency
- Front-panel screen with navigation and SoftKeys
- Compatible with Allen & Heath IP1, IP6, and IP8 remote controllers
- 2x2 local GPIO plus networkable GPIO interface
- TCP/IP protocol for third-party integration
- Automatic mic mixer and ambient noise compensation
- Priority ducking for enhanced speech clarity
- 8-band PEQ, dynamics, and delay on every input and zone
- Advanced speaker processing (crossover, delay, limiter, and PEQ)
- Built-in stereo playback and event scheduler
AHM-16 Specifications
- Audio I/O: 8x Block 3-Pin Mic/Line Inputs, 8x Block 3-Pin Line Outputs
- Power Source: AC Input (100-240V, 50/60 Hz)
- Power Consumption: 65W (Maximum)
- Color: Black
- Operating Temperature: 32 to 72°F (0 to 40°C)
- Dimensions: 19 x 10.6 x 1.7" (48.3 x 26.9 x 4.3 cm)
- Weight: 8.4 lb (3.8 kg)
- Package Weight: 11.875 lb
- Box Dimensions: 22.3 x 15.8 x 5.6"
Allen & Heath AHM16
(Allen & Heath AHM 16)
