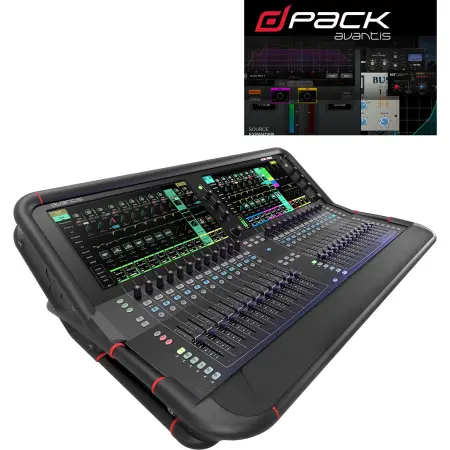

Advanced Digital Audio Mixer with Touchscreen Control & Expandable I/O
The Allen & Heath Avantis with dPack is a powerful 64-channel / 42-bus digital mixer built for live sound, broadcast, and installation environments. Featuring dual 15.6” Full HD touchscreens, high-speed FPGA processing at 96kHz, and the dPack software upgrade for dLive-class effects and dynamics, this console delivers world-class performance with intuitive, touch-friendly workflow design. Built into a rugged full-metal chassis, the Avantis is engineered to be flexible, expandable, and ready for any mixing application.
Allen & Heath Avantis w/ dPack Competitive Differences
- Dual 15.6" 1080p capacitive touchscreens with gesture control for intuitive workflow
- Includes Avantis dPack upgrade for DEEP Compressors, Dyn8 processing, and Dual-Stage Valve Preamp
- XCVI 96kHz FPGA processing engine with 0.7ms latency and up to 64 input / 42 output channels
- 12 analog XLR inputs and 12 analog XLR outputs, plus stereo AES I/O
- 12 RackExtra FX slots with dedicated stereo returns and studio-grade effects
- SLink port for connection to ME personal mixers or remote I/O expanders
- Two 128x128 I/O card slots supporting Dante, Waves, MADI, and gigaACE
- 24 motorized faders across 6 layers and 24 assignable SoftKeys
- Continuity UI connects physical controls and screen navigation for seamless operation
Allen & Heath Avantis w/ dPack Description
The Allen & Heath Avantis with dPack is a next-generation digital mixing console, powered by the company's proprietary XCVI 96kHz FPGA engine. With ultralow latency performance and 64-channel capacity, it supports sophisticated routing, monitoring, and mix workflows for modern live sound environments.
The dual 15.6” HD touchscreens form the core of the Continuity UI system, blending tactile hardware controls with an intuitive, responsive interface. Engineers can customize layouts, quickly recall scenes, and access effects, dynamics, and routing parameters with ease. Touch-sensitive faders and rotary encoders deliver instant feedback, while the FastGrab sidebar gives split-second access to key parameters.
The dPack software upgrade unlocks enhanced DSP tools from Allen & Heath's flagship dLive platform, including 16 Dyn8 engines, zero-latency DEEP Compressors, Dual-Stage Valve Preamp, and exclusive RackExtra FX models. This upgrade brings uncompromising audio quality and creative flexibility to your workflow.
Extensive connectivity is built-in: 12 mic/line inputs, 12 line outputs, AES3 digital I/O, and dual 128x128-capable I/O ports for cards like Dante, MADI, or Waves. The SLink port supports integration with Allen & Heath ME personal monitor mixers and remote stage boxes, while USB ports allow stereo playback and recording.
Whether you’re mixing front-of-house, monitors, or broadcast, Avantis adapts to your needs with user-assignable controls, scalable I/O, and seamless network integration. Optional apps like Avantis MixPad, OneMix, and Custom Control expand your control beyond the desk, making this a perfect centerpiece for high-demand professional audio environments.
Avantis Features
- 64 input channels / 42 configurable output buses
- XCVI 96kHz FPGA core with 0.7ms latency
- Dual 15.6” Full HD capacitive touchscreens with gesture control
- Continuity UI with intuitive touch and physical control integration
- 12 analog XLR mic/line inputs and 12 analog XLR line outputs
- 1 stereo AES3 input / 2 stereo AES3 outputs
- 24 x 100mm motorized faders across 6 layers
- 24 user-assignable SoftKeys
- 12 RackExtra FX slots with dedicated stereo returns
- 16 DCA groups and 8 mute groups
- AMM (Automatic Mic Mixer) across 1, 2, or 4 zones
- Integrated signal generator (sine, pink, white, bandpass noise)
- Real-time analyzer with 61 bands, history view
- Shure and Sennheiser RF integration
- 2x I/O ports for expansion cards (Dante, Waves, MADI, etc.)
- USB stereo recording/playback support
- Compatible with Avantis MixPad, OneMix, Custom Control apps
Avantis Specifications
- Max I/O capacity: 64x input / 42x output
- Analog inputs: 12x XLR mic/line
- Analog outputs: 12x XLR line, 1x 1/4" TRS headphone, 1x 1/8" TRS headphone
- Digital I/O: 1x XLR AES3 input, 2x XLR AES3 outputs, 2x RJ45 AES3 (network), 1x etherCON (I/O)
- USB: 1x USB-A 2.0, 1x USB-A 3.0 (record/playback/external storage)
- Dynamic range: 109 dB
- Frequency response: 20 Hz to 30 kHz (+0/-0.8 dB)
- Max input level: +30 dBu
- Phantom power: +48V, individually selectable
- THD+N: 0.0015% @ +16 dBu output, 1 kHz, 0 dB gain
- Input impedance: >10k Ohms (pad in), >4k Ohms (pad out)
- Output impedance: <75 Ohms (line), 110k Ohms (AES3)
- Word clock input: 44.1 to 96 kHz
- Operating temperature: 32°F to 104°F (0°C to 40°C)
- Dimensions: 43.3 x 33.5 x 16.7 in (110 x 85.1 x 42.4 cm)
- Weight: 75 lb (34 kg)
- Shipping dimensions: 43 x 32.5 x 16 in
- Shipping weight: 80 lb
What's In The Box
- Allen & Heath Avantis 64-Channel / 42-Bus Digital Mixer
- Power cord
- Allen & Heath dPack Software Upgrade (pre-installed)
- Limited 1-Year Manufacturer Warranty
>
Allen & Heath AVANTIS w/ DPACK
(Allen & Heath AVANTIS with DPACK)
