High-Quality Dante/AES67 Audio I/O Expander for Professional Stage Applications

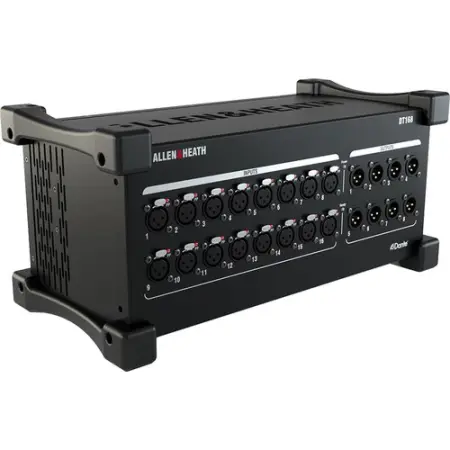

The Allen & Heath DT168 is a 16x8 Dante/AES67 audio I/O expander designed for seamless integration with dLive and SQ series mixers, making it an ideal choice for live stage applications in houses of worship, concert venues, theaters, and more. Featuring 16 low-noise microphone preamps and eight line outputs, all on balanced 3-pin XLR connectors, the DT168 delivers the pristine audio quality and flexibility that modern productions demand. With 32-bit / 96 kHz converters, this expander ensures high-resolution audio capture and playback, essential for professional-grade sound systems.

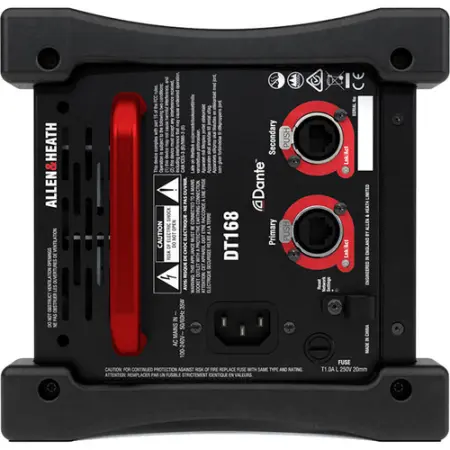

The DT168 is equipped with primary and secondary locking etherCON ports, providing secure connections to your Dante or AES67 audio network. These ports support redundant mode for simultaneous connection to primary and secondary networks or switched mode for daisy-chaining multiple expanders. Control gain, pad, and phantom power settings directly from your dLive or SQ mixer, ensuring tight integration and ease of use. The built-in carry handle and rubber bumpers make the DT168 highly portable and stage-friendly, perfect for both permanent installations and on-the-go applications.

Allen & Heath DT168 Competitive Differences

  • 16 mic/line inputs and eight line outputs in a compact, stagebox form factor.
  • Acclaimed Allen & Heath preamps with 96 kHz converters for superior audio quality.
  • Primary and secondary locking etherCON ports for secure and reliable network connections.
  • Supports redundant and switched modes for flexible network configurations.
  • Control gain, pad, and phantom power directly from dLive or SQ mixers.
  • Built-in carry handle and rubber bumpers for easy transport and stage use.
  • Compatible with AES67 and ready for Dante Domain Manager.

Allen & Heath DT168 Features

  • 16 mic/line inputs and eight line outputs on balanced 3-pin XLR connectors
  • 32-bit / 96 kHz converters for high-resolution audio
  • Primary and secondary locking etherCON ports for Dante/AES67 network integration
  • Redundant mode for simultaneous connection to primary and secondary networks
  • Switched mode for daisy-chaining Dante expanders or digital splits between FOH and monitor mixers
  • Add up to 16 units to a dLive or SQ system with a compatible Dante card (sold separately)
  • Gain, pad, and phantom power controllable from dLive or SQ mixers
  • 16 phantom power status LEDs for easy monitoring

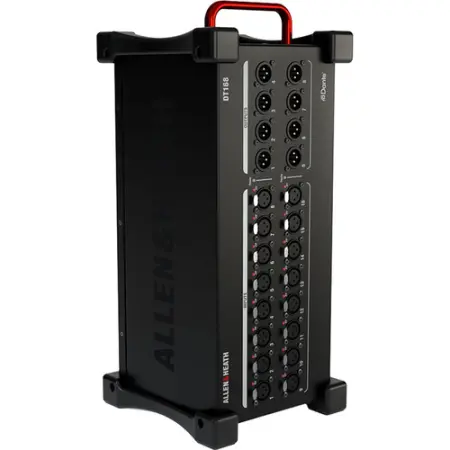

  • Built-in carry handle and rubber bumpers for portability
  • 19" rackmount kit available separately

Allen & Heath DT168 Specifications

  • Power: 100 to 240 VAC, 50/60 Hz
  • Power Consumption: 40 W (Maximum)
  • Operating Temperature: 32 to 104°F / 0 to 40°C
  • Dimensions: 13.1 x 7.5 x 7.3" (33.3 x 19.1 x 18.5 cm)
  • Weight: 10.1 lb (4.6 kg)

Packaging Information

  • Package Weight: 13.605 lb
  • Box Dimensions (LxWxH): 21.9 x 12.5 x 12.3"

Allen & Heath DT-168 (Allen & Heath DT 168)

Brand Allen & Heath
Name Allen and Heath DT168 | 16x8 Dante/AES67 Audio I/O Expander
Primary Category Audio I/O Expander

Connectivity Protocols Dante, AES67
Power Consumption 40 W (Maximum) W
Wattage 100 to 240 VAC, 50/60 Hz watts

Dimensions 13.1 x 7.5 x 7.3 inches (33.3 x 19.1 x 18.5 cm)
Included Accessories 19" rackmount kit available separately
Transportability Built-in carry handle and rubber bumpers for portability
Weight 10.1 lb (4.6 kg) kg

Warranty Length Not specified years

Power: 100 to 240 VAC, 50/60 Hz; Power Consumption: 40 W max; Dimensions: 13.1 x 7.5 x 7.3 inches (33.3 x 19.1 x 18.5 cm); Weight: 10.1 lb (4.6 kg); Operating Temperature: 32 to 104°F (0 to 40°C).

16 mic/line inputs and 8 line outputs on balanced 3-pin XLR connectors; 32-bit / 96 kHz converters; Primary and secondary locking etherCON ports; Redundant and switched network modes; Control of gain, pad, and phantom power from dLive or SQ mixers; 16 phantom power status LEDs; Built-in carry handle and rubber bumpers; Compatible with AES67 and Dante Domain Manager.
