American Audio 19 MXR
DISCONTINUED
1 Photos
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

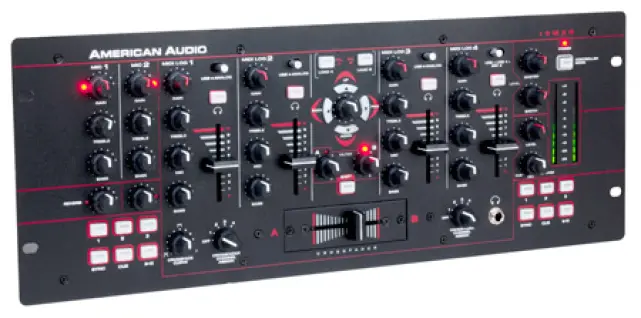

American Audio 19 MXR (American DJ 19MXR - MXR941)
The American Audio MXR Series offers DJs the tactile feel and operation of a traditional DJ mixer while playing and controlling music from software on their computer.
The American Audio 19 MXR is a 19-inch, 4-Channel MIDILOG™ Mixer with Midi/Analog control,
built-in DSP D-Core Sound Card with 4-In/4-Out audio interface, Balanced XLR
Outputs, MIDI Navigation Controls and user assignable control buttons to make it
easy to customize and play your music.
American Audio 19MXR Specifications:
• 19-inch, 4-Channel MIDILOG™ Mixer (compatible with any “Midi Learn” Software
or Analog Inputs – such as CD Players, Turntables, etc.)
• Inputs: 4 Line, 2 Phono, 3 Mics
• 20 On-board Midi Control Buttons (Mapable)
• MIDI interface (USB MIDI I/O)
• Built-in DSP D-Core™ Sound Card with 4-In/4-Out audio interface
• Controller Mode: When activated USB output streams are routed through master
and headphone outputs
• Balanced XLR Outputs
• 3-Band EQ with Rotary Kills (Treble, Mid & Bass)
• Midi Navigation Controls to allow easy software navigation of your music
library
• Crossfader Curve Adjustment
• Crossfader Channel Assign
• Master, Booth, Headphone Level & Mix Controls
• Microphone Volume Control + 2-Band EQ (Treble & Bass)
• Microphone Reverb Control
• Mic 3 routed through channel MIDLOG™ 4
• Crossfader Assignable Low/High Pass Filter Control
• 10 segment VU meter
• Audio inputs: RCA
• Microphone inputs: 1x Balanced XLR, 2x ¼” Balanced
• Headphone input: ¼” Stereo
• Multi-voltage operation: AC 100V~240V 50/60Hz
• Dimensions (LxWxH): 19”x7.25”x 3.5” / 482x178x85mm (19-inch R.M. – 4 spaces)
• Weight: 8 lbs. / 3.4 kg.
I waited a few to post a review so I could fully check it out. This is a very nice mixer with allot of great features. Thanks to this I was able to pull my controller from the rack saving space. Since the MXR 19 is a mixer and controller built in to one there is no need for an external controller ( unless you are battle mixing, want scratch, or time codes ). The midi control is fully mappable, it has a sound card built right in, and the mixer can be used as both Analog & USB , I have two channels running my virtual decks and two channels running CD players for backup. It comes with VDJ LE which is good if you are only mixing music. However I am using the VDJ Pro version since I included music video with my shows and need the video out features of Pro. It also has 3 microphone inputs which in my opinion is the only con I found on this mixer so far. The mic channels have a nasty hiss to them even when the level is down ( this is the reason for a 4 instead of 5 star rating ). Over all it is a very nice unit that does exactly what it's advertised to do. I just hope ADJ / AA addresses the mic channel hiss issues as I have spoke with other owners of this that experience the same hissing from theirs as well. If you can live with a little mic hissing when mic is engaged this mixer will impress :)
