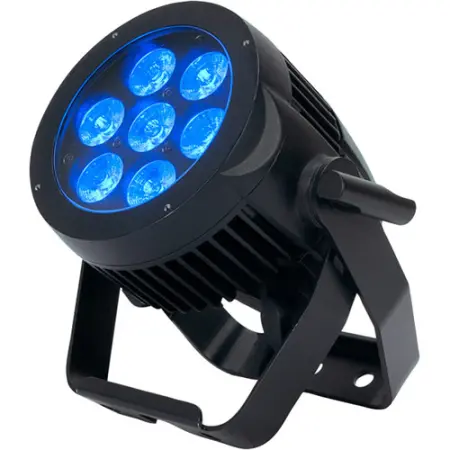

The ADJ 7P Hex IP is a versatile IP65 outdoor rated Par with 7 x 12-Watt (6-IN-1 HEX) LEDs. With a 25-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting indoor stages and venues, but with IP 65 rating, it is a great solution for temporary outdoor lighting of stages or events. The IP 65 rating helps protect the fixture from rain, snow and dust.
7P HEX IP professional features include: 4 DMX modes, 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. The unit is equipped with outdoor Locking Power connectors and IP rated 5-pin (Older models may be 3-pin) DMX rubber covers and connectors. IP rated power linking and DMX cables are available, but standard 5-pin DMX cables may also be used for indoor applications (standard cables will not create an IP65 seal).
Optical:
Light Source: 7 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV LED) - Rated at approximately 50,000 hrs.)
Beam angle: 25-degree
Features:
5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
63 built-in Color Macros
Flicker Free operation (No flickering on camera)
5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
LED pulse and strobe effect
Electronic Dimming: 0 - 100%
Supports RDM (Remote Devise Management)
Scissor Yoke & safety eye

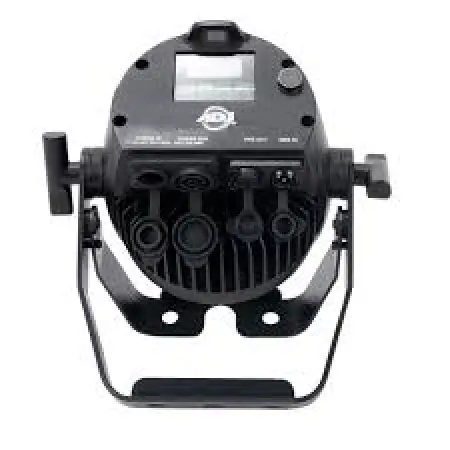

Connections:
IP65 PowerLock AC In/Out connections
IP65 Data linkable via 5-pin XLR cables
Daisy chain: 16 units (120V); 34 units (220V)
Control:
4-button, DMX digital display on rear panel
6 DMX Modes: 6, 6+, 9, 9+, 10, & 12-channel
Dimensions / Weight:
Dimensions (LxWxH): 10” x 6.5” x 9.25” / 256x161.7x232.5mm
Weight: 7.5 lbs. / 3.3 kg.
Certifications:
IP Rating: IP65 Outdoor Rated
Included in Box:
IP65 PowerLocking cable
ADJ 7P Hex IP
(American DJ HEX700)
