Wireless Battery-Powered Uplighting System for Events
The
ADJ Lighting Element H6 Pak Chr is a complete event uplighting solution featuring six IP54-rated battery-powered chrome fixtures, housed in a durable flight case with a built-in charging system. Designed for both indoor and temporary outdoor use, this system provides vibrant RGBAW+UV color mixing, wireless DMX control, and extended battery operation—perfect for event professionals, DJs, and stage productions.
ADJ Element H6 Pak Chr Competitive Differences
- IP54-rated fixtures for resistance against dust and water splashes

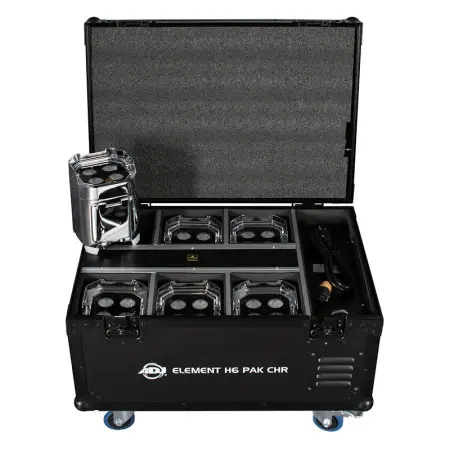

- Includes a rugged flight case with an integrated charging system
- Built-in Aria X2 wireless DMX with signal LED indicator
- High-power 4 x 20W RGBAW+UV LEDs per fixture for rich, customizable colors
- Battery-powered operation with up to 12 hours of runtime
- Multiple operational modes, including wireless DMX, static color, and auto-run
- OLED display for intuitive navigation
- Energy-saving mode for extended performance
- Wireless remote (UCIR24) included for added control
ADJ Element H6 Pak Chr Description
The

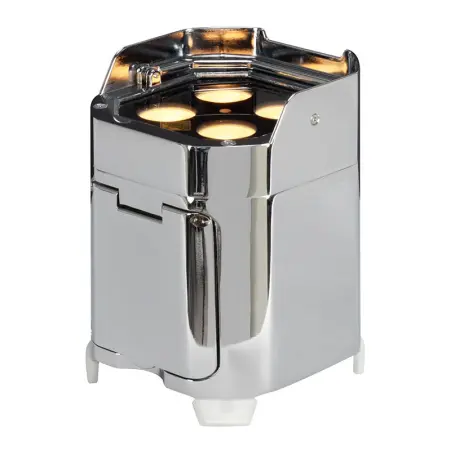

ADJ Element H6 Pak Chr is a premium uplighting kit designed to deliver vibrant illumination with ultimate portability and ease of use. Each fixture features four 20-watt RGBAW+UV LEDs, providing smooth color mixing for dynamic stage or wall washes. The built-in lithium battery ensures up to 12 hours of operation in energy-saving mode, making it ideal for extended events.
With wireless DMX capabilities and multiple DMX channel modes, these fixtures allow for precise lighting control without the need for complex wiring. The included flight case not only protects the fixtures but also serves as a convenient charging station, ensuring all units are powered and ready for your next event. Whether used for weddings, concerts, or corporate functions, the Element H6 Pak Chr offers unmatched versatility and performance.
Element H6 Pak Chr Features
- Battery-powered, IP54-rated LED uplighting system
- Includes six chrome-finish fixtures
- Flight case with integrated charging system
- Wireless DMX and infrared remote control options
- RGBAW+UV LED color mixing for a wide color spectrum
- Multiple dimming curves and operational modes
- OLED display for easy settings adjustment
- Battery indicator for real-time charge status
- Electronic dimming (0-100%) with six dimming modes
- LED strobe and pulse effects (0.2Hz-11Hz)
- Flicker-free operation, ideal for video applications
- Built-in kickstand for precise fixture angling
Element H6 Pak Chr Specifications
- Light Source: 4 x 20W RGBAW+UV LEDs (6-in-1)
- Beam Angle: 17.6°
- Field Angle: 28.7°
- Battery: 14.8V, 4000mAh lithium polymer
- Battery Life: 6 hours (normal mode), 12 hours (energy-saving mode)
- Battery Charge Time: 6 hours
- Control Protocol: Wireless DMX (Aria X2), UCIR24 remote
- DMX Channel Modes: 6, 8, 9, 12, 14, 15, or 17 channels
- Power Draw: 20W per fixture
- Operating Voltage: DC17V
- Dimensions (per fixture): 5.64” x 5.67” x 7.65” (143.38 x 144.06 x 194.5mm)
- Weight (per fixture): 5.3 lbs. (2.4kg)
- Flight Case Dimensions: 26.42” x 18.15” x 17.76” (671 x 461 x 451mm)
- Flight Case Loaded Weight: 84.66 lbs. (38.4kg)
- Power Input: AC100-240V, 50/60Hz
- Max Power Consumption: 200W
- IP Rating: IP54 (fixtures), IP65 (power input/output)
- Certifications: cETLus, CE Compliant

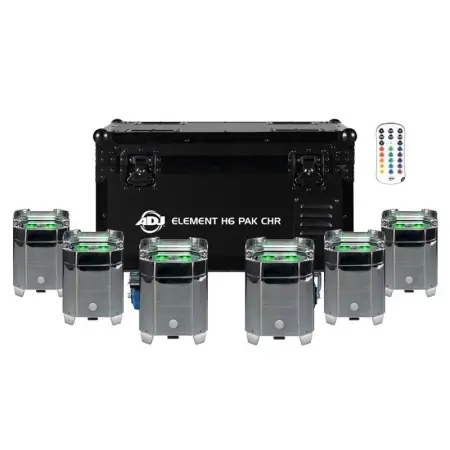

What's In The Box
- (6) Element H IP Chr Fixtures
- (1) Element H6 FC Flight Case with Charging System
- (1) UCIR24 Remote Control
- (1) AC Power Cable
- (6) Charging Bases
ADJ Element H6 Pak Chrome
(American DJ Element H6 Pak CHR)
