Hybrid LED Moving Head
The

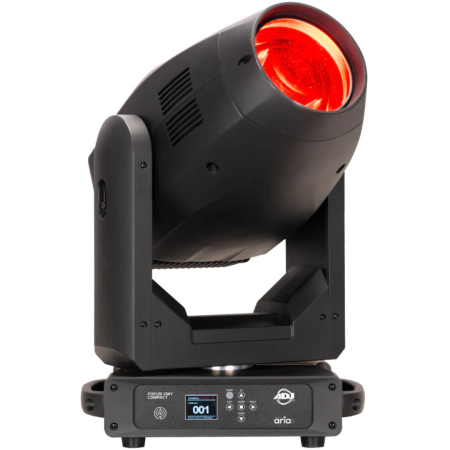

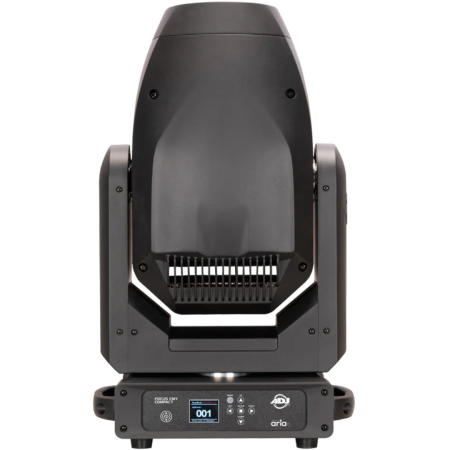

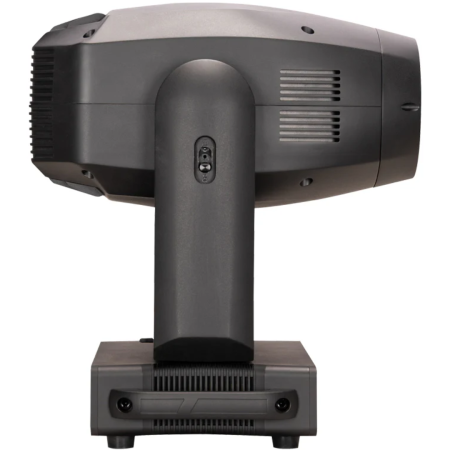

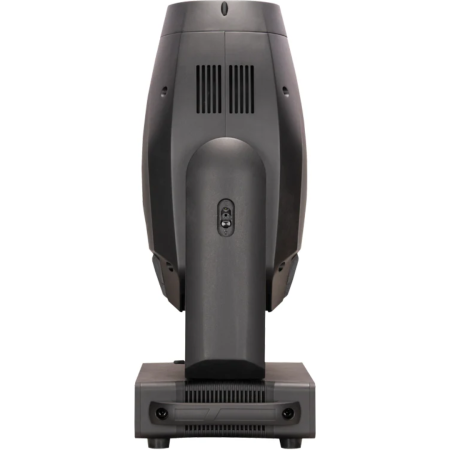

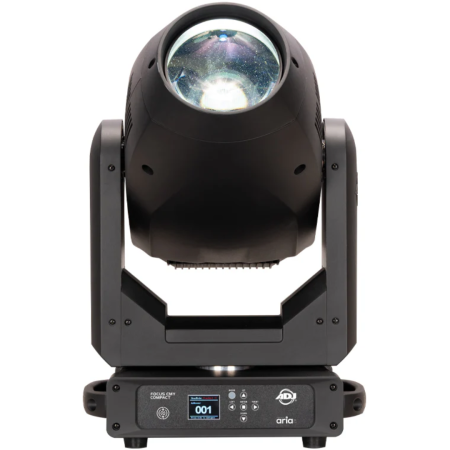

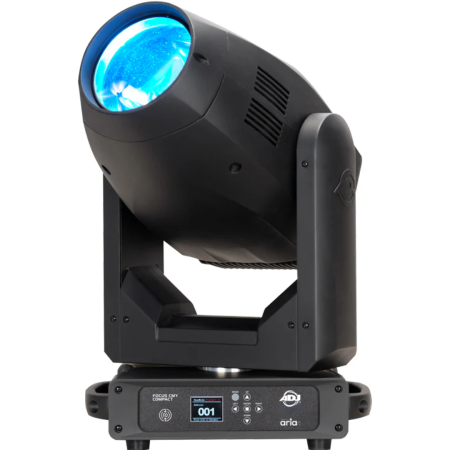

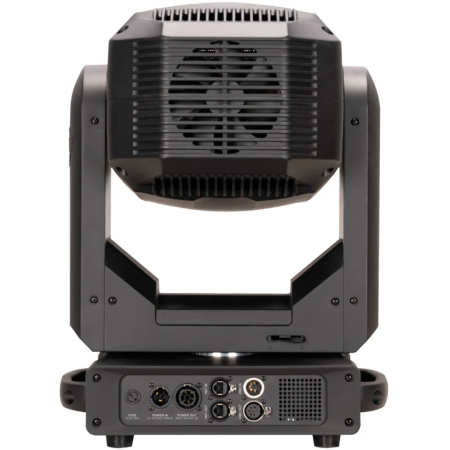

American DJ Focus CMY Compact is a powerful and versatile automated luminaire that functions as a beam, spot, or wash. Ideal for touring, corporate events, theaters, and houses of worship, it features a 400W LED engine that delivers up to 14,500 lumens of output—all packed into a compact, under-45 lb fixture.
American DJ Focus CMY Compact Competitive Differences
- Full CMY + CTO color mixing with additional 7-slot dichroic color wheel
- Motorized zoom (3°–52°) enables beam, spot, and wash functionality in one unit
American DJ Focus CMY Compact Description
The
Focus CMY Compact redefines versatility in compact moving heads. Powered by a 400W LED engine with a 6900K native color temperature, it produces rich, vibrant output with a max brightness of 14,500 lumens. This hybrid fixture offers full CMY color mixing and a variable CTO system (3200K–8500K), giving lighting designers precise control over mood and tone.
It’s packed with creative tools including two GOBO wheels—one with 8 rotating, indexable gobos and another with 10 static patterns—plus dual rotating prisms (circular and linear) and dual frost filters for dynamic beam and wash effects. A motorized zoom range of 3° to 52° allows seamless transitions between narrow beams and wide washes.
The fixture supports a wide range of control protocols including DMX, RDM, Art-Net, and sACN, and is equipped with ADJ’s Aria X2 wireless system and NFC configuration for streamlined setup. A 6-button touch panel and full-color reversible LCD menu enhance usability, while rugged build quality ensures dependable operation on the road or in permanent installs.
At just 44.5 lbs., the Focus CMY Compact offers top-tier performance in a form factor that’s easy to transport, rig, and maintain—making it a go-to choice for professionals who demand power and flexibility without excess bulk.
Model Features
- 400W LED engine with 14,500 lumens output
- Full CMY color mixing with variable CTO (3200K–8500K)
- 7-slot color wheel including High CRI filter
- Dual GOBO wheels: 8 rotating + 10 static patterns
- 6-facet circular and linear rotating prisms
- Motorized zoom (3°–52°) and motorized focus
- Supports DMX, RDM, Art-Net, sACN + Aria X2 wireless
- Touch panel with full-color reversible LCD screen
- 3-pin and 5-pin XLR, RJ45, and IP65 locking power I/O
Model Specifications
- Light Source: 400W LED Engine (6900K ±350K)
- Output: 14,500 Lumens
- CRI: 64 (80/90 with optional High CRI Filter)
- Zoom Range: 3°–52° (motorized)
- Pan: 540° / 630°, Tilt: 270° (with locks)
- DMX Modes: Basic / Standard / Extended
- Control Protocols: DMX, RDM, Art-Net, sACN
- Display: Full-color 180° reversible LCD with 6-button touch panel
- Power: AC 100–240V, 50/60Hz
- Max Power Consumption: 450W @ 220V
- Operating Temp: -13°F to 113°F (-25°C to 45°C)
- Dimensions: 14.2 x 9.3 x 23.5 in (360 x 234 x 597 mm)
- Weight: 44.5 lbs (20.2 kg)
What's In The Box
- Focus CMY Compact fixture
- Power cable
- 2 x Omega brackets
American DJ Focus CMY Compact
(American DJ FOC871)
