American DJ Freq 5 Strobe
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
*Discontinued

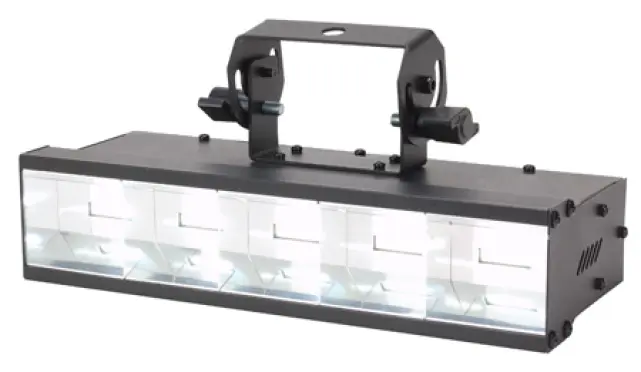

American DJ FREQ 5 Strobe (ADJ FREQ5)
Add more creativity to your lightshow with the American DJ FREQ-5 revolutionary 5-Zone LED Strobe. This 2-FX-IN-1fixture features a traditional LED strobe + 5-Zone chase effect. The Zone chase effect gives lighting designers the ability to display this strobe bar vertical or horizontal creating chasing white light for a dynamic energy-driven light show. The FREQ 5 offers full DMX control with 4 DMX channel modes, dimming, strobe speed and chase speed. Users can also run the FREQ 5 in sound active mode, or manually control strobe speed and dimming on the back of the unit from it’s potentiometer knobs. The FREQ 5 uses five 5-Watt bright white LEDs and consumes a maximum of 28-Watts of power.
Specifications:
• Revolutionary 5-Zone LED Chasing Strobe
• 2-FX-IN-1: Traditional LED Strobe + 5-Zone chase effect
• 5x 5-Watt White bright LEDs (30,000 hr. rated)
• 4-Button DMX LED Display
• 3 Operational modes: DMX controller, Master/Slave & Sound Active
• 4 DMX Channel modes (1, 2, 5 or 7 Ch.)
• Strobe speed: control via DMX or manually from the potentiometer knob on rear
• 0-100% dimming: control via DMX or manually from the potentiometer knob on
rear
• Includes exciting sound activate built-in programs
• Contrast Effect Movement (Master/Slave mode): LED effect will move in opposite
directions
• Strobes 1200 times per minute.
• No Moving Parts
• Fan cooled
• Runs extremely cool! - NO Duty Cycles! – Run all night!
• Includes hanging bracket + safety hook on rear panel
• IEC AC IN/OUT on rear to daisy-chain power (up to 13 units)
• Compatible with American DJ UC3 Series easy-to-use controllers (sold
Separately)
• Power Consumption: 28W maximum
• Multi-voltage operation: AC 100-240V 50/60Hz- IEC socket
• Dimensions (LxWxH): 12”x 5.5”x 5.5” / 302x140x140mm
• Weight: 5 lbs. / 2 kg.
• ETL approved
Got a pair of these the other day and have been impressed with them so far. Decent build quality although internal fans are a little noisy. The lights themselves are painfully bright to the point where you don't want to leave them on for very long at full intensity unless you want to make people really mad at you. Strobing is extremely fast to the point where my cell phone camera no longer sees lit LED cells and just catches the pure flash in the frame. I'm not sure what the actual effective distance is but from at least 40ft away they still made my eyes hurt if I looked at them for more then a glance.<br /> <br /> The internal programs vary in usefulness but all respond meaningfully to the audio sync. Slave connection worked with no issues. I expect DMX control to be just as plug and play. All in all for small through largish-medium venues these things will have massive impact, just be considerate in how you program them!
They're an awesome replacement for xenon strobes. I'm using them to "Blind" and strobe right now. It doesn't get much better than this without spending a lot more money.
awesome strobe use them at different events i also use them to light up the area just like a flood light to get people out of the club
