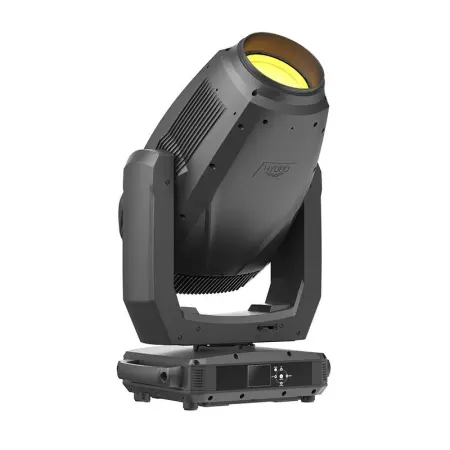

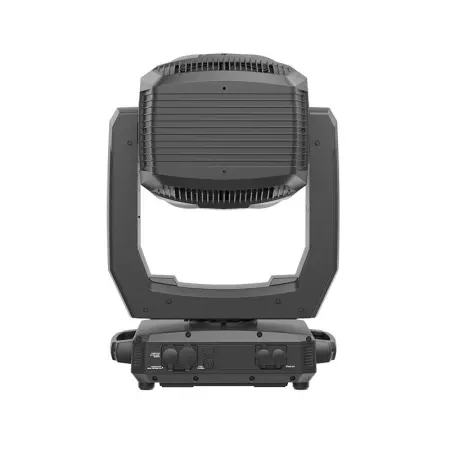

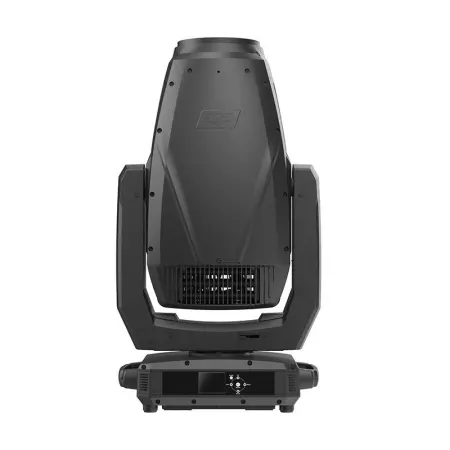

American DJ Hydro Hybrid

$4,999.99 Available
$0 Tax $729 Back or Join VIP for upfront discounts.

American DJ Hydro Hybrid

Part of ADJ’s Hydro Series, the Hydro Hybrid is a IP65-rated hybrid moving head that produces a beam, spot and wash effect powered by a 420-Watt Osram SIRIUS HRI discharge lamp.

SPECIFICATIONS:

SOURCE:
Osram SIRIUS HRI 420W Dishcharge Lamp
Full Power (420W)  and Eco Mode (330W) operation
Up to 4,000 Hour Lamp Life
**Test lab conditions. May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.

PHOTOMETRIC DATA:
Lumens: Beam Mode:12,319, Spot Mode:14,416
Lux: Beam Mode:562,600, Spot Mode:223,200 (@5m, zoomed out
CRI: 77 +/- 5
Correlate color temperature: 6500K +/- 300K
Zoom Range: Beam Mode: 1.6°-17.7° / Spot Mode: 3.1°-39.2°

EFFECTS
Beam, Spot and Wash
Motorized Zoom
Frost Filter (Heavy)
2 Prisms on Dual Planes, 8 facet circular / 6 facet linear
CMY/Color Macros
Gobo/Prism Macros
Motorized Focus
High Speed Shutter and Strobe
Pan Degree: 540°/630°
Tilt Degree: 270°

COLOR:
Full CMY Color Mixing System
White Color Temp Presets
12 Position Color Wheel
27 Color Macros (Color Wheel + CMY)

GOBOS:
2 Gobo Wheels
9 Interchangeable-Rotating / Indexing Glass Black&White Gobos
14 Static-Stamped Metal Gobos

CONTROL / PHYSICAL:
DMX and RDM Protocols
3 DMX Channel Modes (24, 28 & 32)
1 User Assignable DMX Channel Mode
Aria X2 Wireless Management / DMX System
(4) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
Outdoor, IP66 5pin DMX In/Out
Outdoor, IP66 Locking Power In/Out
Pan/Tilt Locks

SIZE / WEIGHT:
Length: 11.4” (290mm)
Width: 16.31” (414.27mm)
Height: 29.17” (741mm)
Weight: 69.7 lbs. (31.6 kg)

ELECTRICAL / THERMAL:
AC 100-240V 50/60Hz
580W Max Power Consumption
-4° to 113°F (-20°C to 45°C)

APPROVALS / RATINGS:
CE
cETLus (Pending)
IP65

ADJ HYDRO HYBRID (American DJ Hydro Hybrid Moving Head)

Research with AI

Beam Angle Beam Mode: 1.6°-17.7°, Spot Mode: 3.1°-39.2° degrees
IP Rating IP65
Lumen Output Beam Mode: 12,319 lumens, Spot Mode: 14,416 lumens lumens
Power Consumption 580W Max W
Power Rating 420 Watt Osram SIRIUS HRI discharge lamp W
Voltage Range AC 100-240V 50/60Hz V
Wattage 420W Full Power, 330W Eco Mode W

Brand American DJ
Name American DJ Hydro Hybrid
Primary Category Moving Head Light

Control Interfaces DMX and RDM Protocols, Aria X2 Wireless Management / DMX System, 4 Button Touch Panel, Full Color 180° Reversible LCD Menu Display
Wireless Capabilities Aria X2 Wireless Management / DMX System

CRI 77 +/- 5

Dimensions Length: 11.4” (290mm), Width: 16.31” (414.27mm), Height: 29.17” (741mm) mm
Weight 69.7 lbs. (31.6 kg) kg

Warranty Length Not specified years

Source

Osram SIRIUS HRI 420W Discharge Lamp with Full Power (420W) and Eco Mode (330W) operation, up to 4,000 hour lamp life.

Photometric Data

Lumens: Beam Mode 12,319, Spot Mode 14,416. Lux: Beam Mode 562,600, Spot Mode 223,200 (@5m, zoomed out). CRI: 77 +/- 5. Correlated color temperature: 6500K +/- 300K. Zoom Range: Beam Mode 1.6°-17.7°, Spot Mode 3.1°-39.2°.

Effects

Beam, Spot and Wash effects with motorized zoom, frost filter, dual-plane prisms, CMY/color macros, gobo/prism macros, motorized focus, high speed shutter and strobe, pan 540°/630°, tilt 270°.

Color

Full CMY color mixing system, white color temperature presets, 12 position color wheel, 27 color macros.

Gobos

2 gobo wheels with 9 interchangeable rotating/indexing glass black & white gobos and 14 static stamped metal gobos.

Control and Physical Features

DMX and RDM protocols, 3 DMX channel modes (24, 28 & 32), 1 user assignable DMX mode, Aria X2 wireless DMX system, 4 button touch panel, full color 180° reversible LCD menu display, outdoor IP66 5pin DMX in/out and locking power in/out, pan/tilt locks.

Size and Weight

Length: 11.4” (290mm), Width: 16.31” (414.27mm), Height: 29.17” (741mm), Weight: 69.7 lbs. (31.6 kg).

Electrical and Thermal

AC 100-240V 50/60Hz, 580W max power consumption, operating temperature -4° to 113°F (-20° to 45°C).

Approvals and Ratings

CE certified, cETLus pending, IP65 rated.
