ADJ myDMX 5 | DMX Lighting Control Hardware/Softwa...
$719.99
The ADJ myDMX 5 is a DMX lighting control system combining a USB-C hardware interface with powerful software for Windows and Mac computers. Designed for mobile DJs, lighting designers, nightclubs, theaters, and event production companies, it provides 1,024 live DMX channels across two universes, expandable to 2,048 channels across four universes with optional upgrades. Featuring over 20,000 lighting fixture profiles, a 3D visualizer, Super Scene timeline programming, MIDI control, and standalone playback capabilities, myDMX 5 offers flexible lighting control for both live performances and programmed installations.
The ADJ myDMX 5 combines advanced lighting software with a dedicated DMX hardware interface to provide comprehensive control over compatible stage and entertainment lighting fixtures. Its intuitive software interface allows users to patch fixtures, create scenes, program effects, and control lighting during live events. With two DMX universes and 1,024 live channels included, the system accommodates a variety of lighting setups, while optional upgrades expand its capacity to four universes and 2,048 live channels. The extensive library of more than 20,000 fixture profiles helps simplify configuration for different types of DMX lighting equipment.
The redesigned software introduces powerful creative tools for programming detailed lighting sequences. Super Scene allows multiple scenes to be combined along a timeline for precise synchronization, while the advanced FX engine supports effects across different channel types. A built-in 3D visualizer provides a preview of programmed lighting looks, helping operators refine shows before connecting or activating fixtures. The drag-and-drop patch grid and 2D position view further simplify fixture organization and effect programming.
For live performances, myDMX 5 includes a dedicated Live Mixer with convenient controls for dimming, color changes, strobes, and blinder effects. Live Playback rotary controls allow adjustment of scene intensity, speed, phase shift, and effect size. Scenes can run forward, backward, or in alternating directions, with programmable segments triggered through GO commands or BPM synchronization. Music synchronization features include tap tempo, MIDI clock, Ableton Link, and line-in audio response, making the system particularly useful for DJ performances, concerts, and music-driven productions.

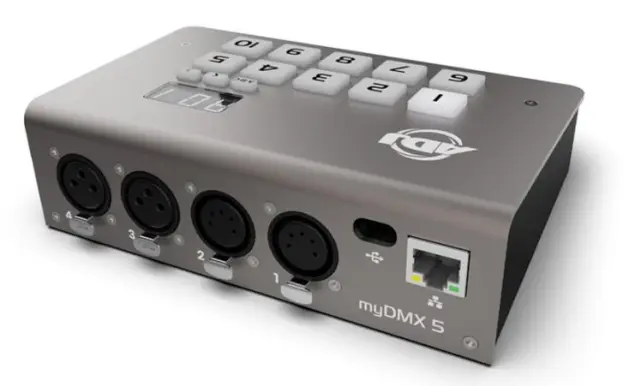

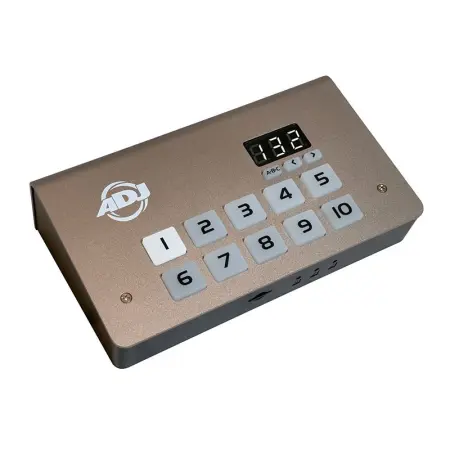

The hardware interface features ten scene-trigger buttons, two 3-pin XLR DMX sockets, two 5-pin XLR DMX sockets, USB-C connectivity, and an RJ45 Ethernet port. Standalone operation allows playback of up to 99 stored scenes across five pages without requiring an active computer connection. A supplied 256MB SD card provides memory for stored scenes. The hardware includes 512 standalone DMX channels, with additional standalone channel capacity available through optional upgrades. The RJ45 connection can be used instead of USB for network communication and remote standalone control; it does not directly output Art-Net.
For added flexibility, myDMX 5 supports customized touchscreen control layouts and remote operation through the myDMX 5 Remote app for iOS and Android devices. Users can create control screens with buttons, faders, and color wheels to manage lighting from compatible mobile devices over a local network. MIDI mapping and keyboard control provide additional options for integrating the software into live performance setups. From mobile DJ systems and stage productions to nightclubs, houses of worship, and permanent lighting installations, myDMX 5 provides a scalable platform for creating and controlling complex lighting shows.
| App Control | iOS and Android |
| Brand | ADJ |
| Name | ADJ myDMX 5 |
| Primary Category | DMX Lighting Control Hardware and Software |
| SKU | MYD500 |
| Channels | 1024 |
| DMX Channel Modes | 2 |
| Connectivity Protocols | 2 x 3-Pin XLR and 2 x 5-Pin XLR |
| Included Accessories | 256MB SD Card |
| Warranty Length | CE Certified years |
