Pixel LED Strip Driver
The
ADJ Pixie Driver 2000 V3 is a powerful and versatile control solution for the Pixie Strip Series, offering both simple manual control and advanced pixel mapping via Art-Net and sACN. Designed for use with Pixie Strip 30, 60, 120, and Pixie Curve 60 models, it supports up to 2040 total pixels (1020 per output), with easy integration into live production or installation environments.
ADJ Pixie Driver 2000 V3 Competitive Differences
- Dual-output controller supports up to 2040 pixels via Art-Net/sACN
- Built-in OLED screen with 4-button menu for manual dimming and strobe control
ADJ Pixie Driver 2000 V3 Description
The
Pixie Driver 2000 V3 provides seamless power and data control for ADJ’s Pixie Strip series. Whether you're pixel mapping via Art-Net/sACN or using its on-board controls for manual dimming and strobe, this unit gives lighting designers a robust and flexible solution. It's RDM compatible and includes internal programs as well as a manual RGB mode for simplified control when full programming isn't needed.

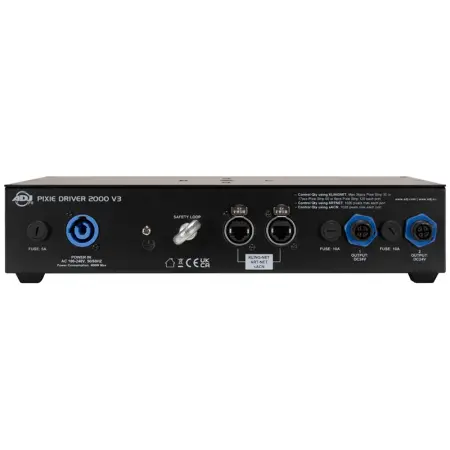

With two 4-pin proprietary outputs (cables sold separately), this driver can control up to 34 Pixie Strip 30s, 17 Pixie Strip 60s or Curve 60s, or 8 Pixie Strip 120s per port—making it ideal for custom installations or dynamic stage productions. Locking RJ45 Ethernet ports provide reliable data input and output, and a USB port is included for firmware updates.

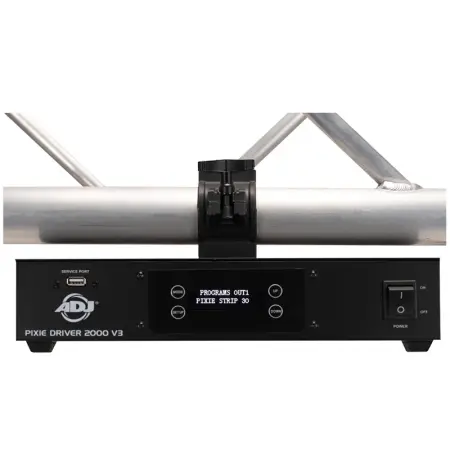

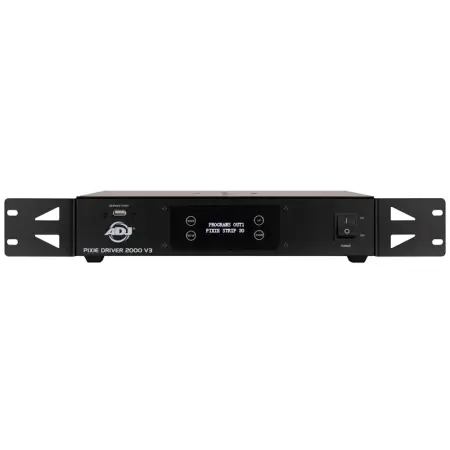

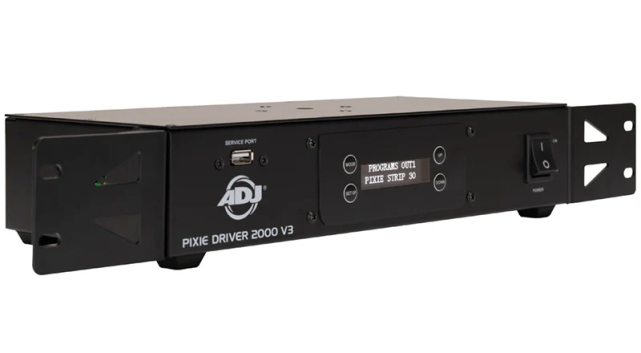

The unit is rackmountable (19-inch ears included) and also offers clamp mounting options for truss applications. A twist-lock power cable is included for secure AC connection, and the system is CE and cETLus certified for dependable performance in professional environments.
Model Features
- Control for Pixie Strip 30, 60, 120 & Pixie Curve 60
- 2040-pixel max control (1020 per output)
- Art-Net and sACN protocol support
- Manual RGB, dimming, and strobe control
- OLED screen with 4-button menu interface
- RDM compatible and USB firmware updatable
Model Specifications
- Max Pixels: 2040 (1020 per port)
- Power Consumption: 400W max
- Dimensions: 18.9 x 7.11 x 2.91 in (480 x 180.8 x 74 mm)
- Weight: 5.6 lb (2.5 kg)
- UPC: 810087373535
What's In The Box
- Twist-lock power cable
- 19-inch rack mount ears
- 4-pin data cable
ADJ PIX274
(American DJ PIXEL DRIVER 2000 V3)
