American DJ WMS2 Media Sys

High-Resolution LED Display System with Integrated Processor

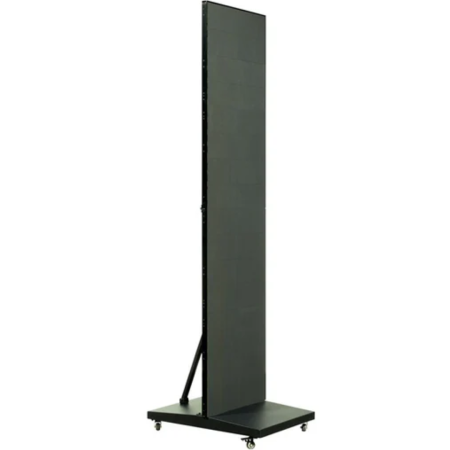

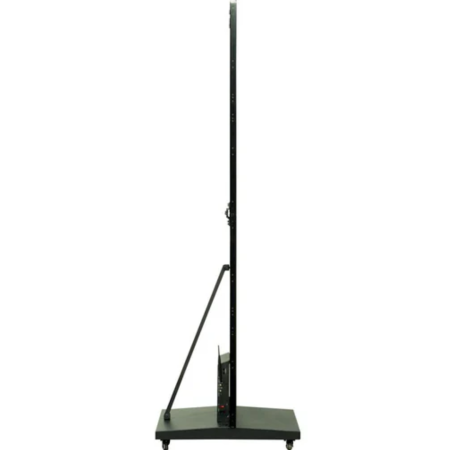

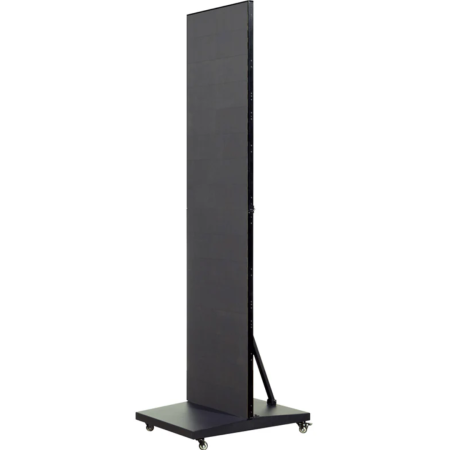

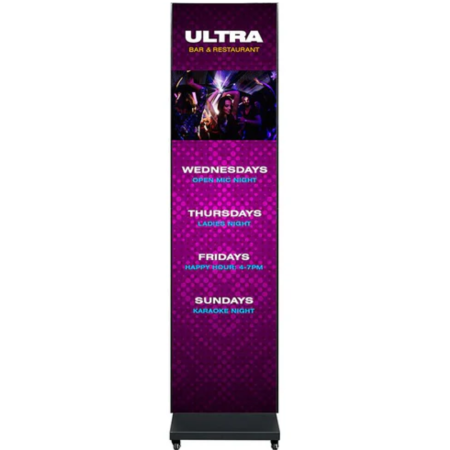

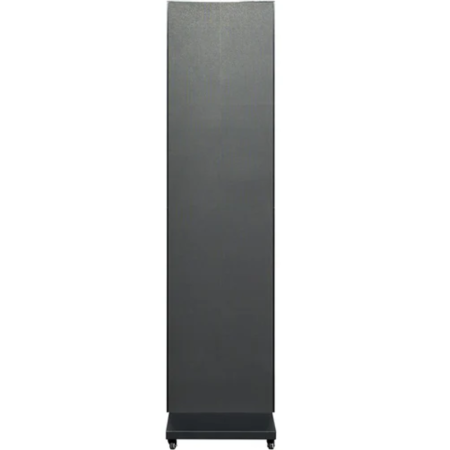

The American DJ WMS2 Media Sys is a complete LED video display solution designed for retail spaces, trade shows, and live events. Featuring two WMS2 LED panels, a built-in Novastar processor, and a rugged flight case, this system provides vibrant visuals, reliable performance, and easy deployment for high-impact digital signage.

American DJ WMS2 Media Sys Competitive Differences

• Ultra-fine 2.6mm pixel pitch for sharp, detailed visuals
• 700–800 nits brightness for vivid playback in well-lit spaces
• High 3840Hz refresh rate with ≥14-bit grayscale for smooth, flicker-free video
• All-in-one system with panels, processor, stand, and flight case
• Front-access maintenance with "Roll and Set" installation method
• Novastar TB50 processor + A8s-N receiving cards for seamless content management
• Energy-efficient LED technology with low average power draw
• ETL-certified panels for professional safety compliance

American DJ WMS2 Media Sys Description

The WMS2 Media Sys by American DJ is a state-of-the-art LED display solution designed for businesses, production companies, and event organizers seeking a high-resolution, easy-to-use video system. Its 2.6mm pixel pitch ensures exceptional clarity and detail, while its wide horizontal (160°) and vertical (140°) viewing angles guarantee visibility across an entire venue.

The system is equipped with two WMS2 LED panels, powered by a Novastar TB50 processor and A8s-N receiving cards for reliable content playback and control. With a brightness level of 700–800 nits, 3840Hz refresh rate, and ≥14-bit grayscale, the WMS2 delivers crisp, flicker-free visuals for video, graphics, and messaging.

Designed for portability and convenience, the system comes with a rolling flight case for safe transport, a display stand with integrated processor, and front-serviceable panels for easy maintenance. The energy-efficient design keeps average power consumption low at just 180W/m², while still supporting a maximum dissipation of 520W/m² when needed.

Built for indoor use, the WMS2 Media Sys is rated IP20, with a working temperature range of -4°F to 104°F (-20°C to +40°C). Whether for branding, live event visuals, or trade show installations, the WMS2 Media Sys combines performance and portability in a single turnkey solution.

WMS2 Media Sys Features

• Complete LED video display system
• Includes 2x WMS2 LED panels, stand with processor, and flight case
• 2.6mm pixel pitch for high-definition video

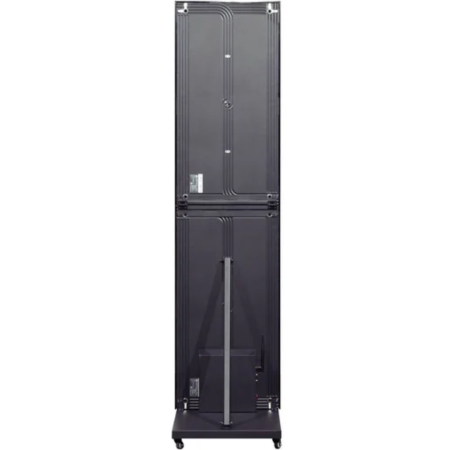

• Front-service maintenance with "Roll and Set" design
• Novastar TB50 processor and A8s-N receiving cards
• 50,000-hour average LED lifespan
• Wide viewing angles: 160° horizontal, 140° vertical
• ≥14-bit grayscale for smooth gradients
• 3840Hz refresh rate for flicker-free visuals
• ETL-certified panels for professional use

WMS2 Media Sys Specifications

• Pixel Pitch: 2.6mm
• Pixel Density: 147,456 dots/m²
• LED Type: SMD1515
• Panel Resolution: 384 x 192 pixels
• Module Resolution: 96 x 96 pixels
• Module Size: 250mm x 250mm
• Brightness: 700–800 nits
• Grayscale: ≥14-bit
• Refresh Rate: 3840Hz
• Average Lifespan: 50,000 hours
• Power Input: 100–240VAC
• Max Power: 520W/m²
• Average Power: 180W/m²
• Environment: Indoor, IP20 rated
• Operating Temperature: -4°F to 104°F (-20°C to +40°C)
• Humidity: 10%–90% (operating and storage)
• System Dimensions (W x H): 19.75" x 84.75" (500 x 2150mm)
• Panel Thickness: 1.32" (33.4mm)
• Flight Case Dimensions (L x W x H): 45.5" x 28.25" x 27.25" (1155 x 714 x 690mm)
• System Weight in Case: 176 lbs. (80kg)
• Certifications: ETL, CE, FCC
• UPC: 810087374228

What's In The Box

• (2) WMS2 LED Panels

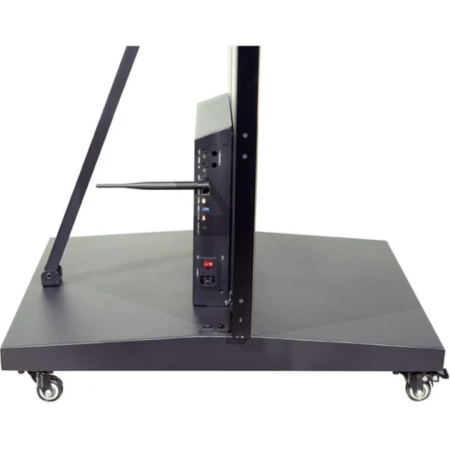

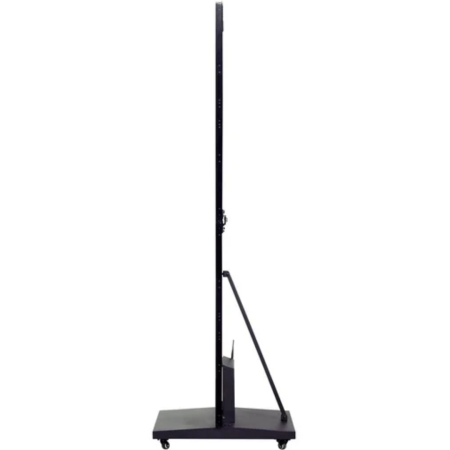

• (1) Display Stand with Integrated Novastar Processor

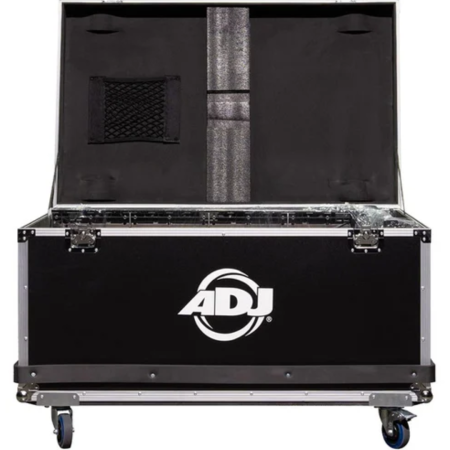

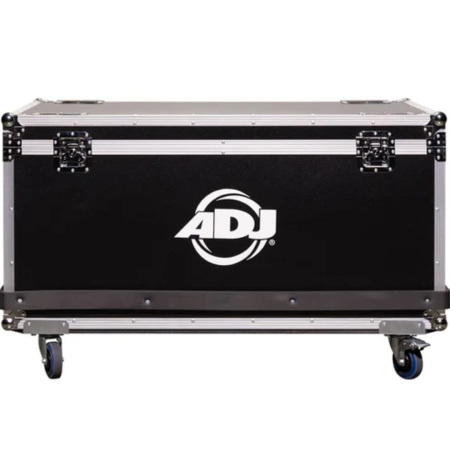

• (1) Flight Case

ADJ WMS2 Media Sys (American DJ WMS2-Media-Sys)
