Antari CH-1D

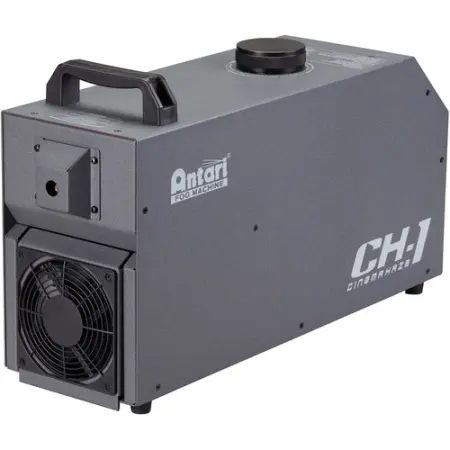

The Antari CH-1 CinemaHaze is a 700 Watt CO2 Oil-Based Haze Machine featuring an almost zero working noise, perfect for filming or applications where silence is crucial, no pump or compressor comes built-in, extremely low fluid consumption, and a max runtime of up to 16 hours.The Antari CH-1 CinemaHaze is perfect for venues that need smooth haze effects and can produce fine particles with a very long hang time. The machine has universal power and can be operated between 110 to 240VAC. The CH-1 requires either CO2 or a Nitrogen gas cylinder to provide necessary pressure to produce haze properly. The CH-1 CinemaHaze comes with a hose which can be connected to a gas cylinder, but gas cylinder is not included and must be purchased from third party.

Specifications:
Input Voltage: AC 100-240V, 50/60 Hz
Rated Power: 700W (120V)
Warm-Up Time: 8 minutes (approx)
Fluid Consumption: 2ml/min @ 40 psi / 2.76 bar
Fluid Tank Capacity: 2.5 liters (0.66 gallons)
Gas Type: CO2, N2
Gas Pressure Range: 50 to 60 PSI / 3.4 Bar to 4.1 Bar
Gas Consumption: 0.36kg / hour @ 40 psi, 0.18kg / hour @ 20 psi
Control Interface: TFT LCD Touch Screen
Ambient Temperature Range: 32F to 104F
Control: Manual, Timer, DMX, Wireless DMX
DMX Channels: 1, 3, and 5 channel
Connections: Neutrik TRUE1 Powercon (Power), 3-Pin & 5-Pin XLR (DMX), 9/16 - 18 R.H (Gas Inlet)
Optional Accessories: WTR-90 Wireless DMX
Dimensions: 22.79" x 6.46" x 12.25"
Weight: 37.48 lbs



Recommended Fluid:
Antari HZL-4
Alternative Option:
Antari HZL-4W
