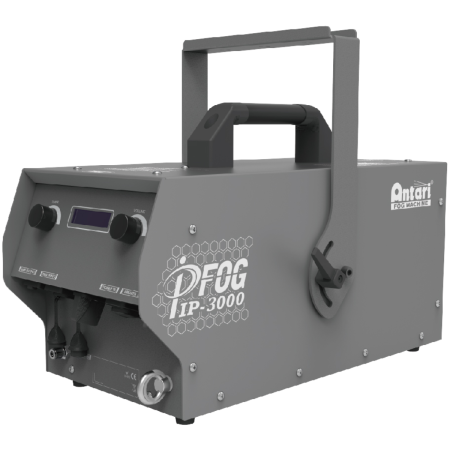

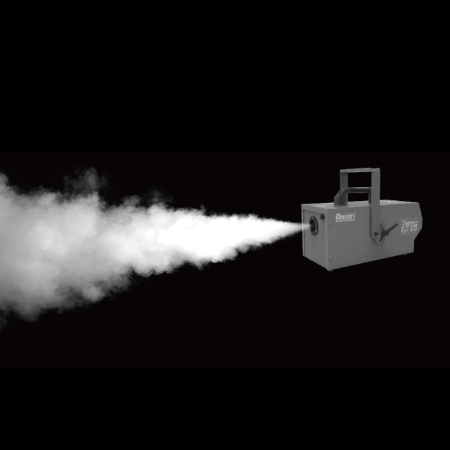

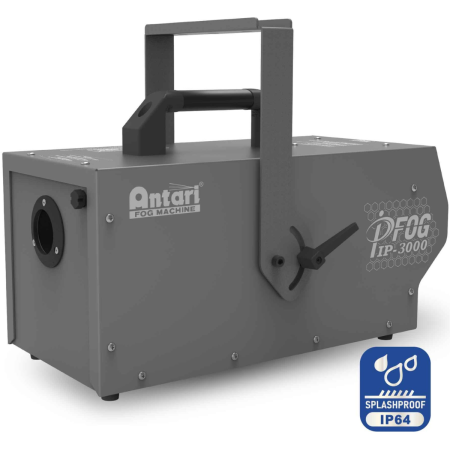

Antari IP-3000

Water-Splash-Resistant Fog Machine

The Antari IP-3000 is a high-output fog machine designed for dependable operation in demanding production environments where added resistance to water splashes is beneficial. Continuous output, multiple control options, built-in protection systems, and compatibility with a wide range of Antari fog fluids make it a versatile atmospheric effects solution for events, stages, and entertainment productions.

Antari IP-3000 Competitive Differences

• Water-splash-resistant construction helps support operation in challenging production environments
• Continuous fog output for sustained atmospheric effects
• Fluid detection system helps monitor fog-fluid operation
• LCD display with rotary knobs provides straightforward local control
• Built-in voltage protection helps protect the machine from electrical irregularities
• Dual Thermal Cut-Off Technology provides additional thermal protection
• Supports manual, timer, DMX512, and wireless control
• Includes a W-2 wireless transmitter and hanging bracket

Antari IP-3000 Description

The Antari IP-3000 combines powerful fog production with durable construction intended for professional entertainment and event applications. Its water-splash-resistant design adds protection for environments where conventional indoor fog machines may be more exposed to moisture.

The IP-3000 supports continuous output and consumes approximately 250 ml of fluid per minute at 100% output. Depending on the regional version, it operates at 1700W on 120V power or 2500W on 240V power, with an approximate warm-up time of 20 minutes for the 120V model and 12 minutes for the 240V model.

Operators can control the machine manually, through its timer functions, over DMX512, or wirelessly using the included W-2 transmitter. An LCD display with rotary knobs simplifies onboard adjustments, while a 5-pin XLR connection provides single-channel DMX integration.

Built-in voltage protection, fluid detection, and Dual Thermal Cut-Off Technology help support reliable operation during professional use. The IP-3000 is compatible with multiple Antari fog-fluid formulations, allowing users to select different fog densities and dissipation characteristics for concerts, stages, events, and other atmospheric-effects applications.

IP-3000 Features

• Water-splash-resistant fog machine
• Continuous fog output
• Fluid detection system
• LCD display with rotary control knobs
• Built-in voltage protection
• Dual Thermal Cut-Off Technology (TCO)
• Manual control
• Timer control
• DMX512 control
• Wireless control
• 1-channel DMX operation
• Neutrik powerCON TRUE1 power connection
• 5-pin XLR DMX connection
• Includes W-2 wireless transmitter
• Includes hanging bracket

IP-3000 Specifications

• Input Voltage, US Model: AC 100-120V, 50/60Hz, 14.5A
• Input Voltage, EU Model: AC 220-240V, 50/60Hz, 10.5A
• Rated Power, 120V Model: 1700W
• Rated Power, 240V Model: 2500W
• Warm-Up Time, 120V Model: Approximately 20 minutes
• Warm-Up Time, 240V Model: Approximately 12 minutes
• Fluid Consumption: 250 ml/min at 100% output
• Fluid Tank Capacity: No integrated tank specified
• Compatible Fluid: Antari FLG Regular Dense & Regular Dissipating Fog Fluid
• Compatible Fluid: Antari FLH Extremely Thin & Fast Dissipating Fog Fluid
• Compatible Fluid: Antari FLJ Extremely Thin & Extremely Fast Dissipating Fog Fluid
• Compatible Fluid: Antari FLR Extra Dense & Extremely Fast Dissipating Fog Fluid
• Compatible Fluid: Antari FLY Extremely Dense & Extremely Long Lasting Fog Fluid
• Compatible Fluid: Antari FLZ Super Dense & Super Long Lasting Fog Fluid
• Ambient Temperature Range: 32 to 104°F (0 to 40°C)
• Control Methods: Manual, Timer, DMX512, Wireless
• DMX Channels: 1
• Power Interface: Neutrik powerCON TRUE1
• DMX Interface: 5-Pin XLR
• Dimensions: 20.12 x 12.37 x 15.52" (511 x 314 x 394 mm)
• Weight: 41.01 lb (18.6 kg)

What's In The Box

• Antari IP-3000 Fog Machine
• W-2 Wireless Transmitter
• Hanging Bracket

Antari IP-3000 (Antari IP3000)
