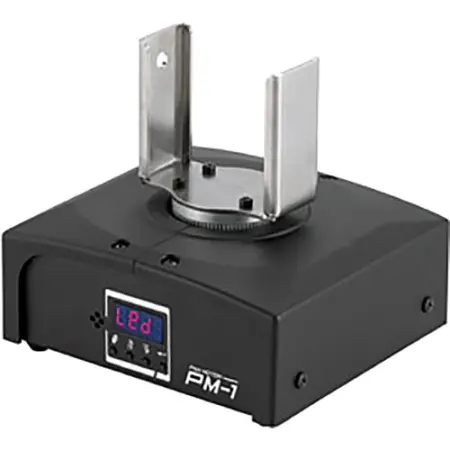

Antari PM-1 Pan Motor for S-500D

Pan Motor Attachment for Antari S-500 Snow Machine.

Features:
120 Degree Pan Movement.
LED Control Display with 4 Buttons.
Metal Chassis with Plastic Cover.

Specifications:

Input voltage: AC100-240V 50-60Hz
Power: 11W
Pan: 120 degrees
Control option: DMX 512, Manual
DMX channels: 1, 2
Operation: DMX 512, 4 digit display with 4 buttons
Power connection: IEC
DMX data connection: 3-pin XLR
Housing: Metal chassis with plastic cover
Protection rating: IP-20 Indoor use only
Dimensions (LxWxH):6.7" x 6.1" x 5.9" (169 x 154 x 150.5 mm)
Dry weight: 4.2 Lbs (1.9 kg)

Antari PM-1 (Antari PM1 S-500 Pan motor)

Research with AI

Beam Angle	120 degrees degrees
IP Rating	IP-20 Indoor use only
Power Consumption	11W W
Voltage Range	AC100-240V 50-60Hz V

Brand	Antari
Name	Antari PM-1 Pan Motor for S-500D

Build Material	Metal chassis with plastic cover
Dimensions	6.7" x 6.1" x 5.9" (169 x 154 x 150.5 mm) mm
Weight	4.2 Lbs (1.9 kg) kg

Control Interfaces	DMX 512, Manual

DMX Channel Modes	1, 2

Why to Invest?

The Antari PM-1 Pan Motor provides precise 120-degree pan movement for the S-500 Snow Machine, featuring easy control via DMX 512 or manual interface with a clear LED display and durable metal chassis.

How it Works?

The pan motor attaches to the Antari S-500D snow machine, allowing controlled panning movement through DMX 512 protocol or manual buttons, powered by an 11W motor and controlled via a 4-button LED display.

What's Unique?

Its combination of a metal chassis with plastic cover, 120-degree pan range, and dual control options (DMX and manual) with a compact design and indoor IP-20 rating makes it a versatile and reliable accessory for snow effects.

Features

120 Degree Pan Movement. LED Control Display with 4 Buttons. Metal Chassis with Plastic Cover.

Specifications

Input voltage: AC100-240V 50-60Hz. Power: 11W. Pan: 120 degrees. Control option: DMX 512, Manual. DMX channels: 1, 2. Operation: DMX 512, 4 digit display with 4 buttons. Power connection: IEC. DMX data connection: 3-pin XLR. Housing: Metal chassis with plastic cover. Protection rating: IP-20 Indoor use only. Dimensions (LxWxH): 6.7" x 6.1" x 5.9" (169 x 154 x 150.5 mm). Dry weight: 4.2 Lbs (1.9 kg).
