WHAT’S IN THE BOX
1x W-App
2x Omnidirectional Antenna
1x Power Supply Unit (100-240V)
Unlimited Downloads of Ape Labs Android or iOS App
KEY FACTS
Dongle for Ape Labs Android/iOS App or DMX Controller
1,000ft Wireless DMX Range
DMX Transmitter or Receiver
Compatible with All DMX Controllers
Android/iOS Phone / Tablet Required for Use
Built-in Battery with 50 Hours of Operation per Charge
KEY APE LABS APP FEATURES

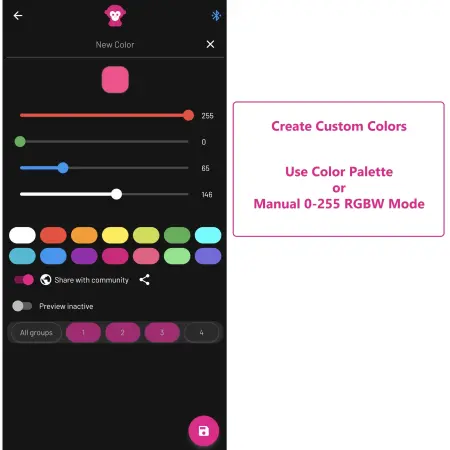

Color Wheel / Color Pallet Picker
Save Custom Colors

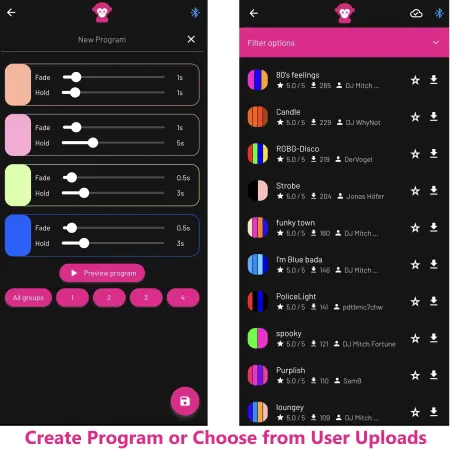

Save Custom Programs
Trigger Preset Colors / Programs

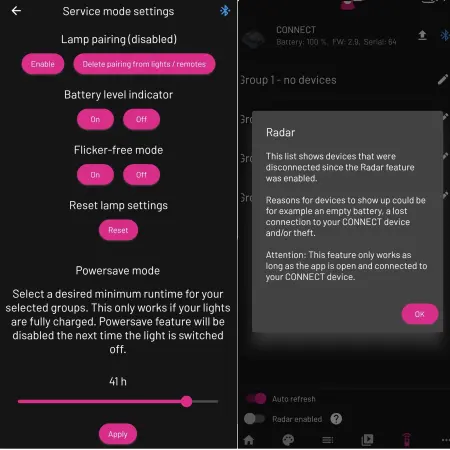

Set Battery Run-time (auto adjust brightness to reach desired run-time)

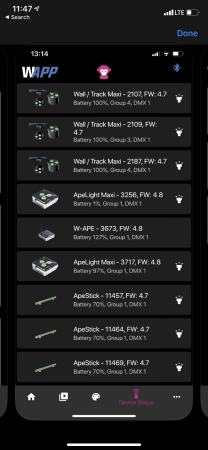

Wirelessly Update, Address, and Set-up Fixtures
Trigger one, two, three, or all four groups at once
Select Sound Active Mode (universal sync or individual mics)

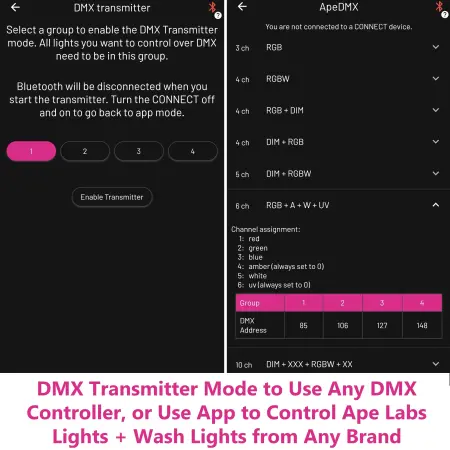

Wireless DMX Transmitter for use with any controller
Wireless DMX Receiver for use with non Ape Labs products (DMX mode)
Adjustable Brightness, Speed & Strobe (0-100%)
Blackout (some or all groups)

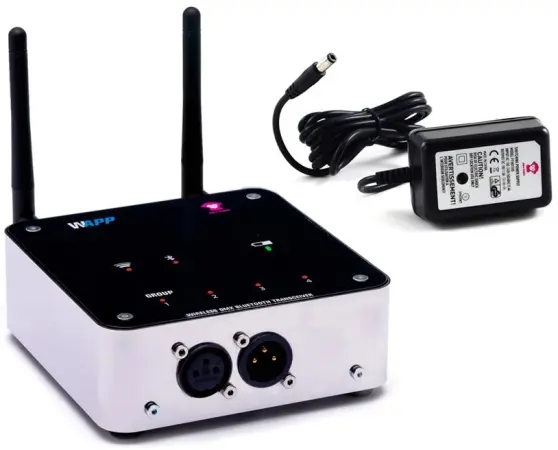

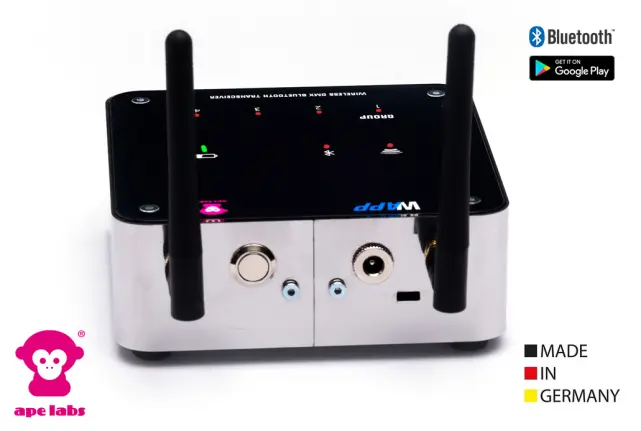

Ape Labs W-App (DMX Transceiver)
DESCRIPTION

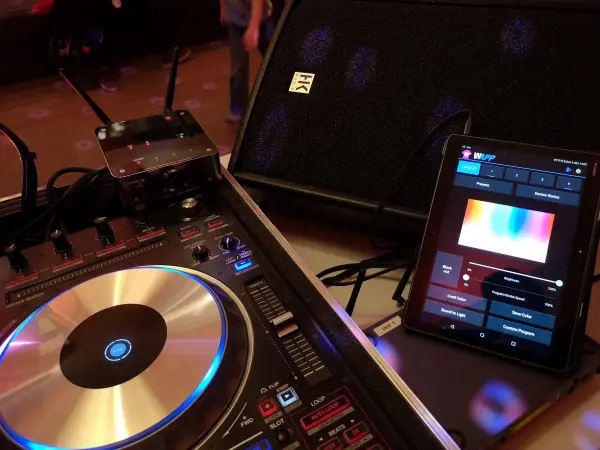

The Ape Labs W-APP Bluetooth wireless DMX transceiver is the central transmitter station to control Ape Labs LED lights wirelessly via smartphone/table or via wireless DMX.
The device can be used as Ape Labs App Dongle, Wireless DMX Transmitter (for any DMX controllers), Wireless Ape Labs DMX Receiver, or Master Microphone for Sound Active Mode.
Use Ape Labs android/iOS app to address and/or set-up fixutres. The app includes many new features. A color picker and battery run-time selection are now available. Custom colors, custom programs, and many other great features...plus more to come!
The latest version of the App in the App Store automatically provides the required updates for the Ape Labs lights. The App is free and can be downloaded on an unlimited number of devices. The firmare updates for each fixture can be done wirelessly thru the Ape Labs W-App.
FEATURES
Android/iOS Phone/Table will Bluetooth to W-App
The Ape Labs W-App will Communicate with Lights via 2.4Ghz
Constantly updated App with email feedback
Built-in battery for 50 hours of operation per charge
wireless DMX transmitter and receiver
Each Ape Labs light can get its own DMX address
300 meters (1,000ft) Wireless Range to Lights

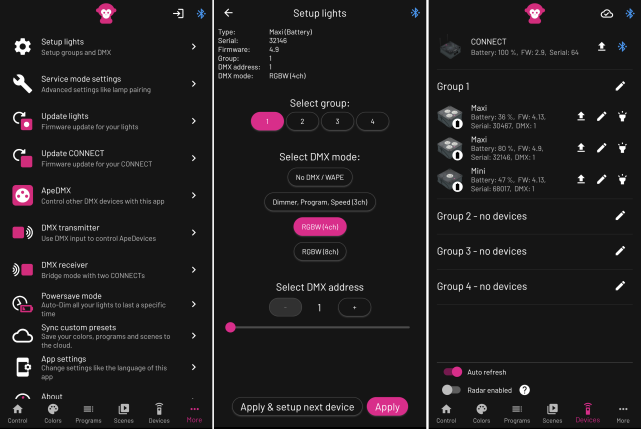

Address Lights wirelessly thru App
Sound Active Option to Use W-App as Master Microphone, or each fixture
3 pol. Neutrik DMX jacks in/out
All ApeRemote Features Plus More

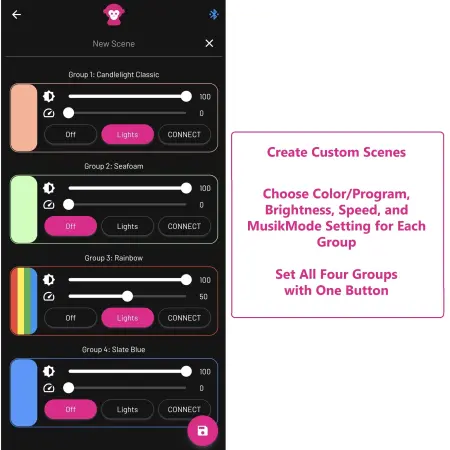

4 group management (and ability to toggle 1, 2, 3, or all at a time)
Transmission of up to 4 DMX universes simultaneously (with 4 W-APP transceivers)
MEASUREMENTS/TECH SPECS
Size: 15.5 x 12 x 5 cm / 6.1 x 4.7 x 2 in
Weight: 0.7 kg / 1.54 lbs
Power requirement: 100-240 V / 50-60 Hz

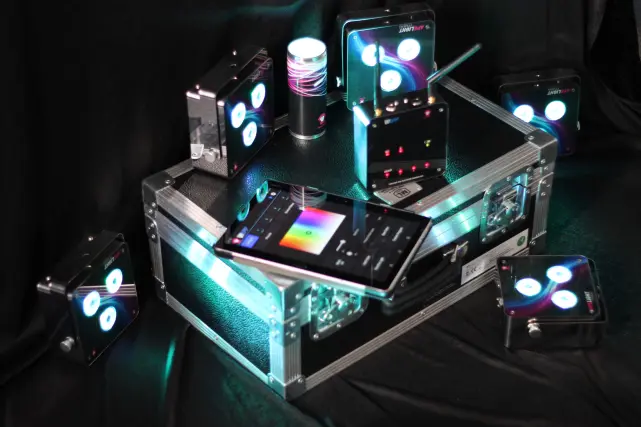

COMPATIBLE PRODUCTS
LightCan
ApeLight Mini
Maxi
ApeStick
MobiLight 4
W-APE
PSU
ApeRemote
