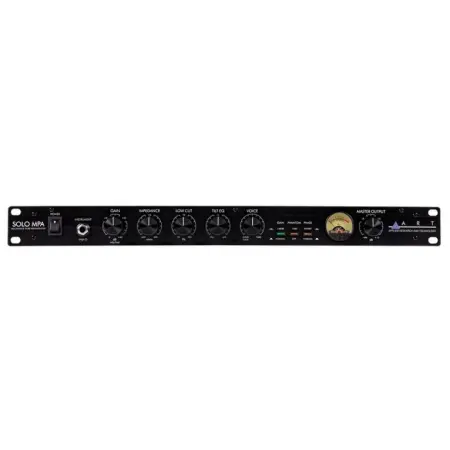

Art Solo MPA

The ART Solo MPA Multivoice Tube Preamplifier picks up where builtin preamps drop off. Combining the best of both worlds, the Solo MPA
allows users to blend between a pristine low-noise/low-distortion solid
state transistor circuit and a warmer Class-A tube mic preamp. Along
with the flexible EQ controls, users can voice the Solo MPA to create
their own signature sound.
Featuring 48V phantom power and a variable input impedance control,
users can tailor the Solo MPA to suit their microphone of choice, be it
a high-quality dynamic, a studio grade condenser or a low-level ribbon.
A Low-Cut control allows vocals to be sculpted for clarity while the Tilt
EQ can be used to emphasize high presence or low-end warmth.

FEATURES:

Adjustable input impedance (600 to 80K ohms).
Flexible Tilt EQ
Tunable Lowcut Filter
Variable Voice Tube/Solid State Control
Front accessible meter trim
Discrete class A FET input microphone preamplifier
Low noise at low gains
Low THD
Wide frequency response
Front mounted Instrument/DI Input
Very high input impedance
+4dBu/-10dBV output level selection


SPECIFICATIONS:

Frequency Response 15 Hz to 50 kHz (+0, -1dB)
Dynamic range >110dB (“A” weighted)
CMRR >90dB
THD <0.005% (typical)
Equivalent Input Noise -129dBu (XLR, “A” weighted)
Maximum Input Level +19dBu (XLR)
Maximum Instrument Input +17dBu
Input Impedance 600-80K ohms adjustable (XLR),
>800k ohms (Instrument)
Maximum Output Level +27dBu (XLR)
Output Impedance < 47 ohms (XLR)
Maximum Gain 70dB
Meter Calibration 0VU = +4dBu output (+4dBu mode)
0VU = -10dBV output (-10dBV mode)
Low Cut Filter single pole, 10-200Hz adjustable
Tilt EQ +/- 12dB adjustable
Power Requirements 100-120V 60 Hz / 220-240V 50Hz
rear mounted switch and IEC connector
Dimensions: (HxWxD) 1.75-inch x 19-inch x 6.0-inch
4.45 cm x 48.3 cm x 15.2 cm
Weight 5.6 lb / 2.5kg
Box Dimensions (HWD, inches) 5 x 20.4 x 7.44
Box Dimensions (HWD, cm) 12.6 x 51.8 x 18.9

ART SOLOMPA (Art SOLO-MPA)
