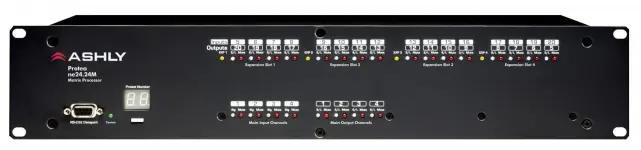

Modular DSP Matrix Processor for Advanced Audio Control
The
Ashly Protea ne24.24M is a versatile DSP matrix processor designed for scalable audio matrixing and processing needs. Starting with a 4-input/4-output configuration, this unit can expand up to 24 channels using modular expansion cards, making it ideal for zoned audio systems. With the user-friendly Proteaâ„¢ software, programming and managing your audio setup is straightforward and efficient. This unit includes card for 4-input by 8-output.
Ashly Protea ne24.24M Competitive Differences
- Expandable design allows up to 24 input/output channels for maximum flexibility.
- Each expansion card features its own DSP processor for dedicated channel control.
- Matrixing capability enables routing any input to any output with precise level control.
- Optional GPO Logic Card triggers external devices like projection screens, lights, or curtains.
- Control through 10/100 Ethernet, RS-232, and Ashly Remote iOS App for seamless integration.
- Field-installable modules, simplifying expansion without reprogramming the device.
Ashly Protea ne24.24M Description
The
Ashly Protea ne24.24M matrix processor is perfect for installations that demand advanced audio control and flexibility. The base unit starts with a 4x4 configuration and can be expanded in increments of 4 channels using input or output expansion cards. Each card is equipped with its own DSP processor, ensuring robust processing power and smooth performance.
Programming is simplified through the Protea™ ne Software, which allows users to route signals easily and adjust levels for each channel. Its fixed-path architecture saves time during setup, and with 24-bit A/D–D/A audio resolution, you get high-quality audio performance. The ne24.24M also includes 31 preset locations and multi-level security, making it suitable for complex installations where control and reliability are paramount.
Protea ne24.24M Features
- Base Configuration: 4x4 input/output, expandable up to 24 channels
- Modular expansion cards for additional 4-channel input or output processing
- Matrixing capabilities for routing any input to any output
- Proteaâ„¢ ne Software for intuitive programming and control
- Optional GPO Logic Card for triggering external devices
- 10/100 Ethernet and RS-232 standard interfaces
- Remote control via Ashly Remote iOS App
- 24-bit A/D–D/A conversion for high-resolution audio
- Euroblock connectors for secure connections
- Field-installable modules without the need for reprogramming
Protea ne24.24M Specifications
- Base Configuration: 4-input/4-output
- Maximum Configuration: 24 channels (with expansion cards)
- DSP Processing: Dedicated per input/output card
- Control Interface: 10/100 Ethernet, RS-232, Ashly Remote iOS App
- Audio Resolution: 24-bit A/D–D/A
- Preset Memory: 31 preset locations
- Input/Output Connectors: Euroblock
- Remote Control Options: Level control, preset recall, programmable functions
- Dimensions: 19 in x 1.73 in x 18.2 in (48.3 cm x 4.4 cm x 46.2 cm)
- Net Weight: Approx. 22 lbs (10 kg)
- Compliance: cTUVus, FCC, CE, RoHS
What's In The Box
- Ashly Protea ne24.24M Matrix Processor (4x4 base configuration)
- Power Cable
- User Manual
Ashley 24.24 M Protea
(Ashly ne 24x24M)
