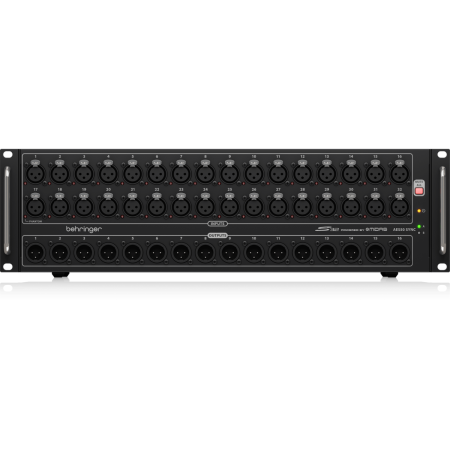

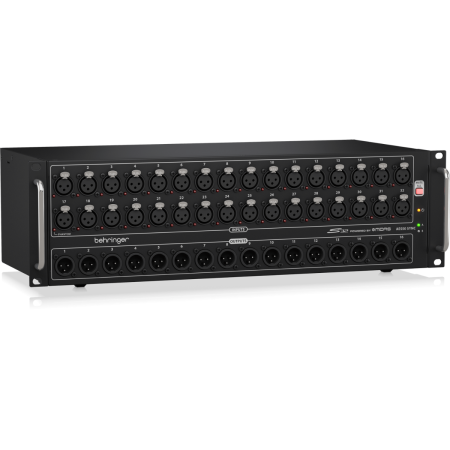

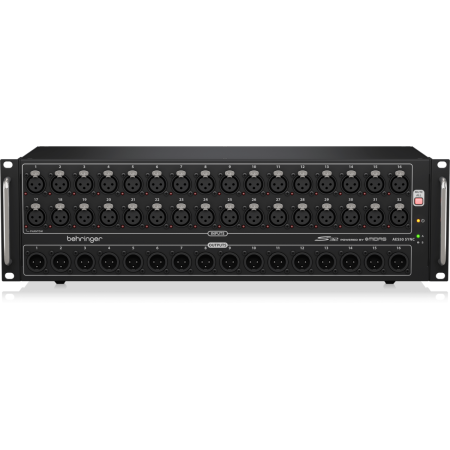

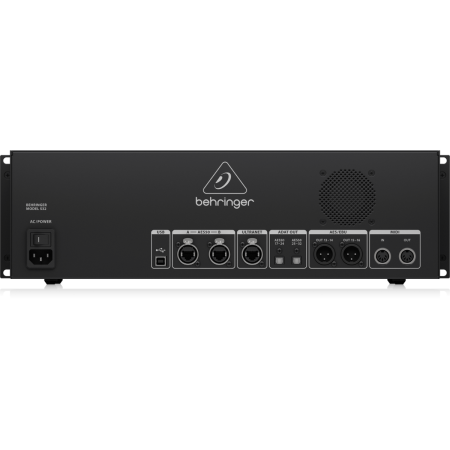

Behringer S32

Digital Stage Box

Behringer S32 is a high-performance digital stage box designed to simplify live sound setups by replacing bulky analog snakes with a single Cat5e connection. With remote-controllable preamps and reliable AES50 networking, it delivers clean audio and efficient signal routing between stage and front-of-house.

Behringer S32 Competitive Differences

• 32 Midas-designed, remotely controllable mic preamps
• 16 XLR outputs for stage monitoring and routing
• AES50 networking with ultra-low latency via SuperMAC technology
• Single CAT5e cable connection for streamlined setup
• Ultranet integration for personal monitoring systems

Behringer S32 Description

The Behringer S32 is built to bridge the gap between performers, engineers, and audiences by delivering reliable, high-quality audio over a simple digital connection. Designed for use with AES50-equipped digital mixers, it integrates seamlessly into professional live sound systems.

Featuring 32 Midas-designed mic preamps, the S32 provides exceptional sound quality with low noise, high headroom, and precise remote control directly from your mixing console. This eliminates the need for constant trips to the stage, making setup and adjustments faster and more efficient.

With 16 servo-balanced XLR outputs, the S32 allows flexible routing for monitor mixes and stage outputs. Dual AES50 ports enable cascading multiple units for expanded I/O, while Ultranet connectivity supports personal monitoring systems for performers.

Built with a rugged 3U rackmount chassis, the S32 is designed for touring and installed applications. Its combination of reliability, ease of use, and professional-grade audio performance makes it an essential component for modern digital mixing environments.

S32 Features

• 32 remote-controllable Midas-designed mic preamps
• 16 analog XLR outputs for stage routing
• AES50 connectivity with Klark Teknik SuperMAC technology
• Dual AES50 ports for cascading multiple stage boxes
• Ultranet connectivity for personal monitoring systems
• Dual ADAT optical outputs for digital splitting
• MIDI I/O for external device communication
• USB port for system updates
• LED metering and 7-segment displays for monitoring levels
• Rugged 3U rackmount steel chassis

S32 Specifications

• Inputs: 32 XLR mic/line inputs
• Outputs: 16 XLR outputs
• Digital Outputs: 2 x ADAT (optical), 2 x AES (XLR)
• Networking: 2 x AES50 ports
• Ultranet: 1 port
• MIDI: In/Out
• USB: Type B (for updates)
• Rackmount: 3U
• Dimensions: 19 x 9.5 x 5.4 in (483 x 241 x 137 mm)
• Weight: 12.4 lb (5.6 kg)

What's In The Box

• Behringer S32 digital stage box
• Power cable
• Quick start guide

Behringer S32 (Behringer 000-BMC02-00010)
