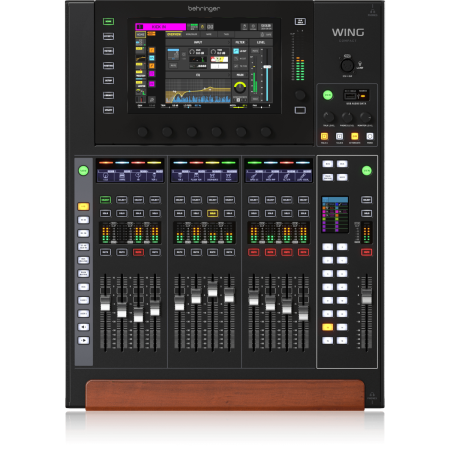

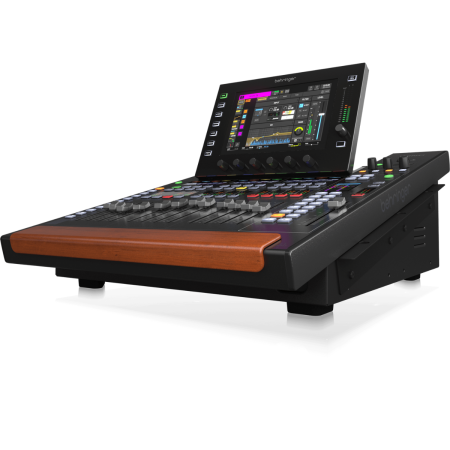

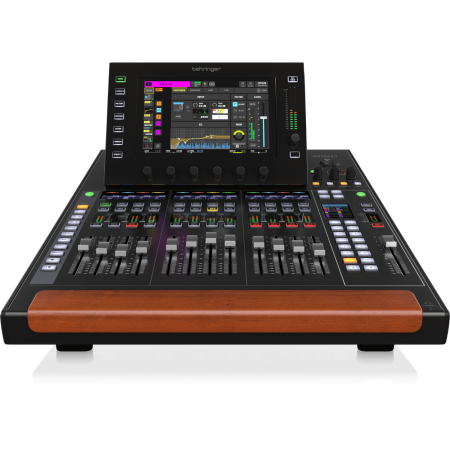

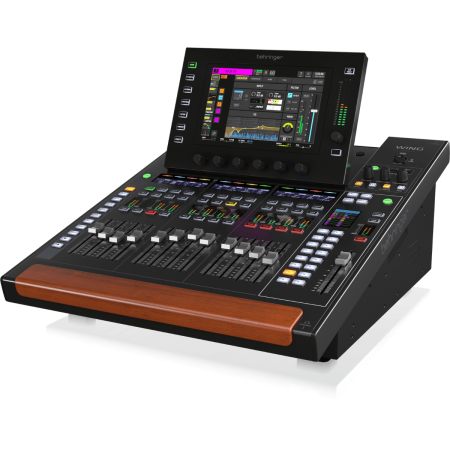

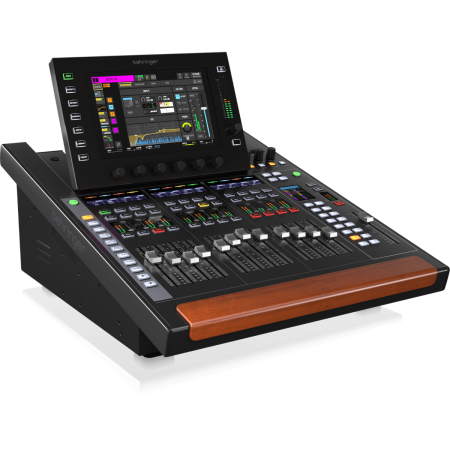

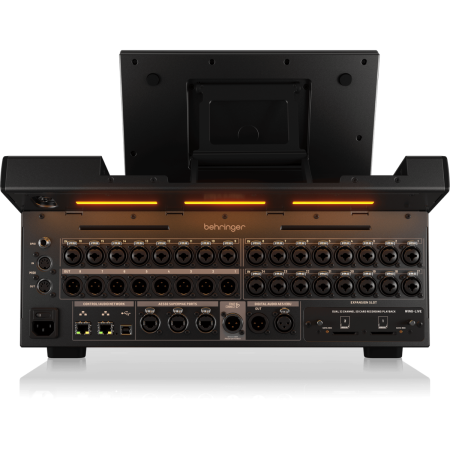

Behringer WING COMPACT

Digital Mixing Console

Behringer WING COMPACT is a powerful and space-efficient digital mixing console designed for live sound, monitor mixing, and installed audio systems. Combining advanced stereo channel flexibility with a streamlined control surface, it delivers professional-grade performance in a compact footprint.

Behringer WING COMPACT Competitive Differences

• 48 fully configurable stereo channels with mono, stereo, or M/S operation
• 24 Midas PRO preamps for premium sound and extended dynamic range
• 13 motorized 100 mm faders with dedicated master section
• 28 stereo buses optimized for immersive monitor mixing workflows
• Rack-mountable design with flexible installation options

Behringer WING COMPACT Description

The Behringer WING COMPACT brings the full power of the WING ecosystem into a smaller, more portable format without sacrificing performance. Its innovative FlexChannel architecture allows every channel to operate in mono, stereo, or mid/side mode, giving engineers unmatched flexibility for complex live productions and broadcast setups.

Equipped with 24 Midas PRO mic preamps, this console delivers exceptional clarity, headroom, and low-noise operation. The optimized surface includes 13 motorized faders, a dedicated master section, and a high-resolution 10.1" touchscreen, ensuring fast and intuitive control whether you're mixing front-of-house or monitors.

The WING COMPACT is built for modern workflows, featuring 374+ input sources, AES50 connectivity, StageConnect integration, and a 48x48 USB audio interface for seamless DAW integration. Its dual SD card recorder supports up to 64 tracks, making it ideal for virtual soundchecks, live recording, and playback.

With 16 stereo FX engines and over 80 premium effects inspired by classic studio hardware, the console provides powerful onboard processing without external gear. Its customizable controls, dedicated “Sends on Fader” workflow, and advanced automation tools make it a versatile solution for touring professionals, venues, and installed systems.

WING COMPACT Features

• 48 stereo channels configurable as mono, stereo, or M/S
• 28 stereo buses with full processing and inserts
• 24 Midas PRO mic preamps and 8 outputs
• 13 motorized 100 mm faders with dedicated master section
• 10.1" capacitive touchscreen with adjustable angle
• 3 AES50 ports with 144x144 channels and ultra-low latency
• StageConnect 32-channel bidirectional audio over XLR
• 48x48 USB audio interface for DAW integration
• Dual SD card recorder with up to 64 tracks
• 16 stereo FX engines with 80+ effect algorithms
• “Sends on Fader” workflow with dedicated display and hotkeys
• Rack-mountable in multiple positions for flexible installation
• GPIO, MIDI, AES/EBU, and network control capabilities

WING COMPACT Specifications

• Frequency Response: 10 Hz – 20 kHz
• Dynamic Range (Analog In to Out): 111 dB (XLR), 108 dB (Aux)
• A/D Dynamic Range: 112 dB (XLR), 110 dB (Aux)
• D/A Dynamic Range: 118 dB (XLR), 112 dB (Aux)
• Main Display: 10.1" TFT LCD, 1280 x 800, multi-touch
• Faders: 13 motorized 100 mm
• USB Audio Interface: 48x48 channels
• Recorder: Dual SD card, up to 64 tracks
• Power Supply: 100–240 VAC, auto-ranging
• Power Consumption: 130 W
• Dimensions: 22.6 x 17.8 x 8.9 in (574 x 453 x 225 mm)
• Weight: 35.1 lb (15.92 kg)

What's In The Box

• Behringer WING COMPACT digital mixing console
• Power cable
• Quick start guide

Behringer WING COMPACT (Behringer WING-COMPACT)
