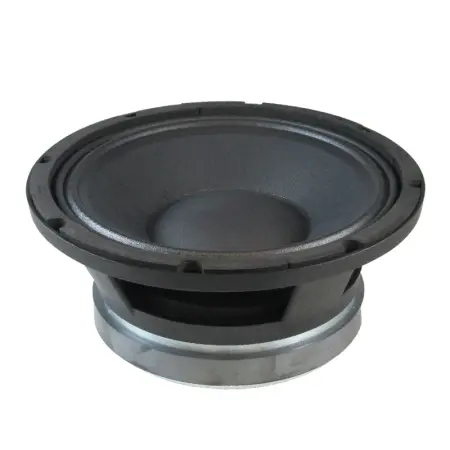

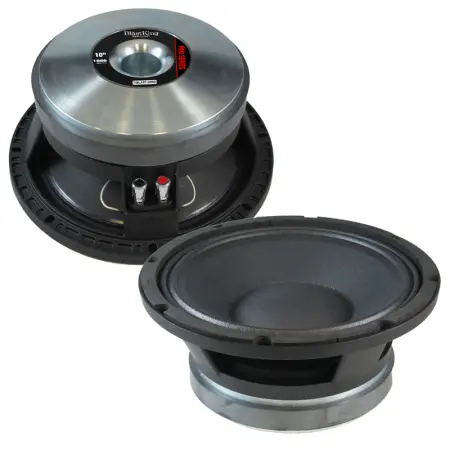

Blast King Blast10 Pro
DISCONTINUED
1 Photos
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
The Blast10 Pro is a ferrite magnet mid-bass frequency transducer capable of producing clear mid-bass frequencies with absolute definition in professional sound reinforcement applications that require maximum output. Its 3” aluminum voice coil along with its forced air ventilation system that dissipates heat significantly increase power handling and long term reliability. The Blast10 Pro is rated at 400 watts programpower with a frequency response between 65 Hz – 3 kHz making it an ideal choice for high power 2-way compact systems.
Applications:
The Blast10 Pro is the perfect option when you are looking forpower and clarity in a compact application. Featuring a 3” aluminum voice coil, you can be assured the Blast10 Pro willput out clear mid-bass frequencies in high power applicationsmaking it great for 2-way compact enclosures.
Features:
3” Voice Coil
400 Watts program power
98 dB sensitivity
65 Hz – 3 kHz frequency response
Forced air ventilation
Specifications:
Nominal Basket Diameter 261/10 mm/inch
Rated Impedance 8 ohm
Program Power 400 Watts
Power Handling Capacity 1000 Watts
Sensitivity 98 dB
Frequency Range 65-3k hz
Effective Piston Diameter 210/8.2 mm/inch
Minimum Impedance 6 ohm
Voice Coil Diameter 75.5/3 mm/inch
Voice Coil Material Aluminium
Thiele - Small Parameters
Resonance Frequency (Fs ) 60 Hz
DC Resistence (Re) 5.8 ohm
Mechanical Factor (Qms) 8.9
Electrical Factor (Qes) 0.165
Total Factor (Qts) 0.162
BL Factor (BL) 23.7 T m
Effective Moving Mass (Mms) 40 gr
Equivalent Cas Air Load (Vas) 45 liters
Maximum Linear Excursion (Xmax) 1.5 mm
Voice Coil Inductance (La1k) 1.6 mH
Mounting Information
Overall Diameter 261/10 mm/inch
Bolt Circle Diameter 244/9.6 mm/inch
Bolt Hole Diameter 7/0.275 mm/inch
Baffle Hole Diameter 231/9 mm/inch
Depth 121/4.76 mm/inch
Shipping Information
Net Weight 6.8/14.96 Kg/Lbs
Shipping Weight 8/17.6 Kg/Lbs
