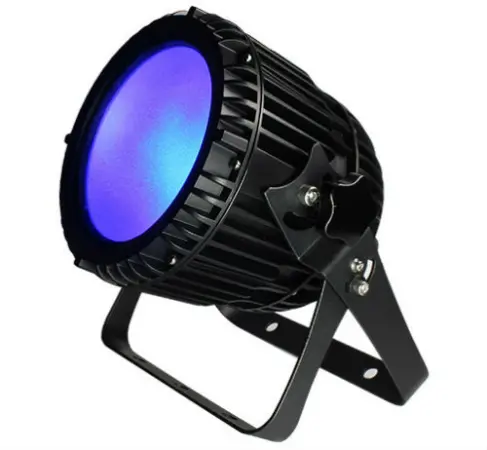

We are thrilled to announce that the IP65 rated TOURnadoâ„¢ series of outdoor LED PAR fixtures have yet another new addition with the TOURnadoâ„¢ CSI COB.
It is one tough fixture that allows users to add very bright Ultra Violet light with a wide 60° beam angle thanks to its installed 100W UV color COB LED. COB technology provides very intense light, which is produced via multiple small LED chips that are packaged together into one tiny, yet very powerful module. And, like the other lights in our TOURnadoâ„¢ line, it also sports convection cooled cast aluminum housing with a tempered glass lens, watertight internal gaskets, and extended weatherproof power and data cable in/out connections. Yeah…this is one tough fixture.
It is a perfect lighting solution for just about any type of outdoor application in need of Ultra Violet lighting. It comes equipped with dual mounting brackets to add total positioning flexibility, and it has a well-structured, easy to navigate LED control panel menu with 4 electronically touch sensitive navigation buttons that make programming (and button pushing) a breeze!
The fixture can work in standalone mode, master/slave mode, or you can simply control it with 1 or 3 channels of DMX, which means it will work great with any controller, including our popular Kontrolâ„¢ 5, 5 channel DMX controller. All the features are accessible in any mode including master dimmer, strobe effects, and access to 4 (x2) user-selectable 32-bit dimming curves (4 normal, 4 with added delay). These dimming curves allow for different amounts of steps for much smoother (and slower) dimming capabilities. The TOURnadoâ„¢ CSI COB also has a flicker-free constant-current 1,500Hz LED driver, and does its job in complete silence with its fan-less, convection cooled housing.
A complete set of detachable IP rated 3-pin in/out data cables and AC power cables are included with each fixture. DMX and power extension cables are also available (sold separately).
The TOURnadoâ„¢ CSI COB is available now, and of course, it is also backed by Blizzard's 2-year warranty!
Features:
• 1* 100W UV COB LED, 100,000 hours
• LED control panel with 4* touch sensitive electronic buttons
• Bright output with 60° beam angle
• Variable electronic dimming & strobe
• Flicker-free constant-current 1,500Hz LED driver
• Dual mounting brackets for positioning flexibility
• IP Rated AC power cord with cable cap
• IP Rated DMX in/out cables
Specifications:
Operating Voltage
AC 100V-264V/47-63HZ
Light Source
1* 100W UV COB LED, 100,000 hours
Power Consumption
100W 60° beam angle
PWM Dimmer
1,500Hz (16,666 grades)
Control Mode
DMX512, stand alone, master/slave
DMX Channels
1/3-channel
Multiple user selectable 32-bit dimming modes
Normal, random, sinewave, opening pulse, and closing pulse strobe effects
Built-in overheat protection
Convection cooled cast aluminum housing
Anti-electricity intension：1.5KV
Insulation Resistance:＞２MΩ
IP Protection: IP65
Weight and Dimensions
11.2 x 7.4 x 8.1 inches (26.5 x 18.7 x 28.5 cm)
8.82 lbs (4 kg)
Warranty
2-year limited warranty, does not cover malfunction caused by damage to LEDs
Blizzard Tournado Cob CSI
(Blizzard Lighting Tournado CSI cob)
