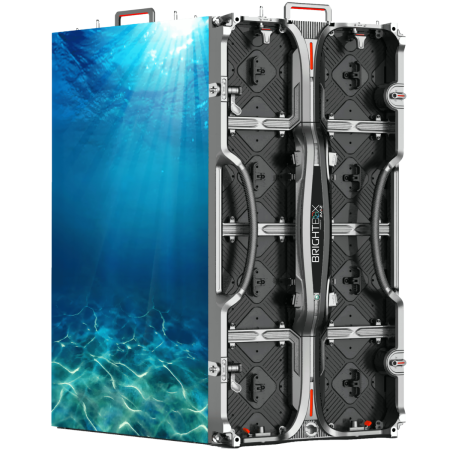

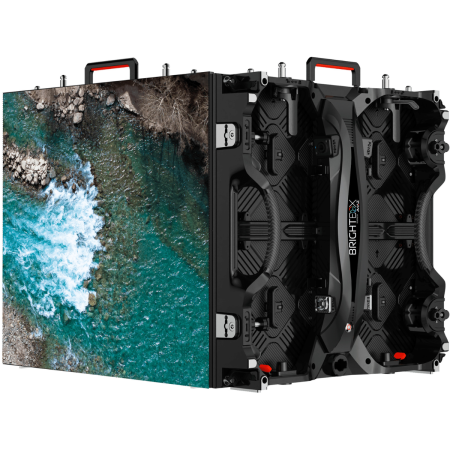

BrightBox BB1036

Outdoor Curved LED Video Wall Panel

The BrightBox BB1036 is a 500 x 500 mm outdoor LED video wall panel designed for high-brightness displays in mobile productions and live event environments. Its 2.9 mm pixel pitch, 168 x 168 resolution, 4500-nit output, and weather-resistant cabinet provide clear visuals for concerts, festivals, outdoor stages, corporate events, and rental applications.

BrightBox BB1036 Competitive Differences

• 4500-nit brightness provides strong visibility in outdoor and high-ambient-light environments
• IP65-rated front and IP54-rated rear provide weather resistance for outdoor production use
• Adjustable ±5-degree curvature supports flat, concave, and convex video wall configurations
• Refresh rate of at least 7,680 Hz supports smooth, camera-friendly video reproduction
• Swappable all-in-one power box simplifies servicing and component replacement
• Integrated corner protection helps protect the cabinet during setup and transportation

BrightBox BB1036 Description

The BrightBox BB1036 Osiris 2.9 Outdoor combines high brightness with a compact modular cabinet for professional outdoor video wall applications. Each panel provides a resolution of 168 x 168 pixels, allowing multiple cabinets to create large-format displays for live video, graphics, sponsor content, presentations, and stage visuals.

SMD1415 LEDs produce up to 4500 nits of brightness, helping content remain visible in outdoor environments and areas with substantial ambient light. A refresh rate of at least 7,680 Hz helps reduce visible flicker and scan lines when the display is viewed through broadcast, cinema, and event-production cameras.

The cabinet supports adjustable angles from -5 to +5 degrees, giving production teams the flexibility to build flat, concave, or convex display surfaces. This curved configuration capability is useful for immersive stages, festival designs, outdoor exhibits, scenic installations, and creative event layouts.

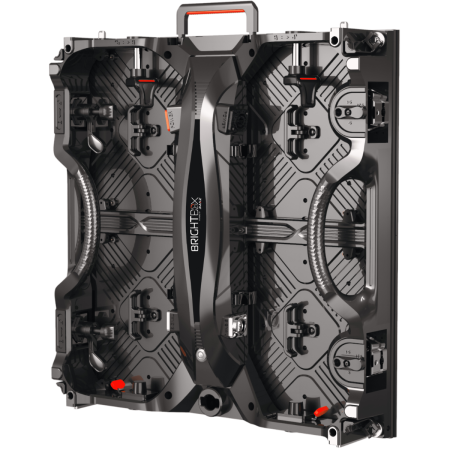

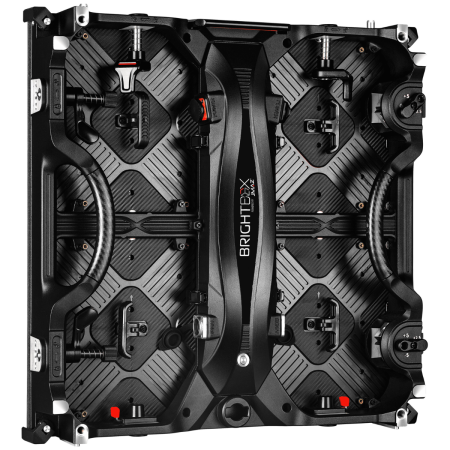

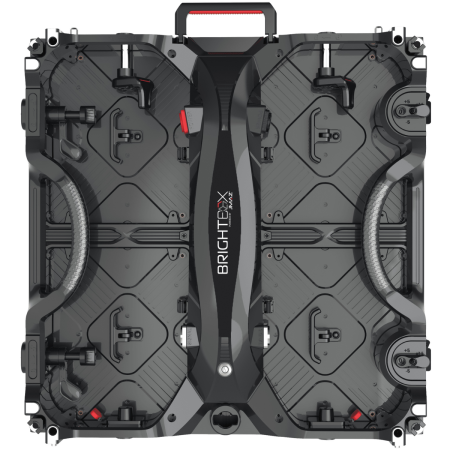

Designed for mobile production workflows, the panel includes rear service access, corner protection, and a swappable all-in-one power box. The IP65-rated front and IP54-rated rear help protect the panel in demanding outdoor applications, while the included road case supports transportation and storage.

BB1036 Features

• 500 x 500 mm outdoor LED video wall panel
• 2.9 mm pixel pitch
• 168 x 168 pixel panel resolution
• 4500-nit brightness
• SMD1415 LED technology
• Refresh rate of at least 7,680 Hz
• Adjustable curvature from -5 to +5 degrees
• Supports flat, concave, and convex configurations
• IP65-rated front
• IP54-rated rear
• Rear-serviceable cabinet design
• Swappable all-in-one power box
• Integrated corner protection
• ETL, FCC, RoHS, and CE certified
• Designed for outdoor events and mobile productions
• Ships in a road case

BB1036 Specifications

• Product Series: Osiris 2.9 Outdoor
• Product Type: Outdoor curved LED video wall panel
• Panel Size: 19.6 x 19.6 in (500 x 500 mm)
• Pixel Pitch: 2.9 mm
• Pixel Resolution: 168 x 168
• Total Pixels per Panel: 28,224
• Brightness: 4500 nits
• LED Type: SMD1415
• Refresh Rate: ≥7,680 Hz
• Curvature Range: ±5 degrees
• Service Access: Rear
• Front Ingress Protection Rating: IP65
• Rear Ingress Protection Rating: IP54
• Panel Dimensions: 19.6 x 19.6 x 3.2 in (500 x 500 x 83 mm)
• Panel Weight: 17.6 lb (8.0 kg)
• Certifications: ETL, FCC, RoHS, and CE
• UPC: 618528599564

What's In The Box

• BrightBox BB1036 Osiris 2.9 Outdoor LED video wall panel
• Road case

BrightBox BB1036 (BrightBox Osiris 2.9 Outdoor LED Video Wall (500×500))
