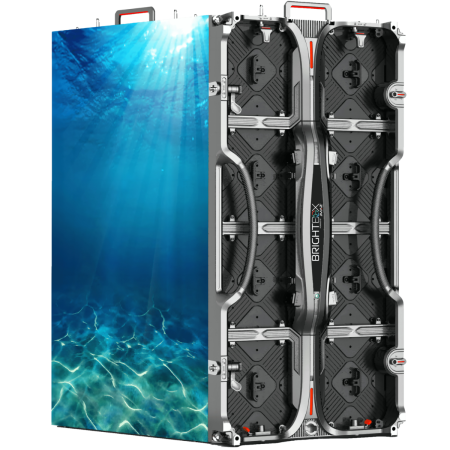

BrightBox BB1037 | 2.9mm Outdoor LED Video Wall Pa...
$2,100.00
The BrightBox BB1037 is a 500 x 1000 mm outdoor LED video wall panel designed for high-brightness displays in live production and mobile event environments. Its 2.9 mm pixel pitch, 168 x 336 resolution, 4500-nit output, and weather-resistant cabinet deliver clear visuals for concerts, festivals, outdoor stages, corporate events, and rental applications.
The BrightBox BB1037 Osiris 2.9 Outdoor combines high output with an extended 500 x 1000 mm modular cabinet. Each panel provides a resolution of 168 x 336 pixels, allowing production teams to build large video walls with fewer individual cabinets and connection points.
SMD1415 LEDs produce up to 4500 nits of brightness, helping video, graphics, sponsor content, and stage visuals remain visible in daylight and other high-ambient-light conditions. A refresh rate of at least 7,680 Hz helps reduce visible flicker and scan lines when captured by broadcast, cinema, livestream, and event-production cameras.
The cabinet supports adjustable angles from -5 to +5 degrees, allowing it to be used in flat, concave, or convex display designs. This flexibility makes the panel suitable for immersive stages, festival structures, outdoor exhibits, scenic installations, and other creative video wall configurations.
Built for touring and mobile production workflows, the panel features rear service access, integrated corner protection, and a swappable all-in-one power box. Its IP65-rated front and IP54-rated rear help protect internal components in demanding outdoor applications, while the included road case supports transportation and storage.
| Brand | BrightBox |
| Name | BrightBox BB1037 | 2.9mm Outdoor LED Video Wall Panel | 4500 Nits in 500 x 1000mm Cabinet |
| Primary Category | Outdoor curved LED video wall panel |
| Depth | 3.2 in in |
| Dimensions | 19.6 x 39.3 x 3.2 in (500 x 1000 x 83 mm) |
| Height | 39.3 in in |
| Included Accessories | Road case |
| Mounting Options | Adjustable curvature from -5 to +5 degrees supports flat, concave, and convex configurations |
| Transportability | Designed for touring and mobile production workflows with included road case |
| Weight | 30.8 lb (14.0 kg) kg |
| Width | 19.6 in in |
| IP Rating | IP65 front, IP54 rear |
| LED Type | SMD1415 |
| Lumen Output | 4500 nits nits |
| Pixel Pitch | 2.9 mm mm |
