JMAZ BB2009 Onubis 0.9

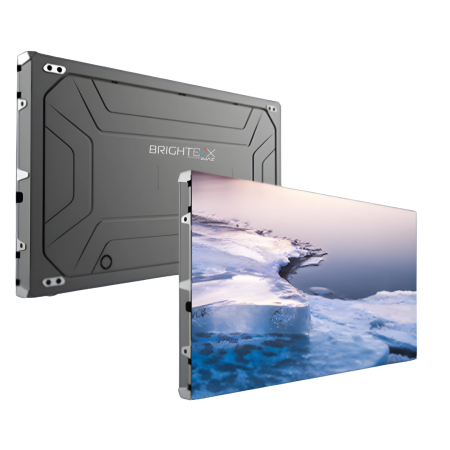

Indoor COB LED Video Wall Panel

The JMAZ BB2009 Onubis 0.9 is an ultra-fine-pitch indoor LED video wall panel designed for close-viewing applications that require exceptional detail, smooth color reproduction, and a low-profile installation. Its COB LED technology, 0.9mm pixel pitch, and 22-bit grayscale make it well suited for broadcast studios, command centers, corporate environments, showrooms, and premium digital signage.

JMAZ BB2009 Onubis 0.9 Competitive Differences

• Ultra-fine 0.9mm pixel pitch delivers detailed images at close viewing distances
• Native 640 x 360 resolution provides 230,400 pixels per panel
• COB LED technology creates a uniform display surface with reduced pixel visibility
• 22-bit grayscale supports smooth gradients and refined shadow and highlight detail
• Slim 1.5-inch cabinet depth supports low-profile fixed installations
• Lightweight 8.8 lb construction simplifies handling and installation
• Front serviceability allows maintenance without rear cabinet access
• Direct wall-mount capability supports space-efficient installations
• IP54-rated front provides added protection for the display surface
• Refresh rate of at least 3840Hz supports smooth playback and camera-friendly performance

JMAZ BB2009 Onubis 0.9 Description

The JMAZ BB2009 Onubis 0.9 combines an ultra-fine 0.9mm pixel pitch with a native resolution of 640 x 360 pixels. This high-density configuration produces detailed text, graphics, and video for applications where viewers are positioned close to the display.

COB, or Chip-on-Board, LED technology creates an integrated display surface that enhances visual uniformity while reducing the visibility of individual pixels. The panel's 22-bit grayscale capability supports smooth tonal transitions and precise rendering of subtle color, brightness, and contrast details.

With 600-nit brightness and a refresh rate of at least 3840Hz, the panel delivers clear indoor visuals with smooth motion reproduction. Its high refresh performance helps reduce visible flicker when the display is used in broadcast studios, recorded presentations, live productions, and other camera-facing environments.

The 600 x 337.5mm cabinet measures only 39.9mm deep and weighs 8.8 lb, making it suitable for permanent installations where space and structural weight are important. Front serviceability provides convenient access to internal components, while direct wall-mount capability supports streamlined installation without requiring rear maintenance clearance.

BB2009 Features

• 0.9mm ultra-fine pixel pitch
• COB LED display technology
• 600 x 337.5mm indoor LED cabinet
• 640 x 360 native pixel resolution
• 600-nit brightness
• 22-bit grayscale
• Refresh rate of ≥3840Hz
• IP54-rated front surface
• Front serviceability
• Direct wall-mount capability
• Slim 39.9mm cabinet depth
• Lightweight 8.8 lb construction
• ETL, FCC, RoHS, and CE certifications

BB2009 Specifications

• Pixel Pitch: 0.9mm
• LED Type: COB
• Panel Dimensions: 23.6 x 13.2 x 1.5 in (600 x 337.5 x 39.9 mm)
• Panel Weight: 8.8 lb (4 kg)
• Pixel Resolution: 640 x 360
• Total Pixels Per Panel: 230,400
• Brightness: 600 nits
• Grayscale: 22-bit
• Refresh Rate: ≥3840Hz
• IP Rating: IP54 front
• Serviceability: Front
• Mounting: Direct wall mountable
• Certifications: ETL, FCC, RoHS, and CE
• UPC: 618528598802

Jmaz BB2009 (BrightBox Onubis Indoor 0.9 COB)
