JMAZ Onubis 1.2 by BrightBox (BB2012) | 1.2mm COB,...
$1,999.95

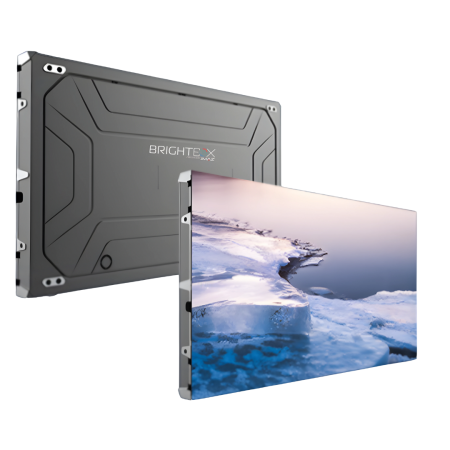

The JMAZ Onubis 1.2 by BrightBox (BB2012) is a 600 x 337.5mm indoor COB LED video wall panel designed for permanent installations requiring detailed images, smooth color reproduction, and convenient front maintenance access. Featuring a fine 1.2mm pixel pitch, Chip-on-Board (COB) LED technology, 600-nit brightness, and 22-bit grayscale, this slim display panel delivers detailed visuals for corporate environments, broadcast studios, control rooms, retail showrooms, and professional digital signage applications.
The JMAZ Onubis 1.2 by BrightBox (BB2012) combines a fine 1.2mm pixel pitch with a native resolution of 480 x 270 pixels, providing 129,600 pixels in each 600 x 337.5mm cabinet. This high-density configuration delivers detailed text, graphics, presentations, and video for professional indoor displays where viewers may be positioned relatively close to the screen.
Featuring COB (Chip-on-Board) LED technology, the panel incorporates an integrated display surface that supports consistent brightness and color uniformity while reducing the visibility of individual pixels. Its 22-bit grayscale capability provides smooth tonal transitions and refined reproduction of subtle color, shadow, and highlight details. These characteristics make the panel particularly useful for corporate presentation spaces, control centers, broadcast studios, and premium digital signage installations.
With 600-nit brightness, the Onubis 1.2 delivers clear visual output for indoor environments including corporate facilities, retail locations, showrooms, and presentation venues. A refresh rate of at least 3840Hz supports smooth motion reproduction and helps minimize visible flicker during livestreams, recorded presentations, and camera-facing applications. The IP54-rated front surface also provides additional protection against dust and limited moisture exposure.
The compact cabinet measures 23.6 x 13.2 x 1.5 inches (600 x 337.5 x 39.9 mm) and weighs just 8.8 lb (4 kg). Its slim construction supports low-profile fixed installations, while front serviceability allows technicians to access components without requiring maintenance clearance behind the video wall. Direct wall-mount compatibility further simplifies integration into professional indoor display environments where installation depth and available space are important considerations.
| Brand | BrightBox |
| Name | JMAZ Onubis 1.2 by BrightBox (BB2012) |
| Primary Category | Indoor COB LED Video Wall Panel |
| Depth | 1.5 in (39.9 mm) mm |
| Dimensions | 23.6 x 13.2 x 1.5 in (600 x 337.5 x 39.9 mm) |
| Height | 13.2 in (337.5 mm) mm |
| Mounting Options | Direct Wall Mount |
| Weight | 8.8 lb (4 kg) kg |
| Width | 23.6 in (600 mm) mm |
| IP Rating | IP54 Front |
| LED Type | COB (Chip-on-Board) |
| Lumen Output | 600 nits nits |
| Physical Controls | Front serviceability |
| Pixel Pitch | 1.2mm mm |
| Warranty Length | ETL, FCC, RoHS, CE years |
