JMAZ Osiris 3.9 Fixed by BrightBox (BB1003) | 3.9m...
$599.95

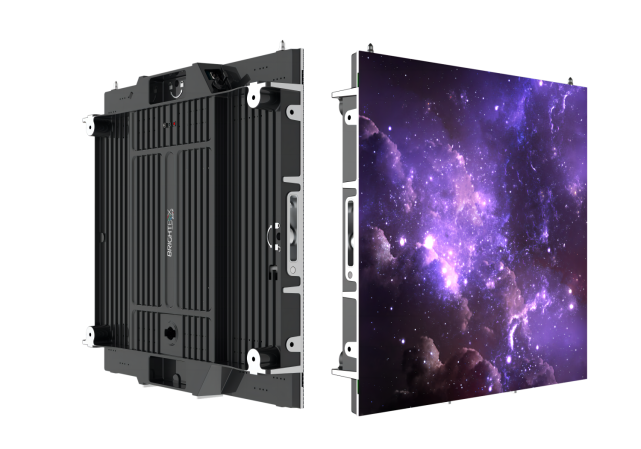

The JMAZ Osiris 3.9 Fixed by BrightBox (BB1003) is a 500 x 500mm indoor LED video wall panel designed for permanent installations requiring bright visuals, flexible mounting, and convenient front access. Featuring a 3.9mm pixel pitch, 900-nit brightness, and a refresh rate of at least 3840Hz, this slim LED panel delivers clear graphics and smooth video for entertainment venues, retail displays, corporate environments, houses of worship, and digital signage applications.
The JMAZ Osiris 3.9 Fixed by BrightBox (BB1003) combines a 3.9mm pixel pitch with a native resolution of 128 x 128 pixels, providing 16,384 pixels in each 500 x 500mm cabinet. Its SMD2020 LED configuration produces detailed graphics, advertising content, text, and video across modular indoor video wall systems.
With 900-nit brightness, the panel provides strong visual output for venues, retail environments, and other well-lit indoor spaces. A refresh rate of at least 3840Hz supports smooth motion reproduction and helps minimize visible flicker during livestreams, recorded presentations, and camera-facing productions. Its 16-bit grayscale capability supports smooth color and brightness transitions.
The compact cabinet measures 19.6 x 19.6 x 2.4 inches (500 x 500 x 63 mm) and weighs 15.2 lb (6.9 kg). Its slim construction makes it suitable for space-conscious installations, while front serviceability provides convenient component access without requiring maintenance space behind the video wall.
Direct wall-mount and hang-mount compatibility allow the panel to be integrated into a variety of fixed display configurations. With IP30 front protection, IP20 rear protection, and ETL, FCC, RoHS, and CE certifications, the Osiris 3.9 Fixed is designed for professional indoor installations including corporate displays, entertainment venues, houses of worship, and commercial digital signage.
| Brand | BrightBox |
| Name | JMAZ Osiris 3.9 Fixed by BrightBox (BB1003) |
| Primary Category | Fixed Indoor LED Video Wall Panel |
| Control Interfaces | NovaStar |
| Depth | 63 mm mm |
| Dimensions | 500 x 500 x 63 mm mm |
| Height | 500 mm mm |
| Mounting Options | Direct Wall Mount or Hang Mount |
| Weight | 6.9 kg kg |
| Width | 500 mm mm |
| IP Rating | IP30 Front / IP20 Rear |
| LED Type | SMD2020 |
| Lumen Output | 900 nits nits |
| Power Consumption | 200W W |
| Pixel Pitch | 3.9mm mm |
| Warranty Length | 3 Years Years |
