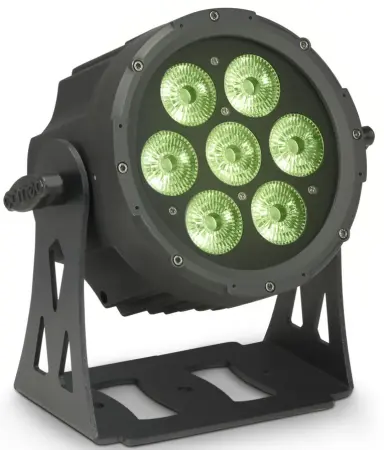

Cameo Lighting Flat Pro 7 XS

Compact, flat 7 x 8 Watt Quad LED PAR light
With only 130 mm depth, the compact Cameo FLAT PRO 7 XS is ideal when space is limited. The slim LED PAR can features 7 super bright 8 watt high performance LEDs for rich, flicker free RGBW colour mixing with temperature correction, a 3,600 Hz refresh rate and convection cooling for noiseless operation. Beam width is 20°.

Sporting 6 DMX modes as well as standalone, master and slave modes, a built-in microphone for sound activation plus strobe, colour fade and dimmer functions, the thoroughly professional FLAT PRO 7 XS is RDM enabled for bi-directional communication.

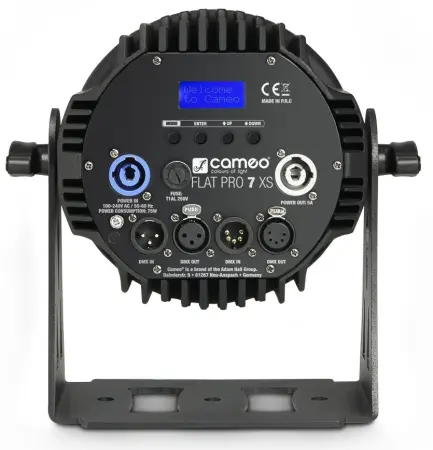

The black metal enclosure incorporates a backlit 4-button display, both 3-pin and 5-pin DMX inputs and outputs as well as Neutrik powerCON sockets for 100 – 240 V AC mains and easy daisy-chaining. The Cameo FLAT PRO 7 XS fixture's multifunctional bracket provides a wide variety of mounting options.

Features:

7 super bright 8 W high performance LEDs
Highly efficient convection cooling for noiseless operation
RGBW for flexible color mixes from rich solid tints to pastel hues
3 temperatures of white from warm to cool white
RDM enabled
Color temperature correction
4 selectable dimming curves
Flicker free
Professional connectivity with 3 and 5-pin DMX plus Neutrik powerCON inputs and outputs
Rugged, compact metal enclosure with shallow depth

Specifications:

Product number: CLPFLATPRO7XS
Product type: LED PAR Lighting
Type: Indoor
Color spectrum: RGBW
Number of LEDs: 7
LED type: 8 W
Refresh rate: 3600Hz
Dispersion: 20°
DMX input: XLR 3-pin male, XLR 5-pin male
DMX output: XLR 5-pin female, XLR 3-pin female
DMX mode: 10-channel, 2-channel, 3-channel 1, 3-channel 2, 4-channel, 9-channel
DMX Functions: strobe, color macro, color jump, master dimmer, sound control, RGBW
Standalone modes: color fade, color jump, color macro, slave mode, sound control, static color
Controls: Value Up, Value Down, mode, Enter
Indicators: backlit LCD
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption: 75W
Power connector: Neutrik PowerCon
Housing material: metal
Cabinet color: Black
Cooling: Convection
Illuminance: 17000lx @ 1m

Dimensions without mounting bracket
Width: 180mm
Height: 180mm
Length: 130mm
Weight: 3.5kg

Cameo Flat Pro 7xs (Cameo Lighting CLPFLATPRO7XS)
