Professional 12 x 12 W RGBWA+UV LED Bar

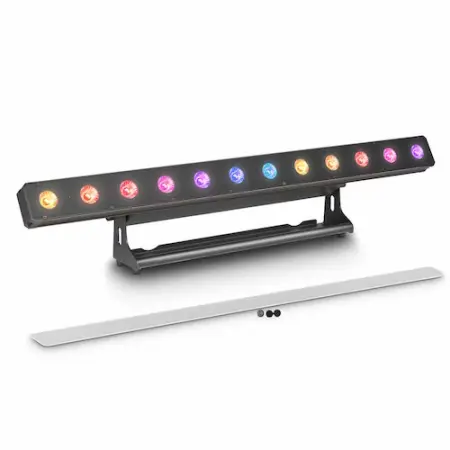

The Cameo PixBar 600 PRO is a wide-angle, convection-cooled LED bar for professional use, equipped with 12 super-bright 12 Watt RGBWA+UV LEDs. It operates absolutely noiselessly and is flicker-free due to its high refresh rate of 3,000 Hz.
In addition to the almost unlimited range of colours that can be varied in temperature as well as the macros that are aligned with LEE filters, the PixBar offers 3 shades of white and 4 selectable dimmer curves. With the Single Pixel Control, all LEDs can also be individually adjusted to achieve impressive Chase effects.
The fully RDM-enabled PixBar 600 PRO can communicate bidirectionally with RDM-controllers, to provide the address, status, and all parameters of the device. Naturally, the light bar can also be controlled via the standard DMX protocol in 7 control modes or used as a standalone, master and slave; it features 14 automatic modes and a built-in microphone for sound control. A backlit display and 4 buttons are used for manual operation.
The aluminium housing of the Cameo PixBar 600 PRO is equipped with both 3- and 5-pin input and output sockets for the DMX-signal, as well as with Neutrik Powercon mains connectors. The light bar can be used with all mains voltages from 110 to 240 volts and comes with a mounting bracket and a frost filter to provide a uniform, glare-free light.
Features:
12 ultra-bright 12 W RGBWA+UV LEDs
Single Pixel Control for effective Chase effects
Silent operation thanks to convection cooling
Flicker-free
Professional 3- and 5-pin DMX sockets and Neutrik powerCon mains connector
Fully RDM-enabled
7 DMX modes plus operation as a standalone, master or slave
Diffusing lens for uniform, glare-free light
4 adjustable dimmer curves
Colour temperature correction
3 preset shades of white: warm white, cool white, white
Sturdy aluminium housing
Specifications:
Product number: CLPIXBAR600PRO
Product type: LED Bars
Type: Indoor
Colour spectrum: RGBWA+UV
Number of LEDs: 12
LED type: 12 W
Dispersion: without frost filter 1120lx (single LED) 23°, with frost filter 600lx (single LED) 41°
Refresh rate: 3000Hz
DMX input: XLR 5-pin male, XLR 3-pin male
DMX output: XLR 3-pin female, XLR 5-pin female
DMX mode: 6-channel 1, 6-channel 2, 74-channel, 78-channel, 8-channel, 12-channel, 2-channel
DMX Functions: auto programs, strobe, Single Pixel Control, Colour temperature correction, Dimmer, colour macro
Standalone modes: static colour, auto programs, strobe
Controls: Value Down, mode, Value Up, Enter
Indicators: LC display
Operating voltage: 110 V AC - 240 V AC / 50 – 60 Hz
Power consumption: 160W
Power connector: Neutrik PowerCon
Housing material: die-cast aluminium
Cabinet colour: Black
Dimensions without mounting bracket
Width: 900mm
Height: 120mm
Depth: 75mm
Dimensions of the mounting bracket (incl. rubber feet): 495 x 140 x 100mm
Weight: 6kg
