DMX Node with LTC, MIDI & 10Scene Support
ChamSys GeNetix GN5 is a multi-purpose DMX and data distribution node with 5 RDM-capable DMX ports, dual network ports, and extensive protocol support including Art-Net, sACN, MIDI, LTC, and ChamNet. Ideal for lighting professionals, it enables flexible remote control and show synchronization in a wide range of live and installed environments.
ChamSys GeNetix GN5 Competitive Differences
- 5 configurable DMX ports with input/output and RDM support
- Unlocks full MagicQ PC functionality via USB or network
ChamSys GeNetix GN5 Description
The

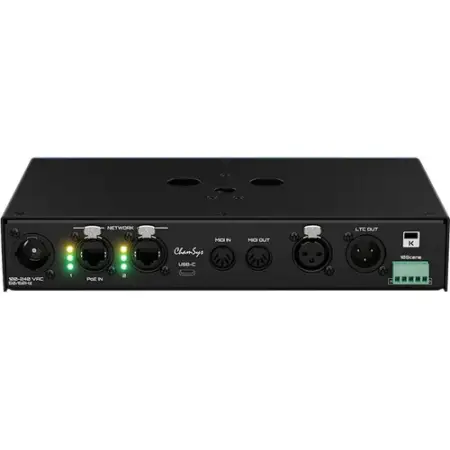

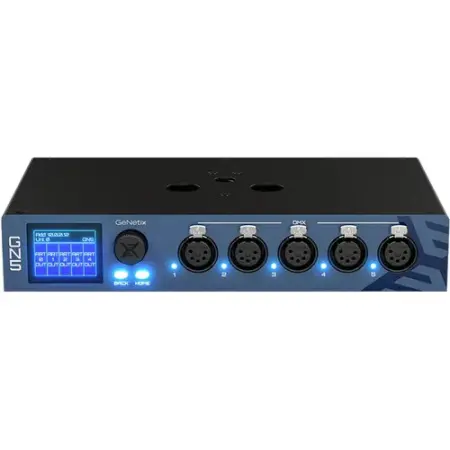

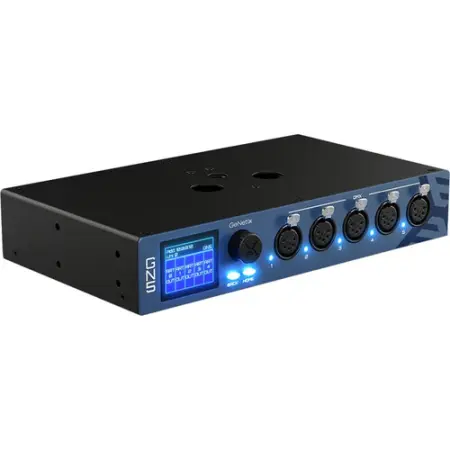

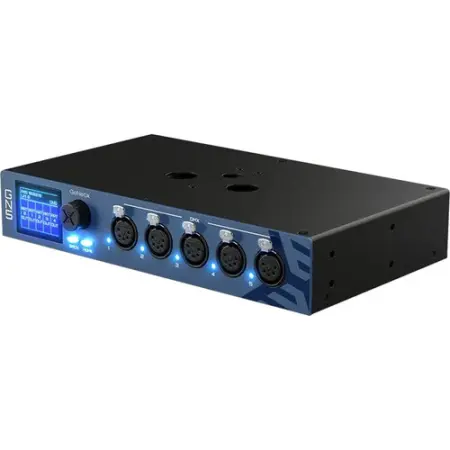

ChamSys GeNetix GN5 is built for reliable remote data distribution, featuring five fully configurable DMX ports (input or output), dual network ports (with PoE support), and connectivity options for Timecode, MIDI, and 10Scene integration. It's engineered for professional-grade versatility — mount it on truss via M12 receiver, install with a DIN rail, or rack-mount it using the included ears.
Its LTC and MIDI ports enable real-time sync with lighting and AV systems, while full support for Art-Net timecode ensures compatibility across platforms. When connected to MagicQ PC via USB, the GN5 acts as a complete unlock interface — enabling full access to MagicQ software features and making it a valuable solution for control systems on Windows, macOS, or Linux.
A web server and onboard display provide local or remote configuration access, and it supports scene recall via UDP, DMX redundancy, and custom DMX timing. With ChamNet support and robust build quality, the GN5 offers both flexibility and reliability for live shows, studios, installations, and touring.
Model Features
- 5 RDM DMX ports, each configurable as input or output
- Dual network ports with Art-Net, sACN, and ChamNet support
- LTC and MIDI ports for timecode and note sync
- USB-C port enables full MagicQ PC unlock
- Built-in web server and display for flexible configuration
- 10Scene gateway functionality with dedicated port
- PoE or mains power via powerCON TRUE1 input
- DMX redundancy and user scene storage
Model Specifications
- DMX Ports: 5 (RDM capable, configurable I/O)
- Network Ports: 2 (PoE on Port 1)
- MIDI Ports: 2 (1 in, 1 out)
- LTC Ports: 2 (1 in, 1 out)
- 10Scene Port: 1
- USB Ports: 1 USB-C
- Power Input: Neutrik powerCON TRUE1 (110–240VAC)
- Max Power: 60W
- Width: 250mm (9.84 in)
- Depth: 172mm (6.77 in)
- Height: 44.4mm (1.75 in)
- Weight: 1.4 kg (3.08 lb)
What's In The Box
- ChamSys GeNetix GN5 Node
- DIN rail mount clip
- Rack mount ears (2)
- Neutrik powerCON TRUE1 power cable
- USB A to C cable
- Phoenix connectors (2)
- Screws (8 + 3 countersunk)
- Quick start guide
CHAMSYS GENETIXGN5
(ChamSys GeNetix GN5 Node)
