ChamSys QuickQ 10

9.7in Touchscreen Lighting Console

$2,449.00 In Stock!
$0 Tax $0 Shipping $39 Back or Join VIP for upfront discounts.

(more)

Compact Lighting Control Console

ChamSys QuickQ 10 is a user-friendly lighting console built for smaller rigs and newer operators, offering intuitive control for dimmers and LED fixtures. With a 9.7-inch multi-touch display and smartphone-style interface, it simplifies setup, programming, and playback—making it an ideal solution for schools, churches, small theaters, and mobile productions.

ChamSys QuickQ 10 Competitive Differences

  • 9.7in multi-touch display with intuitive smartphone-style interface
  • In-built Wi-Fi for remote app control via iOS and Android devices

ChamSys QuickQ 10 Description

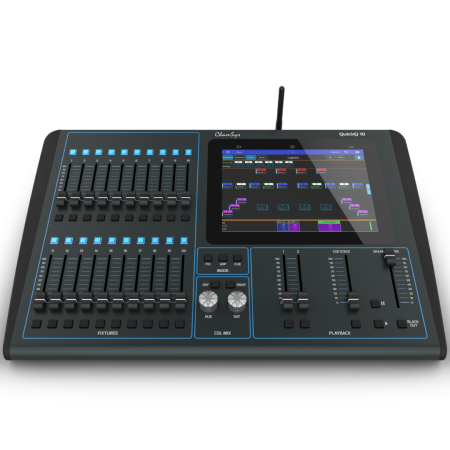

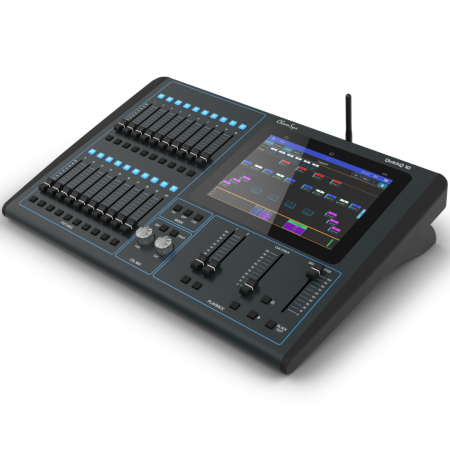

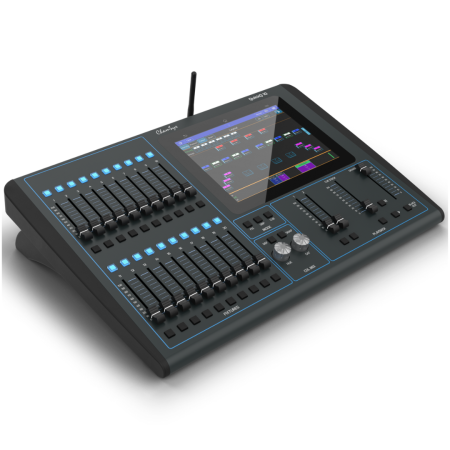

The QuickQ 10 is designed for ease of use, especially for lighting beginners or smaller venue operators. The console features 20 multi-function faders for fixture, group, and cue control, and 3 playback faders (2 for chases, 1 for cue stack), all labeled on-screen for clear operation. A dedicated Grand Master fader gives you full control over output levels, while the color control area with Hue/Saturation encoders and built-in color picker streamlines LED color mixing. The 9.7" multi-touch display supports gesture control like pinch-to-zoom and scrolling, and includes an on-screen pan/tilt trackpad and built-in FX generator. The console supports one DMX universe via 5-pin XLR and adds ArtNet/sACN/Pathport output via the network port. With built-in Wi-Fi, you can connect to the free QuickQ app for remote control—just scan the on-screen QR code. The console is compatible with ChamSys' offline designer software for Mac and Windows, allowing you to program shows in advance and load them via USB.

Model Features

  • 9.7" multi-touch screen with gesture support
  • 20 multi-function faders with on-screen legends
  • 3 playback faders (2 chase, 1 cue stack)
  • Dedicated Grand Master fader
  • Hue/Saturation encoders and built-in color picker
  • Supports DMX, ArtNet, sACN, and Pathport
  • Wi-Fi control with free app for iOS/Android/Windows
  • Compatible with QuickQ and MagicQ software platforms

Model Specifications

  • Universes Supported: 1
  • Max DMX Channels: 512
  • Max Fixtures Supported: 512
  • Cue Stacks: 1
  • Chases: 2

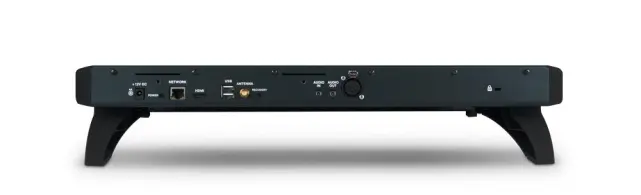

  • DMX Output: 1 x 5-pin XLR
  • Network Port: 1
  • USB Ports: 2
  • Audio Input: 1
  • Audio Output: 1 (enabled via future update)
  • External Monitor Support: 1920 x 1080 HDMI
  • Power Consumption: Max 60W
  • Console Dimensions: 20.7 x 13.8 x 4.2 in (525 x 350 x 106 mm)
  • Console Weight: 8.97 lb (4.07 kg)
  • Boxed Dimensions: 26.8 x 16.5 x 9 in (680 x 420 x 230 mm)
  • Boxed Weight: 17.63 lb (8 kg)
  • Flightcase Dimensions: 25.6 x 19.3 x 8.3 in (650 x 490 x 210 mm)
  • Flightcase Weight: 35.27 lb (16 kg)

What's In The Box

  • ChamSys QuickQ 10 Console
  • 12V Power Supply
  • IEC Power Cable
  • Wi-Fi Antenna
  • USB Desk Light
  • Dust Cover
  • Tablet Stand

Chamsys CHAMQUICKQ10 (ChamSys QuickQ10)

Brand ChamSys
Name ChamSys QuickQ 10
Primary Category Lighting Console

Connectivity Protocols DMX, ArtNet, sACN, Pathport, Wi-Fi
Power Consumption Max 60W W

Control Interfaces 20 multi-function faders, 3 playback faders, Grand Master fader, Hue/Saturation encoders, built-in color picker, on-screen pan/tilt trackpad, built-in FX generator
Screen / Display 9.7in multi-touch display with gesture support inch
Wireless Capabilities Built-in Wi-Fi for remote app control via iOS and Android devices

Dimensions 20.7 x 13.8 x 4.2 in inches
Included Accessories 12V Power Supply, IEC Power Cable, Wi-Fi Antenna, USB Desk Light, Dust Cover, Tablet Stand
Weight 8.97 lb lb

Supported Software QuickQ and MagicQ software platforms

Warranty Length Not specified years

The QuickQ 10 offers an intuitive and compact lighting control solution ideal for beginners and smaller venues. Its multi-touch display, extensive fader controls, and built-in Wi-Fi for remote app control simplify setup and operation, making it perfect for schools, churches, small theaters, and mobile productions.

The console uses a 9.7-inch multi-touch screen with gesture support and multiple faders to control dimmers and LED fixtures. It supports DMX and network protocols for lighting control and connects via built-in Wi-Fi to a free app for remote operation. Programming can be done offline with compatible software and loaded via USB.

The QuickQ 10 combines a smartphone-style multi-touch interface with 20 multi-function faders and built-in Wi-Fi for remote app control. Its compatibility with both QuickQ and MagicQ software platforms and support for multiple lighting protocols make it a versatile and user-friendly console for smaller lighting setups.

9.7-inch multi-touch screen with gesture support; 20 multi-function faders with on-screen legends; 3 playback faders (2 chase, 1 cue stack); Dedicated Grand Master fader; Hue/Saturation encoders and built-in color picker; Supports DMX, ArtNet, sACN, and Pathport; Wi-Fi control with free app for iOS/Android/Windows; Compatible with QuickQ and MagicQ software platforms.

Supports 1 DMX universe; Max 512 DMX channels; Max 512 fixtures supported; 1 cue stack; 2 chases; DMX output via 1 x 5-pin XLR; Network port; 2 USB ports; Audio input and output (output enabled via future update); External monitor support up to 1920 x 1080 HDMI; Max power consumption 60W; Console dimensions 20.7 x 13.8 x 4.2 inches; Console weight 8.97 lb.

ChamSys QuickQ 10 Console, 12V Power Supply, IEC Power Cable, Wi-Fi Antenna, USB Desk Light, Dust Cover, Tablet Stand.
