Lighting Control Console for LED & Moving Lights

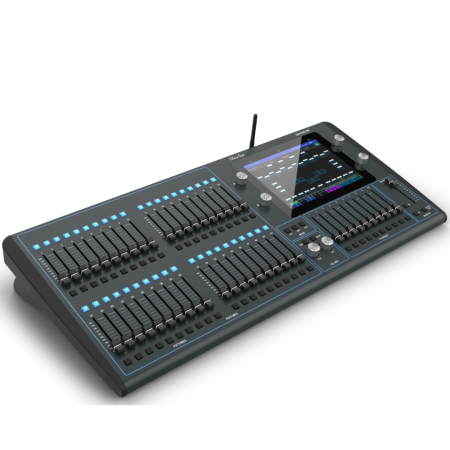

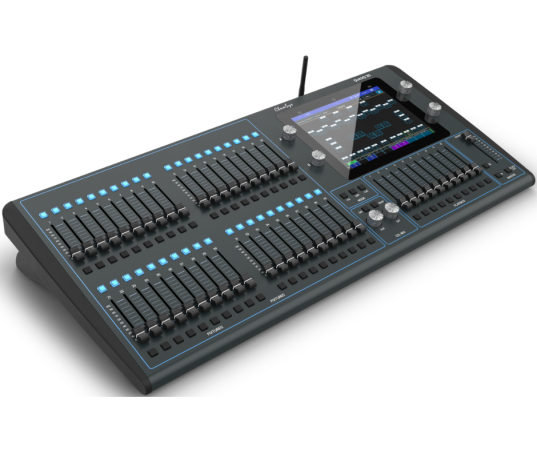

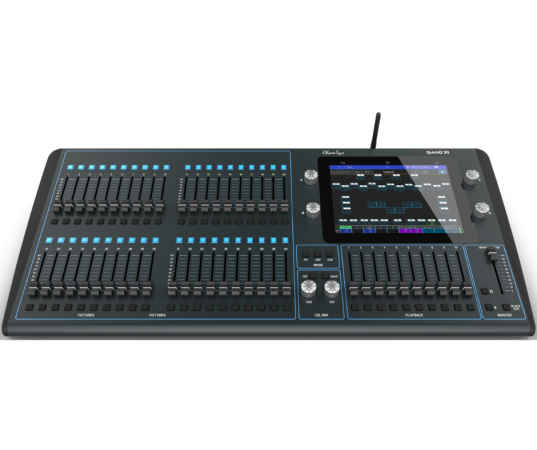

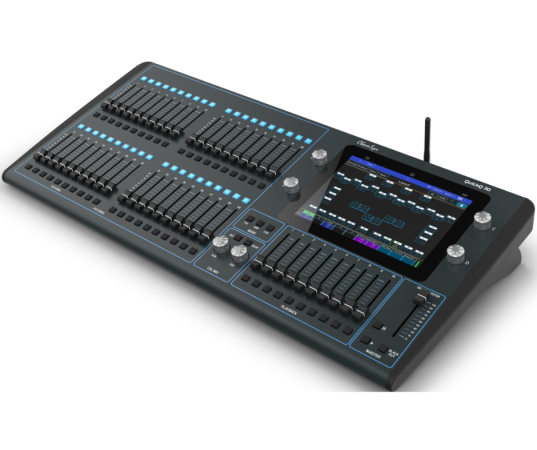

ChamSys QuickQ 30 is a powerful and easy-to-use lighting console built for control of dimmers, LED color-mixing fixtures, and moving heads. It features a 9.7" multi-touch display with a smartphone-style interface, enabling intuitive setup, programming, and playback—making it ideal for medium to large venues, schools, churches, and event productions.
ChamSys QuickQ 30 Competitive Differences
- 40 fixture faders and 10 playback faders for extensive live control
- Supports 4 universes via DMX and ArtNet/sACN/Pathport networking
ChamSys QuickQ 30 Description
The
QuickQ 30 console offers a comprehensive lighting control solution while maintaining an interface accessible to beginners. With 40 multi-function faders and 10 playback faders, it’s tailored for full control over dimmers, RGB fixtures, and intelligent lights. A dedicated Grand Master fader ensures overall control, while Hue/Saturation encoders and a built-in color picker make color adjustments fast and accurate.
The 9.7-inch multi-touch screen supports gesture controls and offers an intuitive layout based on familiar smartphone icons. Built-in Wi-Fi allows remote operation through the free QuickQ app for iOS, Android, and Windows devices—easily paired by scanning a QR code on the screen.
RDM autopatching, a vast fixture library, and an onboard FX generator help streamline show setup and programming. The console also supports remote triggering via OSC and, with future updates, will enable MIDI output and audio-triggered playback.
Whether you're programming complex scenes or managing live shows, the QuickQ 30 delivers professional-level control in a compact, approachable package.
Model Features
- 9.7" multi-touch screen with intuitive smartphone-style interface
- 40 multi-function faders for fixture, group, and cue control
- 10 playback faders with on-screen legends
- Dedicated Grand Master fader
- Built-in Wi-Fi for remote app control
- Hue/Saturation encoders and built-in color picker
- DMX and network output via ArtNet, sACN, and Pathport
- Offline editor with MagicVis visualizer for pre-show programming
Model Specifications
- Universes Supported: 4
- Max DMX Channels: 2048
- Max Fixtures Supported: 2048
- Cue Stacks: 10
- Chases: 10

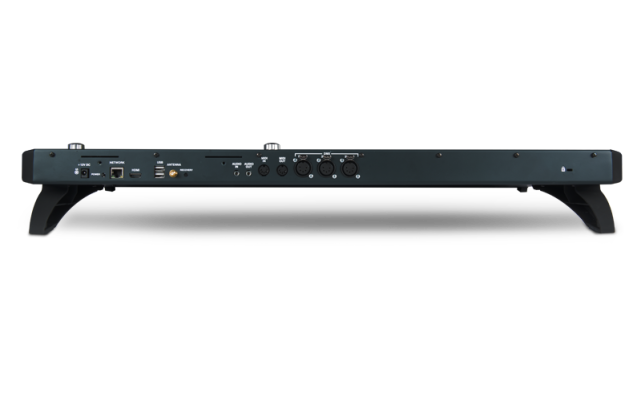

- DMX Outputs: 3 x 5-pin XLR
- Network Port: 1
- USB Ports: 2
- Audio Input: 1
- Audio Output: 1 (via future update)
- MIDI Ports: Yes (output enabled via future update)
- External Monitor Support: 1920 x 1080 HDMI
- Power Consumption: Max 60W
- Console Dimensions: 29.9 x 13.8 x 4.2 in (760 x 350 x 106 mm)
- Console Weight: 13.44 lb (6.1 kg)
- Boxed Dimensions: 35.4 x 16.5 x 9 in (900 x 420 x 230 mm)
- Boxed Weight: 22.04 lb (10 kg)
- Flightcase Dimensions: 33.8 x 19.3 x 8.7 in (860 x 490 x 220 mm)
- Flightcase Weight: 44.09 lb (20 kg)
What's In The Box
- ChamSys QuickQ 30 Console
- 12V Power Supply
- IEC Power Cable
- Wi-Fi Antenna
- USB Desk Light
- Dust Cover
- Tablet Stand
