All-in-One Wash Lighting System
The

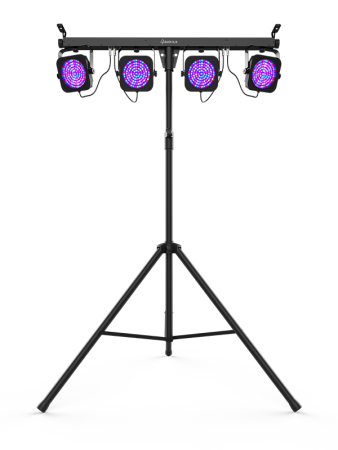

Chauvet DJ 4BAR ILS is a complete, ready-to-go wash lighting solution built for mobile performers, DJs, and entertainers. It features four fully adjustable LED wash heads mounted on a single bar and includes a tripod, wireless footswitch, and carry bags for ultra-fast setup and teardown. With built-in ILS and D-Fi USB compatibility, the 4BAR ILS takes versatility to the next level by enabling seamless syncing with other compatible fixtures.
Chauvet DJ 4BAR ILS Competitive Differences
- Complete lighting kit with bar, tripod, footswitch, and bags
- ILS + D-Fi USB compatibility for advanced wireless control
Chauvet DJ 4BAR ILS Description
The
4BAR ILS system is ideal for performers and mobile setups that demand quick deployment and broad coverage. Each of its four heads can be independently aimed to optimize lighting across any stage, dance floor, or venue. With 432 RGB LEDs (144 per color), it delivers strong color mixing and reliable output, while remaining compact and lightweight.
The inclusion of ILS (Instant Light Shows) means the 4BAR ILS can be wirelessly synced with a full ecosystem of ILS-compatible fixtures, streamlining complex light show programming. D-Fi USB compatibility allows wireless DMX or master/slave control when paired with a D-Fi USB dongle (sold separately). Manual and sound-active modes are also available, with control options via IRC-6 remote or the included footswitch.
Whether you're uplighting a room, energizing a stage, or coordinating with a larger lighting rig, the
Chauvet 4BAR ILS provides intuitive control, reliable output, and a hassle-free setup every time.
Model Features
- 4x adjustable RGB LED wash heads mounted to single bar
- 432 total LEDs (144 red, 144 green, 144 blue)
- ILS compatibility for synchronized lightshows
- D-Fi USB compatible for wireless DMX (dongle sold separately)
- Sound-active, auto programs, or static color control
- Includes tripod, footswitch, and carrying bags
- Fast setup/teardown for mobile entertainers
- Master/slave mode for syncing multiple 4BARs
- Optional IRC-6 remote for wireless color and FX control
Model Specifications
- DMX Channels: 3, 5, or 15
- DMX Connectors: 3-pin XLR
- Light Source: 432 LEDs (0.25W each) – 144 red, 144 green, 144 blue
- Strobe Rate: 0 to 19.9 Hz
- Beam Angle: 17°
- Field Angle: 24°
- Illuminance: 786 lux @ 2 m (per pod)
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power & Current:
- 29 W, 0.4 A @ 120 V, 60 Hz
- 27 W, 0.2 A @ 230 V, 50 Hz
- Fixture Size: 43.3 x 2 x 10.5 in (1,100 x 50 x 267 mm)
- Fixture Weight: 11 lb (5.0 kg)
- Stand Height: Up to 7 ft 4 in (2.2 m)
- Controller Weight: 1.2 lb (0.6 kg)
- Controller Size: 12.4 x 5.2 x 1.5 in (315 x 132 x 38 mm)
- Fits Tripod Sizes: 1.37 in (35 mm)
- Approvals: CE, RoHS, UKCA
- Optional Controllers: IRC-6, D-Fi USB

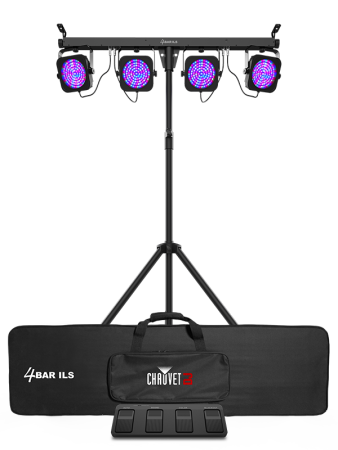

What's In The Box
- 4BAR ILS fixture
- Power cord
- Carrying bag
- Tripod
- Tripod carrying bag
- Wireless footswitch
- Quick reference guide
Chauvet 4 BAR ILS
(Chauvet DJ 4Bar ILS)
